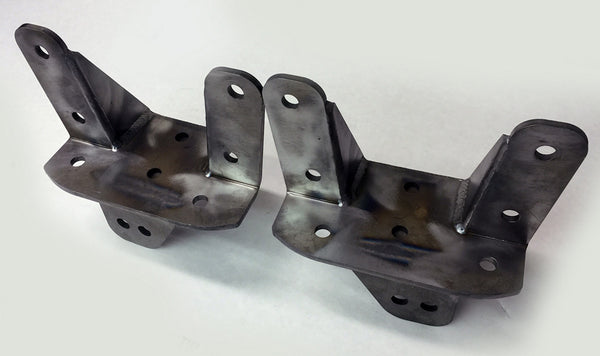

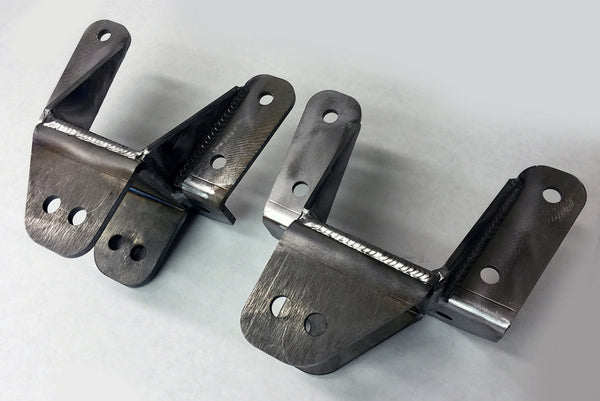

80-97 Ford Front Suspension Shackle Hanger Kits

-Rear hanger for the front spring.

-Much stronger than the factory part.

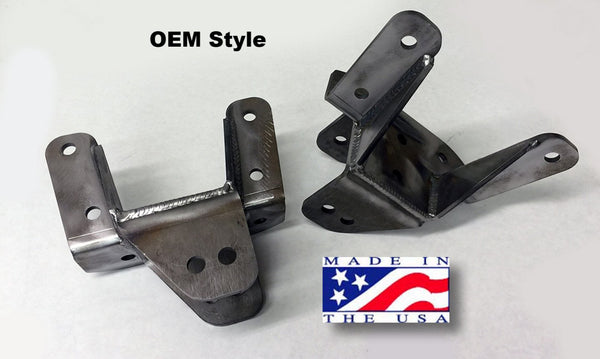

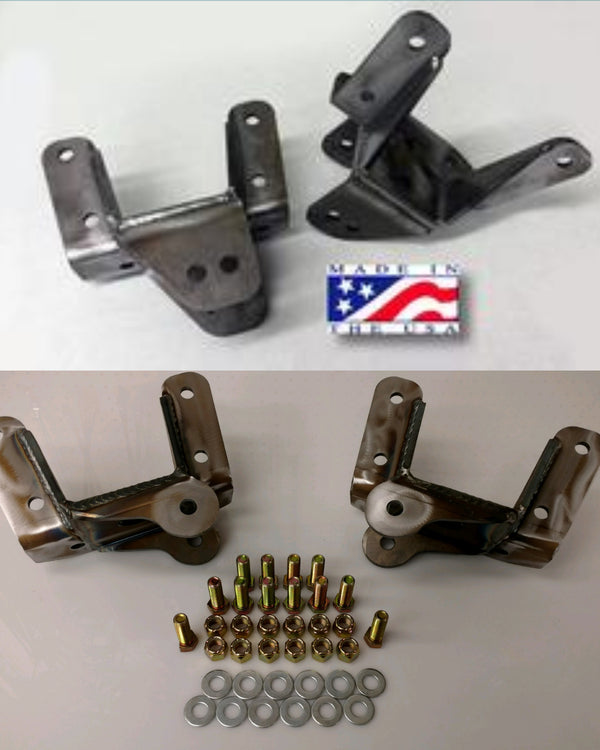

-OEM Style is a direct replacement for the Ford factory bracket and 3-5" reversal shackles.

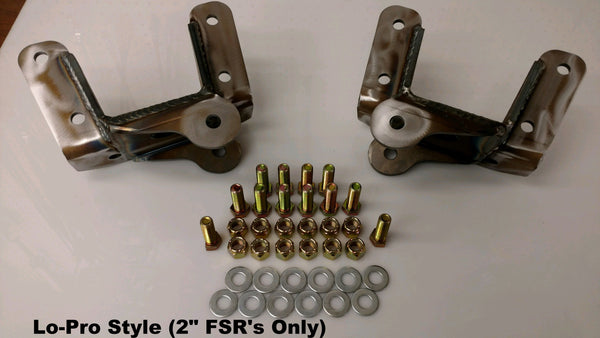

-Lo-Pro Style is designed to work with our 2" Shackle Reversal shackles only!

-Designed with forward mounting holes to help shackle angle with lift springs.

-Brackets are fixture welded at the correct offset to compensate for the factory frame angle. 1/4" laser cut PnO steel.

Sold as a pair

Application:

-Truck: 80-97 4wd Ford F250/350

Additional Information:

OEM Style brackets have a 9/16" hole in the stock location and another 1" forward. This replaces Ford-EOTZ-5340-A and -B. These are used in our 4" FSRSD kit.

Lo-Pro's have a hole 1" forward and 1" Up of factory, only to be used with our 2" shackles. These are used in our 2" FSRSD and FSROB-003 kits.

Offset Lo-Pros are offset to match the 37.5" spring pin center of the 99-04 Superduty Dana 60/50. These are used in our FSRSDAL and PNSDAL kits.

This provides a better angle of the shackle when used in a shackle reversal system helping release tension on the spring increasing ride quality even more than just the standard shackle reversal currently gains. Basically it adds to the angle of the shackle instead of a near vertical position. This kit will also help those who have aftermarket springs that are slightly shorter than the factory spring gain a decent shackle angle.
