Dana 44 High Steer Arm

Sky Manufacturing has been producing our Dana 44 Tall Steering arm for over 12 years now!

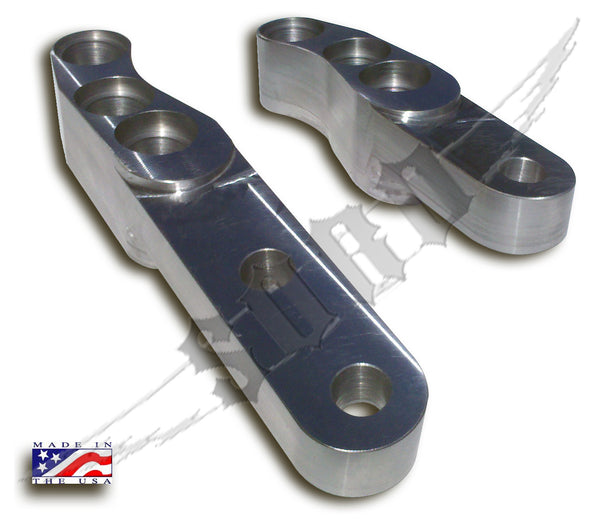

This Dana 44 high steer arm is 7/8" of an inch taller than a standard Dana 44 steering arm, putting the TOP of these arms at 1.875" from the top of your flat-top knuckle. It has been designed and machined out of ASTM A572 Grade 50 steel to fit leaf sprung vehicles, without the use of spacers. It retains a short stud as well, making the install stronger than long stud kits. The arms are available in a long passenger side 2 hole, and a short single hole driver side. Arms are tapered for Chevy/GM tie rod end taper on tie rod and drag link positions. Common ends are 2010L-2234R and use factory style conical washers, These arms have the correct parallel angle machined to set the tie rod surface flat with the axle.

Knuckle machining runs $45 if you need it.

Steering arm dimensions 4 3/4" from center stud to tie rod eye, 7 1/8" from center stud to drag link eye.

Our steering arms are CNC machined out of ASTM A572 Grade 50 steel. Grade 50 is a very strong low allow steel that fulfills our exceptionally high strength requirements, and is particularly strong for applications in which it is riveted or bolted. ASTM A572 Grade 50 is considered a "workhorse" grade and is widely used in many applications. Steel mills produce channel and heavy beams with Grade 50. It is commonly used in structural applications, heavy construction equipment, building structures, heavy duty anchoring systems, boom sections, structural steel shapes, and applications that require high strength per weight ratio.
*Tensile strength: 65,000 psi
*Yield strength: 50,000 psi

Please select from the options above! Note: Arms are sold ea $99 or as a set x 2 for double the money!

Sky Manufacturing alloy heat treated black oxide studs-install kits sold separately below
Manufactured in Oregon!
