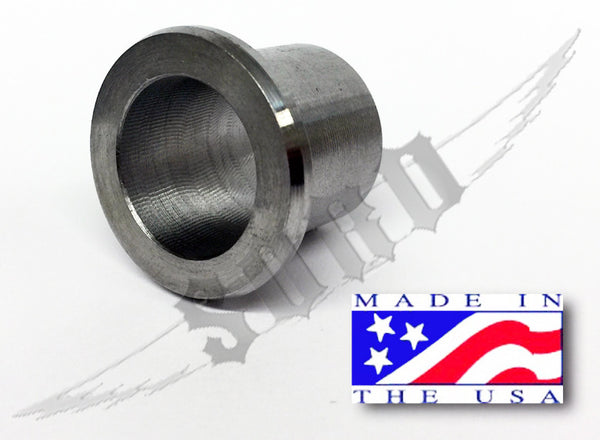

Description: These Cnc machined weld in tapered sleeves can be used to fix wallowed out tie rod end holes in Ford Steering knuckles, or to convert a knuckle, steering arm or pitman arm to fit common GM 3/4 or 1 ton tie rod ends. This taper is a match for 73-87 GM 1 Ton tie rod ends as well as some 70's Ford 3/4 and 1 tons, and some 70's - 90's Dodge 3/4 and 1 ton tie rod ends. Fits ES2010L/R ends or our TK234 HD ends used in our steering kits. These are a common mod on Jeep Dana 30's, Jeep JK and Classic Broncos, 80-97 Fords.
Specs: Taper 1.5"/Foot .750" Major 0.650" Minor
0.875" OD , 1.153" OD of flange, 0.145" Flange Thickness 0.900" OAL
Made in the USA from 1020 DOM Steel bar.
Sold individually
Instructions:
To install drill hole out to 0.875" OD and counter sink flush, then weld in.
Related to the Knuckle Taper Sleeve for GM Tie Rod Ends
