F250 2.5" FSR COMPLETE KIT For TTB Dana 50

Provides much better ride than stock by moving shackle to rear of spring.
Eliminates the weak front shackle design.
Will level a factory F-250

Includes NEW Sky's TTB Drop brackets to maintain proper camber

Application:

    -Truck: 92-97 Ford F-250 with Dana 50 TTB (Fits models with 4 bolt mounting. Some 1997 models use 5 bolt mounting from the factory these will require part #20853)
    -Spring: 85-97 Stock 52"  F-250 Leaf Springs

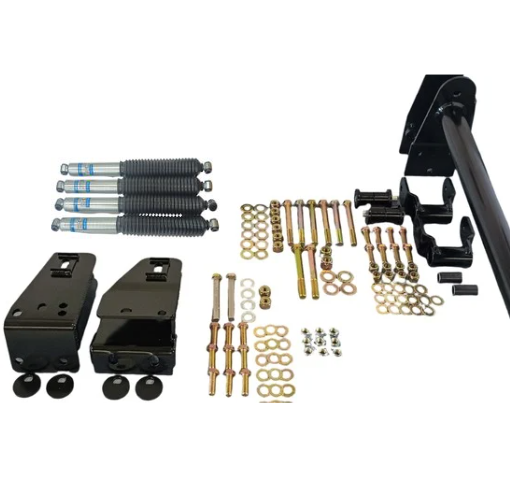

    Includes:

    2" Shackle Reversal Kit FORD-FSR-002 (2.5" lift if you skip step 11)

    Sky's 2.5" TTB Drop Brackets

    Longer Bilstein Shocks (2) SHOCKS-BIL6248

    Instructions:

    F250 2" FSR instructions



    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    D
    Darrell Bartlett
    1996 F250 4X4

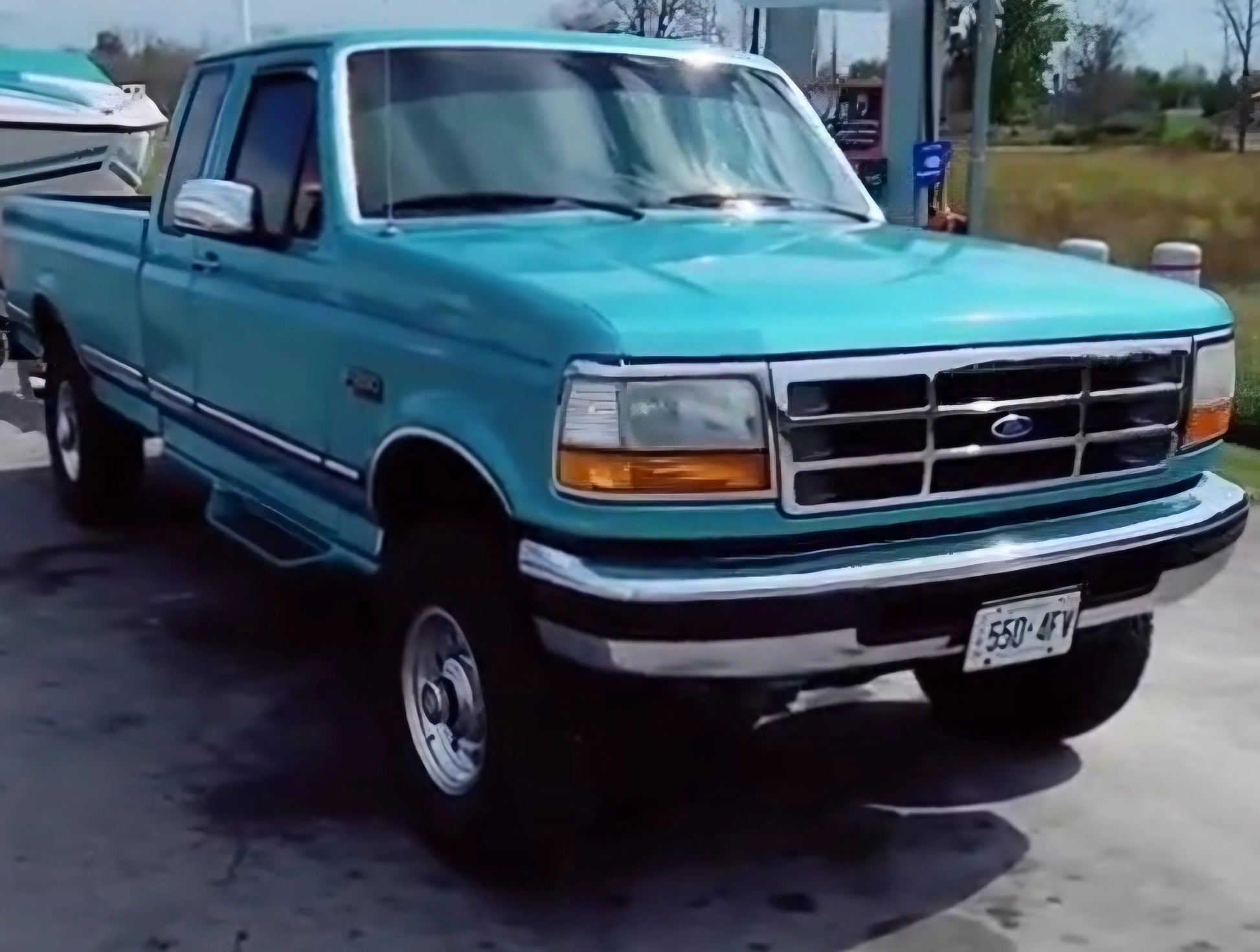

    I have a 1996 F250 extended cab 4 X 4 with the Dana 50 TTB front end. After disassembly we welded in the 92-97 F-250 / F-350 Frame Reinforcement Kit. Then installed the 2" Shackle Reversal Kit FORD-FSR-002 and the TTB Drop Brackets Tuff Country 20852 along with new OEM leaf springs with hardware and the Longer Bilstein Shocks (2) SHOCKS-BIL6248. The use of a hoist made the installation easy.
    Also wanted to keep my front sway bar. Ordered the 85-97 F350 Sway Bar End Link Extensions for 2-4" Lift. This only cleared the leaf springs by 1/32” so cut ½” off the two front mounts, welded and installed them to make a ½” clearance over the leaf springs.
    The kit leveled the front with the rear and smoothed out the ride. Very happy with the way it turned out.
