Toyota Hilux Rear Disc Brake Con. Rotors

Toyota Hilux Rear Disc Brake Conversion Rotors

SKU: TOY-RDR-001

Finish your Sky’s Toyota rear disc brake conversion with the correct rotors, machined specifically for your Toyota axle.

This conversion follows the tried-and-true Toyota rear disc brake conversion design that has been used since the early 1990s. Sky’s starts with heavy-duty GM-style vented brake rotors and machines them specifically for the Toyota 6-lug axle application.

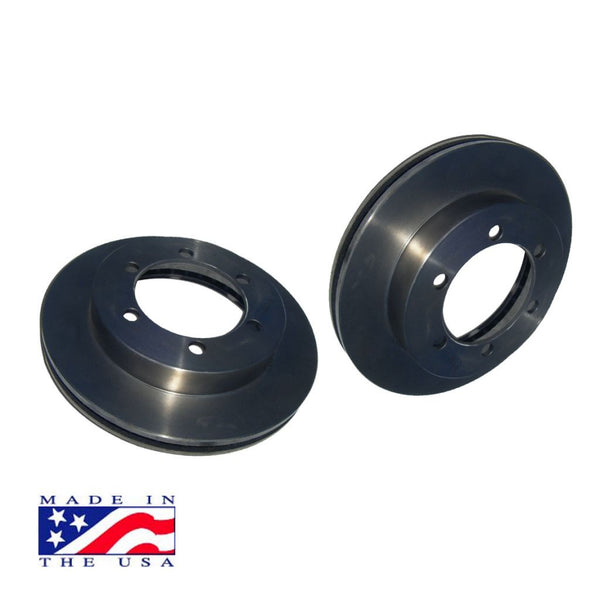

Rotor Specifications

• 1" thick vented rotor
• 6 x 5.5" Toyota lug pattern
• GM-origin rotor based on the 1988–1994 GM light-duty 1/2-ton application
• Precision machined by Sky’s for the selected Toyota axle
• Vented design for improved heat dissipation
• Not cross-drilled
• Sold as a pair — enough for one rear axle

Choose Your Axle / Hub-Centric Size

1979–1985 Toyota Hilux / Pickup
Machined for the 3.6" hub-centric Toyota axle.

1986–1995 Toyota Pickup / 4Runner
Machined for the 4.2" hub-centric Toyota axle.

1995.5–2004 Toyota Tacoma
May fit applicable 6-lug rear axle applications using the 4.2" hub-centric configuration. Verify your axle and hub dimensions before ordering.

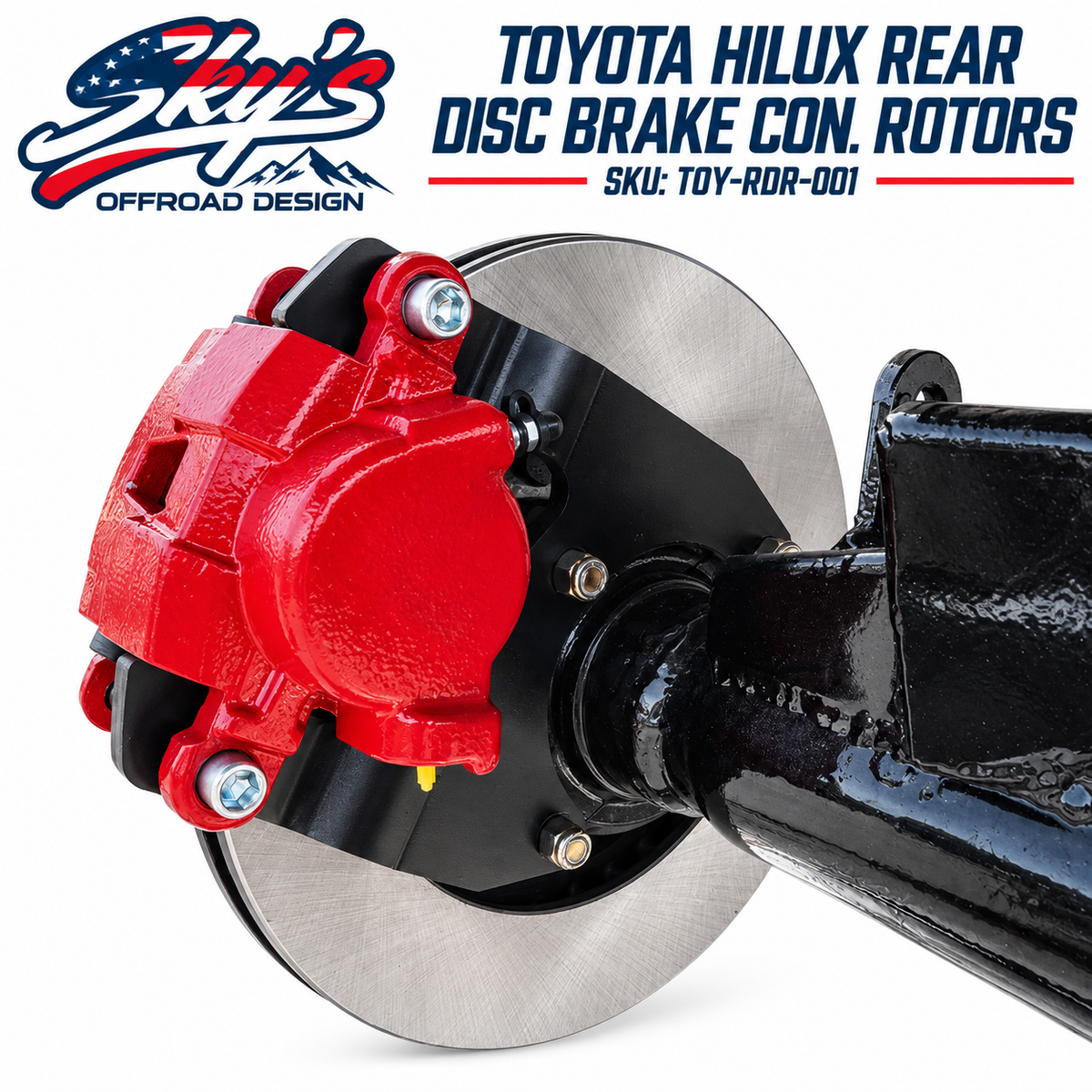

Designed for the Sky’s Disc Brake Conversion

These are the modified rotors used with the Sky’s Toyota Rear Disc Brake Conversion. Rather than requiring the customer to source a GM rotor and have it modified locally, Sky’s supplies the rotors already machined for the selected Toyota axle.

Please specify the year of your axle when ordering. Axle year—not necessarily the vehicle model year—is what determines which rotor machining configuration you need.

Sold in pairs.

Sky’s Offroad Design — Precision Parts / Proven Performance
