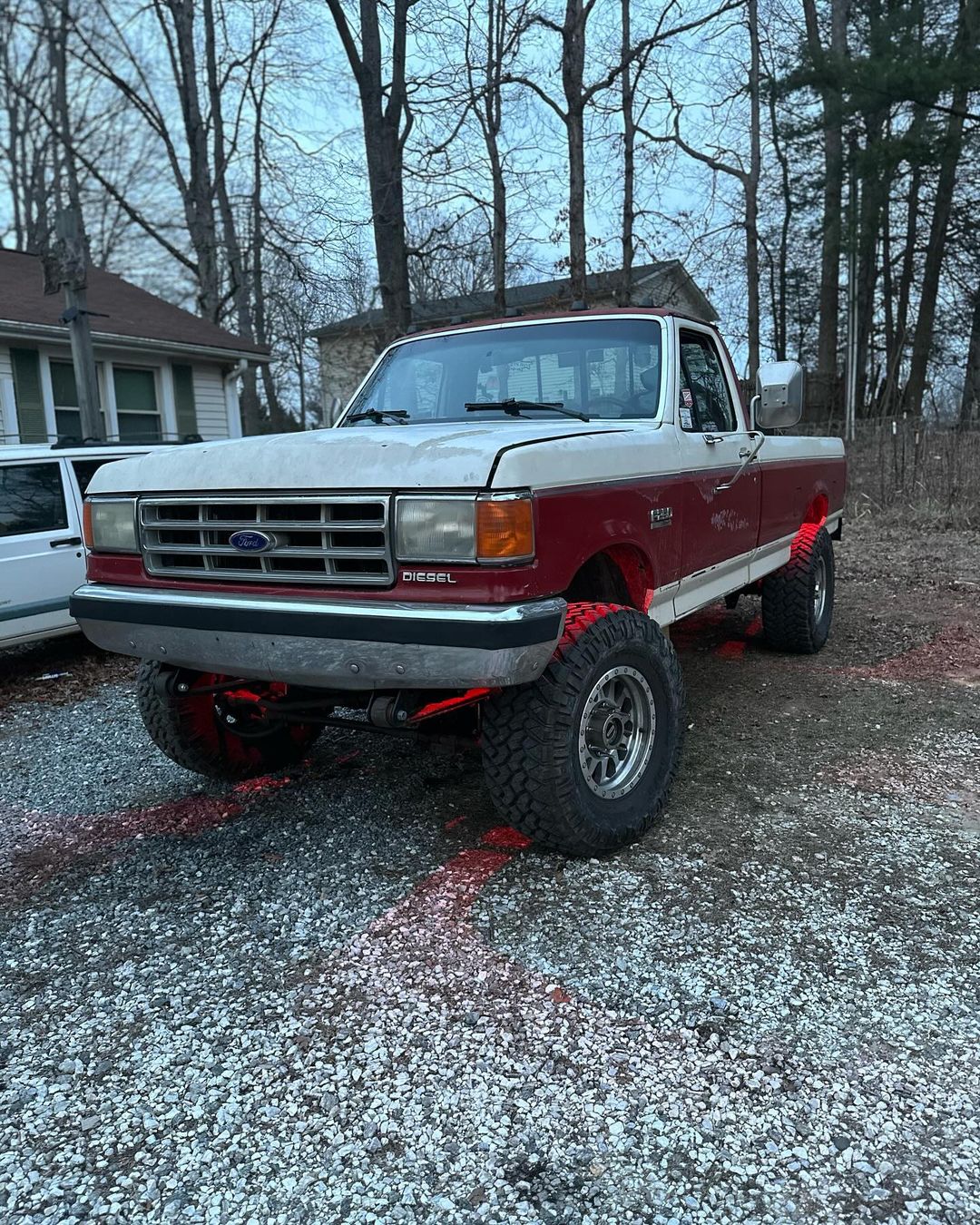

85-91 Ford F-350 4x4 2" Front Shackle Reversal (Super Duty Spring)

Description:

• Kit provides much better ride than stock by moving shackle to the rear of spring.
• Eliminates the weak front shackle design.
• Levels the truck by lifting 2" and allows the use of 35's; minor trimming possibly
• Adapts the much better riding 99-04 Super Duty Springs
• NEW OPTION! 2wd -> 4wd frame plates. Put a Dana 60 in your 2wd!- This kit is designed for 4x4 trucks. Additional parts are necessary for a 2wd truck. The 2wd frame plates are designed to make mounting the spring hanger easier. There are no jigs available, so it will require measuring to properly locate.

Application:

• Truck: 85-91 F-350 4x4 straight axle trucks.
  • *NOTE* Can be used on 80-91 F150/250/350 Bronco to swap in a solid axle or convert 2wd. Bronco/F150 use 2wd kit
  • 80-84 Frame is the same, suspension is different
• Springs: 56" 99-04 Super Duty Front Springs

• Axle: 85-97 F-350 Dana 60

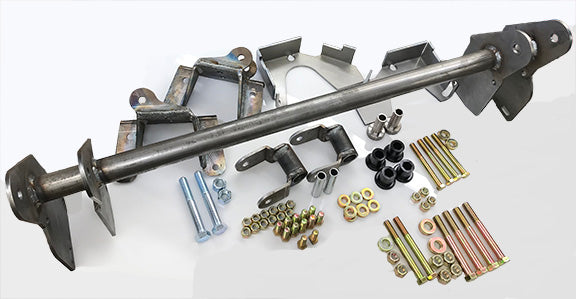

Included:

1 - Front Hanger
2 - Inner Frame Plates (Weld-on) NOT POWDER COATED
2 - Shouldered Frame Sleeve
2 - Shackles
4 - Bushing halves
2 - Bushing Sleeves
1 - Hardware Kit

Additional Information:

Check out Diesel World's Project Obsessed running Sky's FSR (RSK) Kit

FSRSD INSTALL

PROJECT OBSESSED

NOTE : Cheap, foreign aftermarket springs are not recommended. We have had issues with the military wrap leaf being way too large and contacting the hanger. This is not an issue with quality USA-made springs.

• Lift amounts rated for V-Code 43-814 Springs 2C3Z-5310-HA

• X-Code 43-818 Springs will lift an extra 1.5"
• Clearance for intercoolers
• If you need help deciding what other parts you may need to complete your swap, please CLICK HERE
• Part numbers and specs for Super Duty Springs can be found online HERE
• Click HERE to purchase leaf springs or contact your local Ford Parts Center

 Instructions:

85-91 Pugnose Instructions

Check out Diesel World Magazine's install write up:
https://www.dieselworldmag.com/diesel-technology/project-obsessed-4/

Installation Notes:

Check out this great install write up on the bullnose forum https://www.garysgaragemahal.com/#nabble-td34173

The sway bar will need to be deleted, or will need end links extended. Our 3" Sway bar end link extensions are available here: 85-97 F-350 Sway Bar End Link Extensions

The 2" FSR kits with the military wrap may cause issues for customers with worn-out spring bushings and sliders, making it difficult to clear the shackles. To ensure proper functionality, it is crucial to use high-quality, built to specification parts.

Instructions for Replacing Leaf Spring Bushings and Isolators

Due to age, it is common for the front frame horns to spread. This is because the only thing holding the front of the frame together are the rivets at the engine cross member. To properly install the 2" Front Shackle Reversal, it may be necessary to use a die grinder to open up rivet holes that may not align perfectly. It is important to note that these trucks were not built with high precision. When using this kit with lift springs, it is common for the springs to be shorter than stock due to the re-arching process for increased lift. It is recommended to drill only one hole for the spring hanger and secure it with one bolt until the truck can be lowered to check the shackle angle for satisfaction.
