85-97 Ford F-350 Shock Brackets

-Upper and lower shock mount brackets that allow the use of single or dual shocks on your OBS!

-Upper shock brackets can be paired with our crossover panhard conversion U-bolt plates (see picture).

Application:

-Truck: 85-97 F-250/350
-Axle: 85-97 Ford Dana 60
or
 99-04 Superduty Dana 50/60

Additional Information:

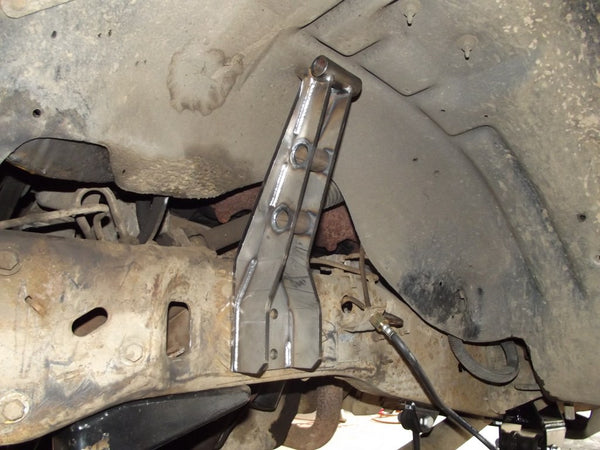

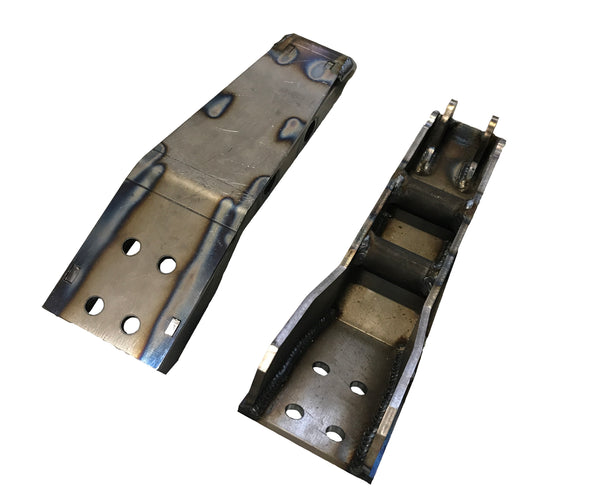

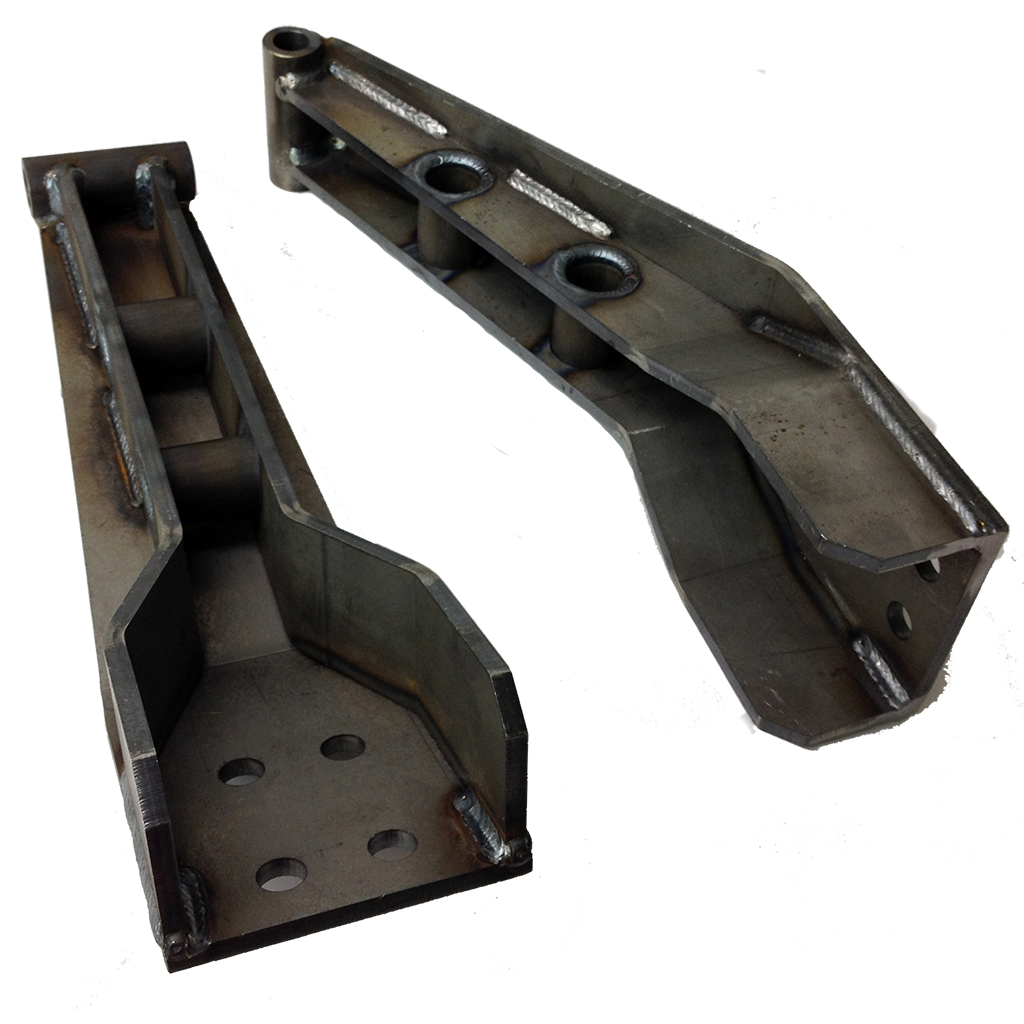

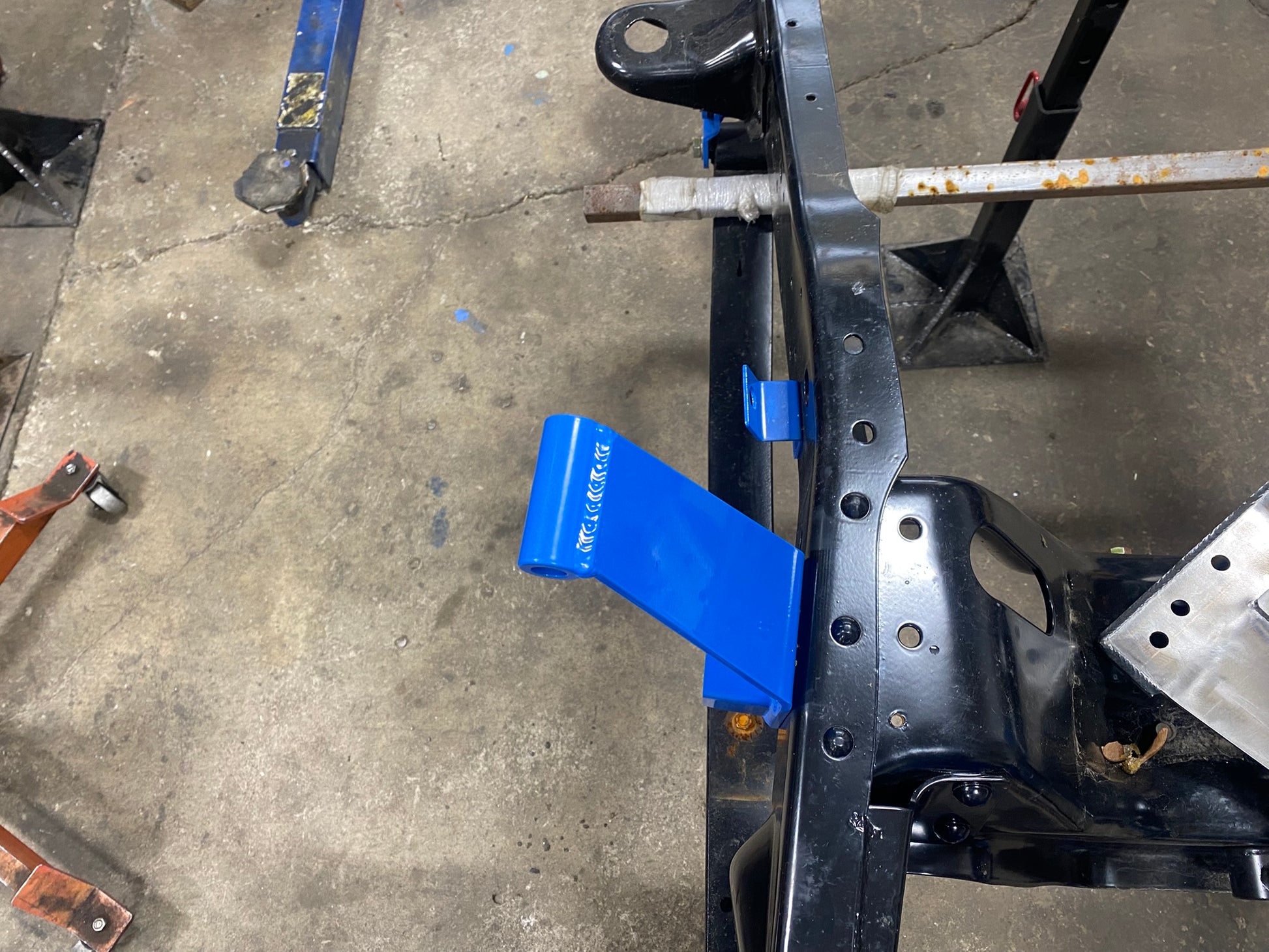

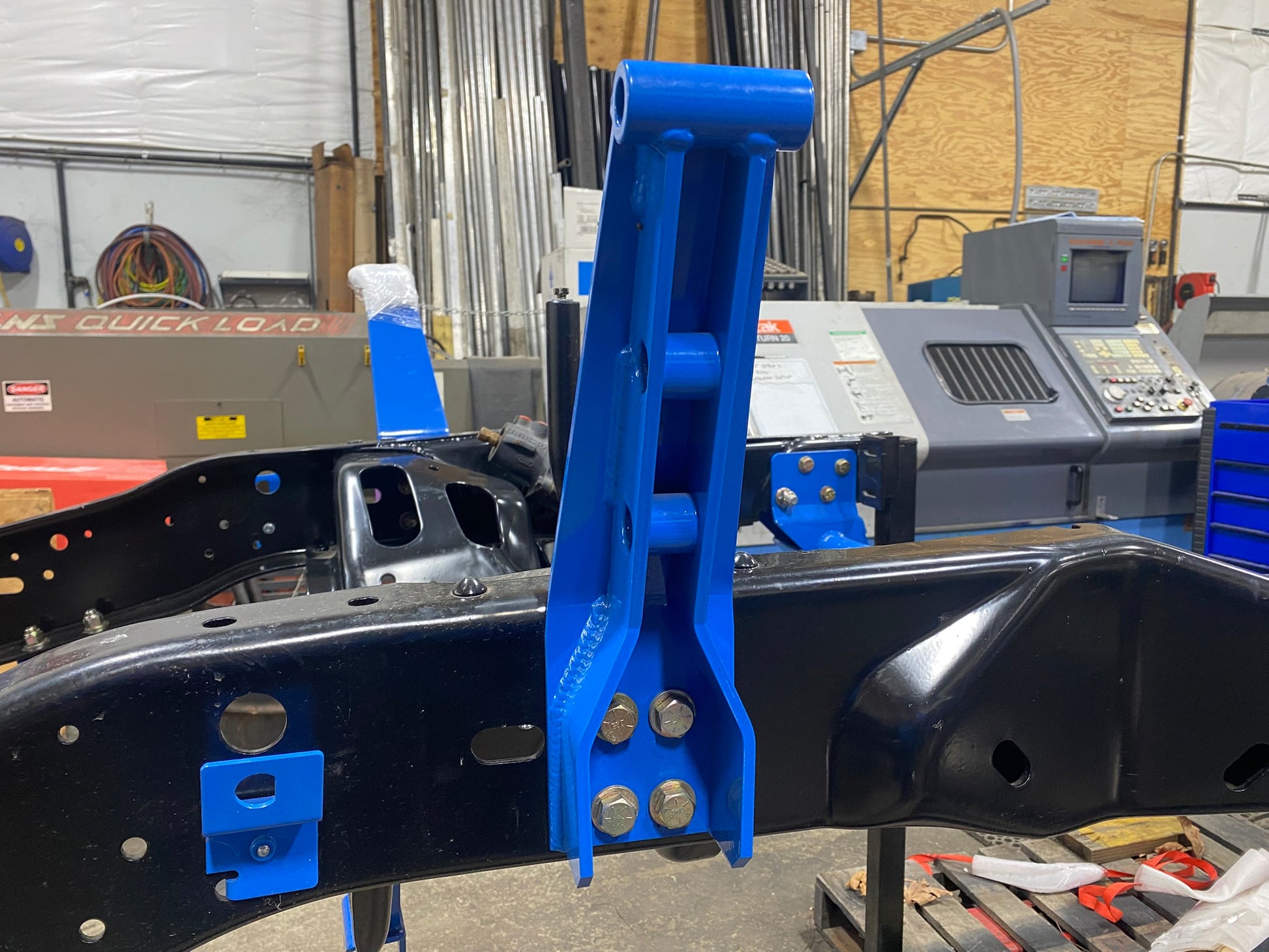

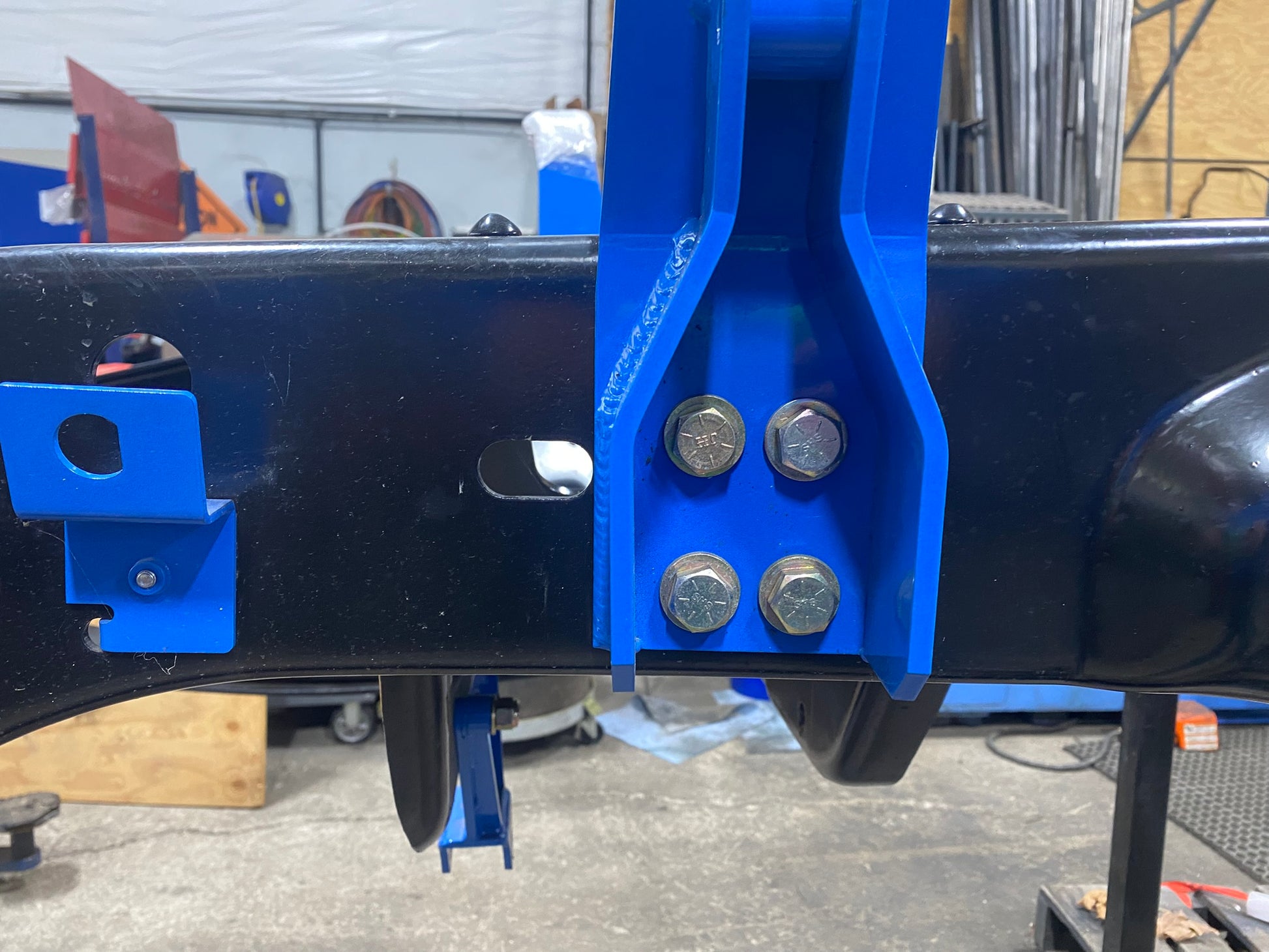

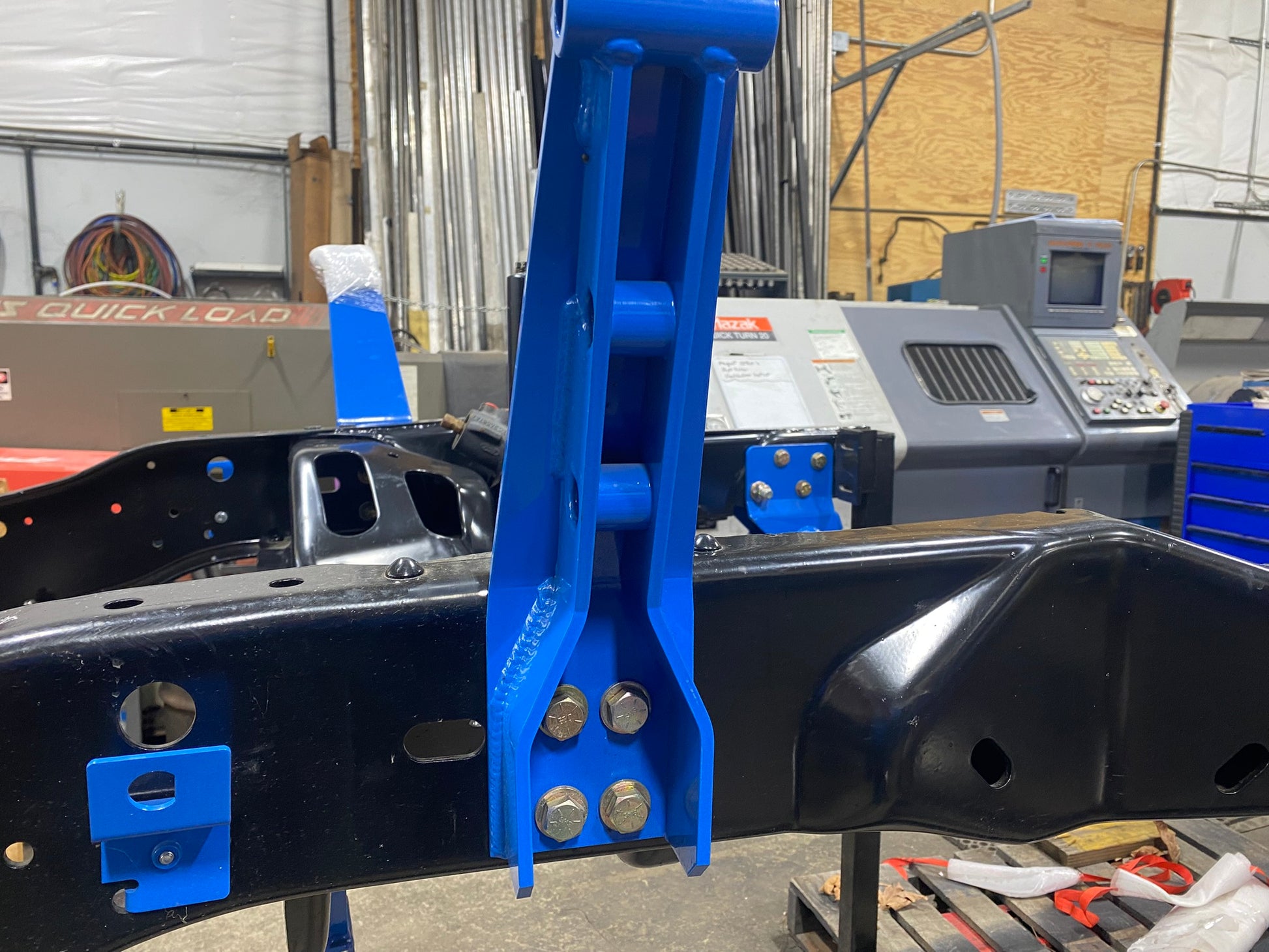

Upper Shock mounts fit the contour of the fender well.  Add 1 inch of shock height over stock. Includes hardware to install shocks

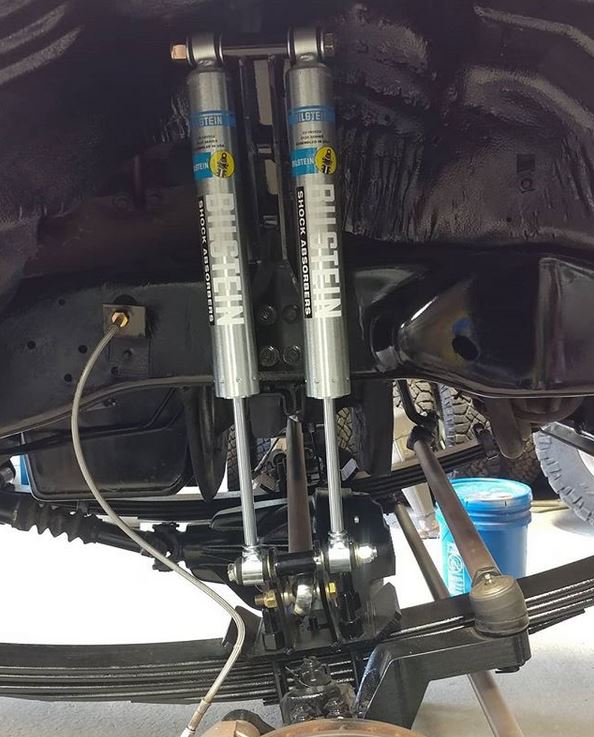

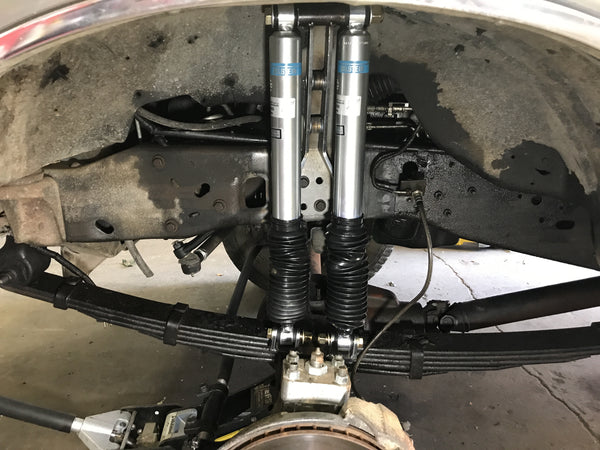

Upper Dual Shock Mounts Accept an Eb1 style 5/8ths shock eye.

Upper Single Shock Mounts Accept 1/2" Shock eye

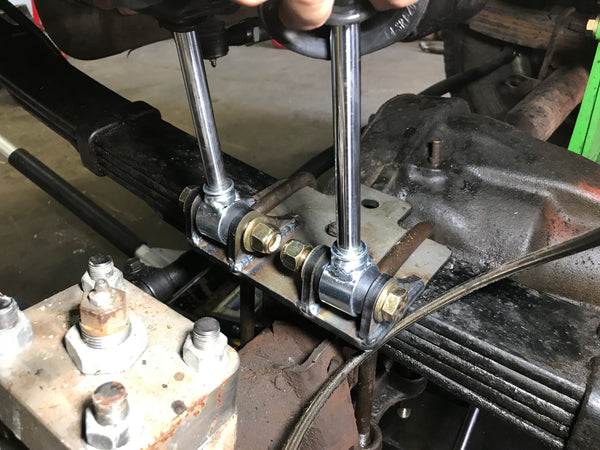

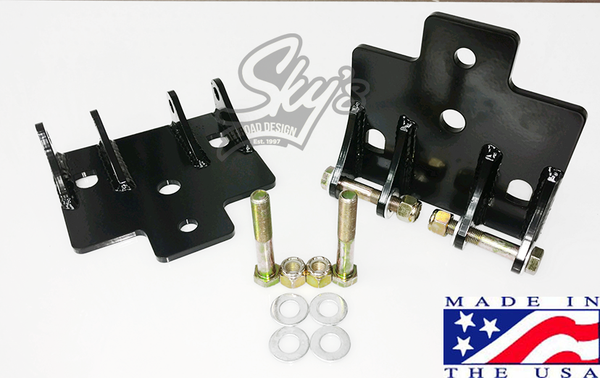

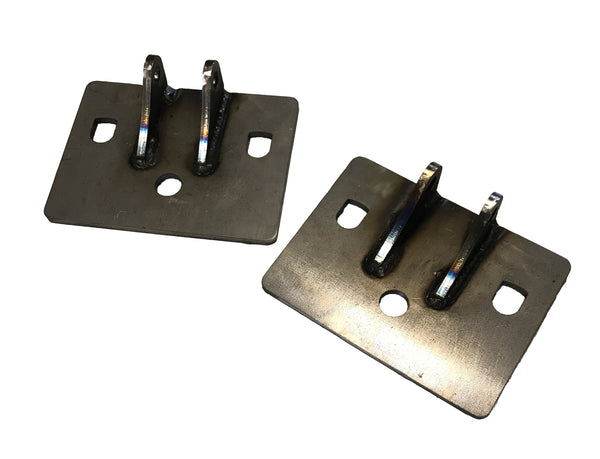

Lower brackets have 1/2" mounting bolts for the shocks.

Upper Dual Shock Mounts Fit shocks 2" or smaller in diameter.

Upper Single Shock Mounts Fit 2.5" or smaller in diameter.

Both Upper Mounts are 15" OAL

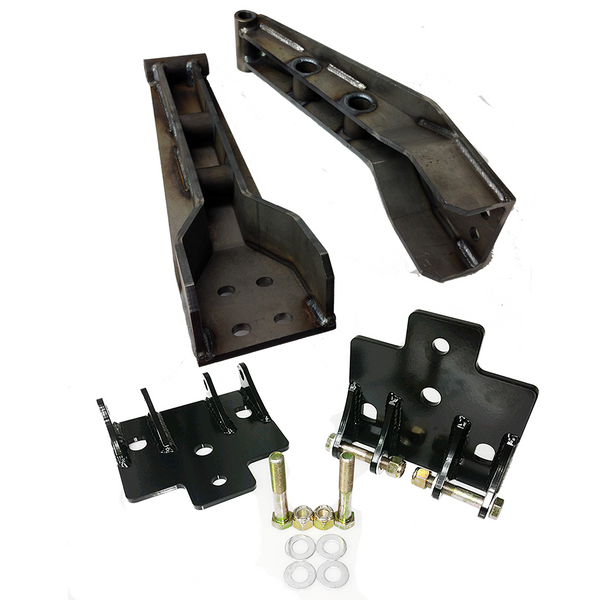

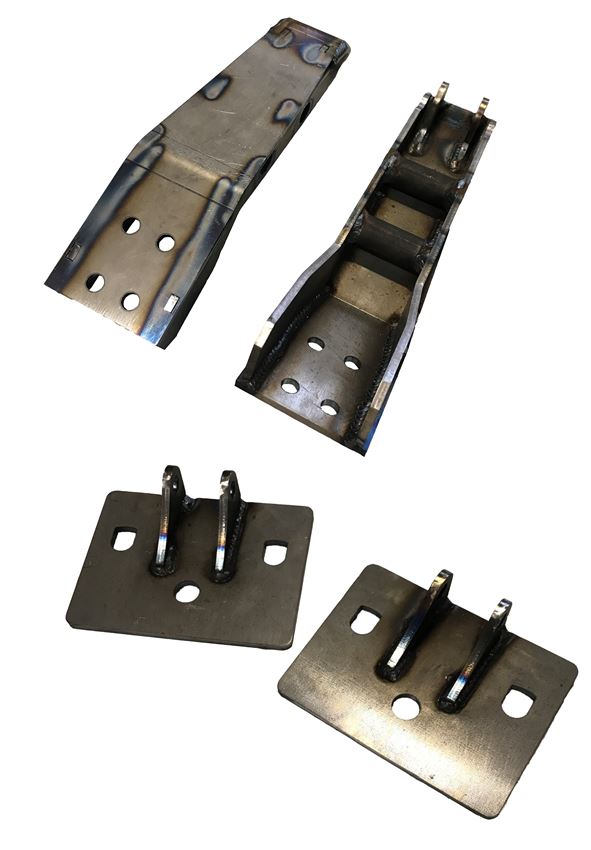

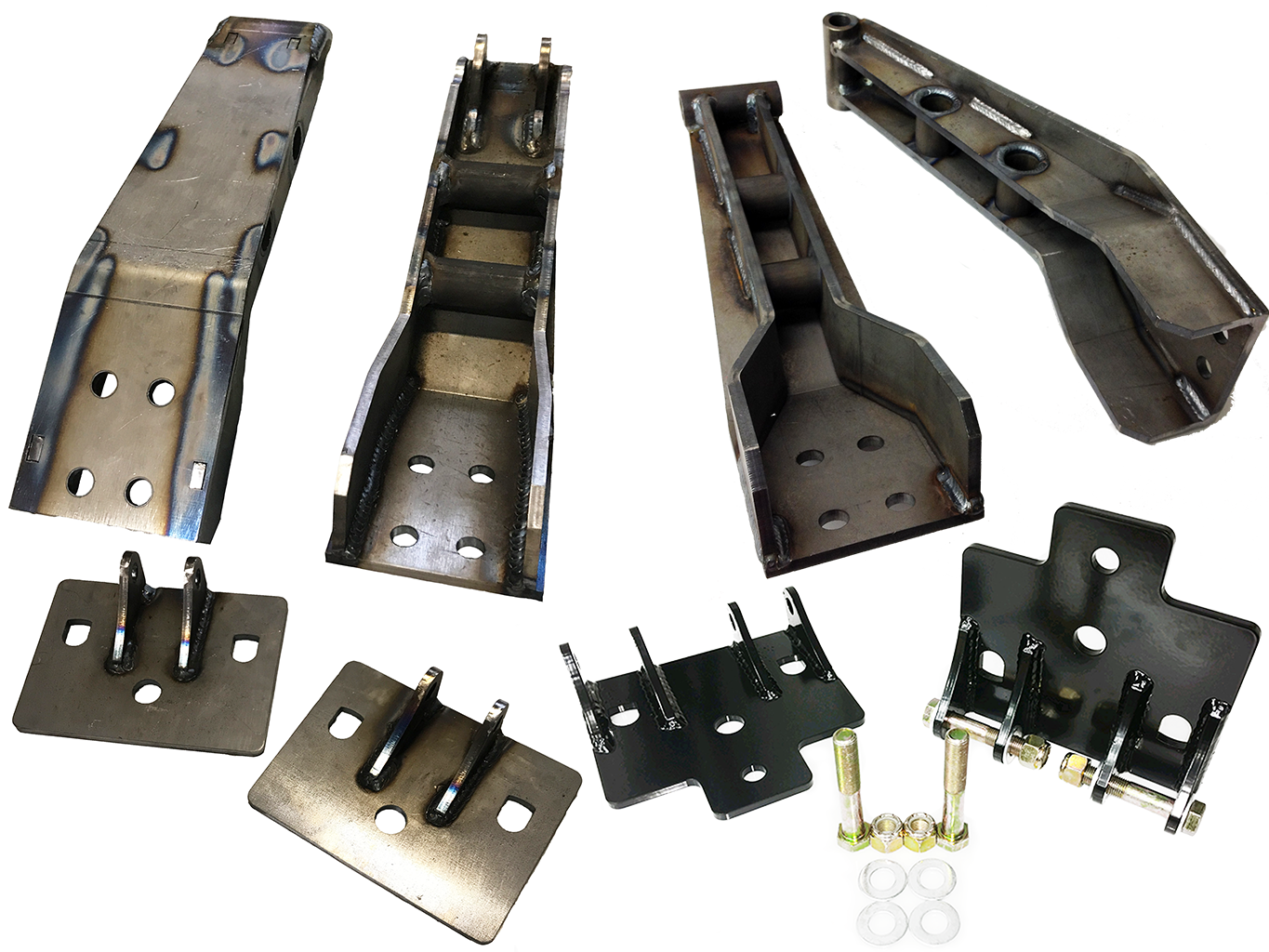

Purchase "kit" for both upper and lower shock mounts. Kit components are sold individually for customers fabricating their own companion parts.

If using this with our crossover panhard kit you will only need the upper brackets and our dual shock hardware kit.


Customer Reviews

Based on 5 reviews Write a review

Customer Reviews

Based on 7 reviews
86%
(6)
0%
(0)
0%
(0)
0%
(0)
14%
(1)
J
Jarred
Very nice

Work perfectly

J
Josey

Extremely heavy duty metal held up on my 12” lift on 37s. I figured a bolt would of snapped or something but it held up better then I assumed worth the money for sure

M
Michael Lovelace
Poor fitment

I have 2 problems one is my fault but other honestly makes no sense I didn’t realize that they where taller than factory shock towers and now they make the shocks hit the inner fender. The problem that is my fault is that I didn’t realize slash read where it said they where taller and now I need different shocks after ordering a set of 4 fox 2.0 shocks I completely understand I should have fully read where they where longer but they shouldn’t have been made where there into the inner fender when shocks are mounted on them

Hello. These are 1' longer than stock and mount in the stock shock mount holes. If your bracket is hitting the fenderwell you have installed it too high / improperly. 1' should not make a difference in shocks so I suspect these are not located in the factory shock mount holes. Perhaps you're doing a 2wd -> 4wd conversion?
We have had numerous customers as well as ourselves install these with no issues.

B
Bill
Quality piece

If you're looking for a quality solution to do double shock mounts on a pre-97 Ford, this is it. Fit and finish is top notch, and you can tell these guys take pride in building these pieces right the first time. Very happy with my purchase.

R
Rick
GREAT Stuff

Bought these to go with the dual shock mounts. 1st class parts! These guys really take pride in their work!
