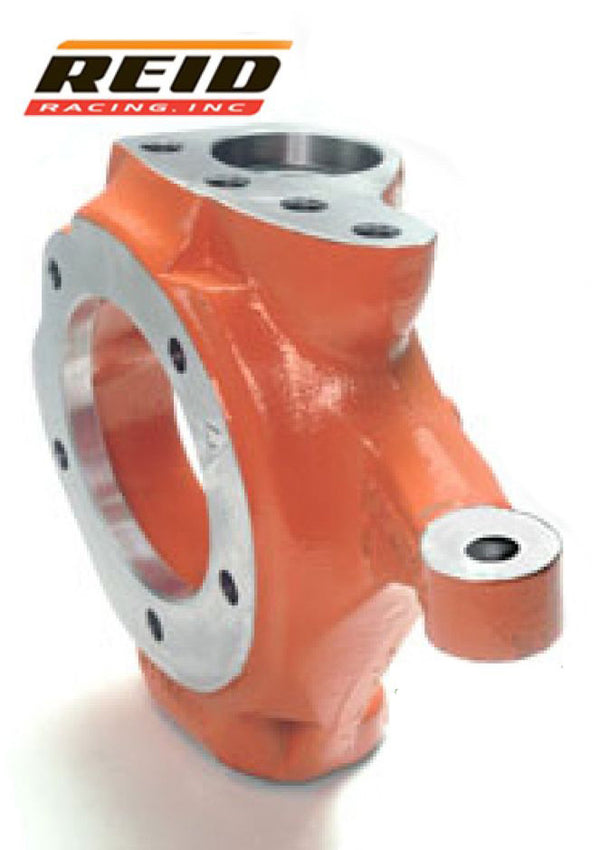

Dana 44 Reid 4 Stud Knuckles

Knuckles may come Drop Shipped from Reid Racing.

Chevy/Jeep spindle bolt pattern accepts "outers" from all open knuckle Chevy and Jeep Dana 44, Dana 30, and 10-bolt front ends to 1986

Cast from high strength ductile iron

Beefed up with extra material and ribbing

Flat tops machined and drilled for high steer arms

4th bolt hole for high steer arms increases clamping force and sheer strength (3 hole high steer arms still fit)

3/8" thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance

Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures

Tapered tie rod holes accept factory tie rod ends

Tie rod holes can be drilled to accept 3/4" heim ends

Powder coated bright orange for long lasting looks on Chevy and Ford Dana 44. Corp 10 bolt is raw.

Interchangeable with all factory and aftermarket Dana 44 components

Fully machined and ready for installation

Machined to clear CTM u-joints without removing the grease fittings

Tie rod hole is tapered from the top to the bottom

Will fit 10-bolt and early Dana 30 axles with minor modification.
