Toyota Tacoma Solid Axle Leaf Hanger Kit

$ 329.00

Part Number: TACO-SAS-001-7inch

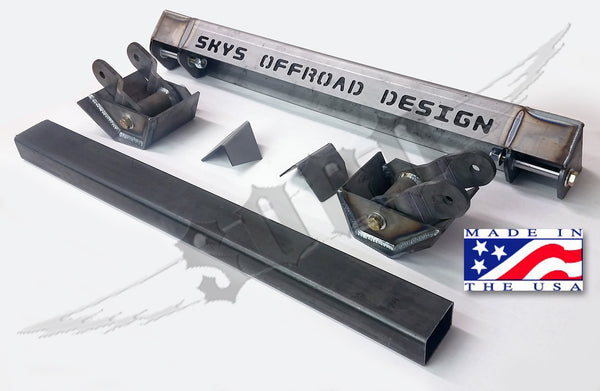

Toyota Tacoma Solid Axle Kit.
10" Lift kit includes full width 2" drop front hanger, rear Chevy style shackle hangers, 4" eye to eye shackles, and a heavy duty IFS box mount kit.
Provides 10" of lift. Designed for use with Wagoner axle or custom Toyota.

7" Lift kit includes, full width front hanger, rear shackle hangers, and a heavy duty IFS box mount kit.
Provides 7" of lift. Designed for use with Wagoner axle or custom Toyota.

Hanger is identical to our Toyota mini truck full width axle swap hangers! If you are interested in just the hanger, please see our Toyota full width swap kit.

Kit lift height is aprx. If all parts are of Sky Mfg, and axle perch height is matched, kits will see advertised lift height. Any variance will change this.

The kit is set up for an axle set at 31.5 inch spring pin centers, this covers sprung over waggy Dana 44, custom Toyota housing with perch set correctly, Chevy Dana 60/Dana 44, all years 67-92, Ford Dana 60/Dana 44 77-79, and probably a few other odd ball axles as well.
We can build a steering kit for any of these axles.You may need to purchase flat top knuckles for the steering conversion if the axle does not have them.

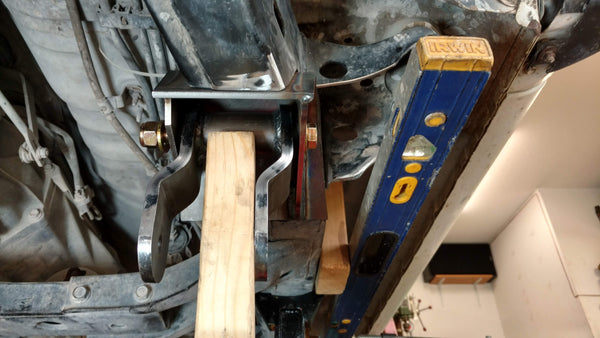

Note: a good starting point to hang front cross member is to measure strait line from front cab mount bolt to eye of hanger bolt for 45.5 inch measurement. Next measure back 45.250 inchs, this will be the upper shackle hanger eye.
