85-97 F-350 4X4 Panhard (Track) Bar Brackets

Description:

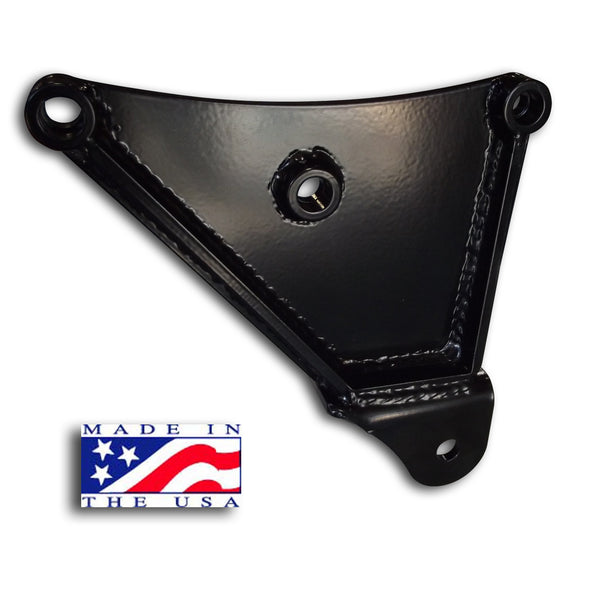

Fabricated panhard brackets for 85-97 F350.

  • Stock replacement height, 3" drop and 4" drop.
  • Used in 4x4 conversions using 85-97 Dana 60 in 80-97 F Series
  • Includes mounting hardware
  • Direct bolt-in for 4wd trucks

Application:

-Truck: 85-97 F-350 (F-250 with 85-97 Dana 60 swap)

Additional Information:

We do not recommend utilizing these drop brackets on a truck that is 2" over/under  specified drop amount. (Don't use a 4" drop bracket on a truck with 7" of lift)
Beyond 6" of lift we recommend our Ford Crossover Panhard Kit and Crossover Steering Kit for either Kingpin Dana 60 or Balljoint Dana 60

The combination of these two kits gives the best geometry.

We do not make larger drop brackets as experience has shown the engine cradle to potentially come loose with extra leverage of massive drop brackets as well as cracking between the mounting bolt holes.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Charles Knight
97 obs crew

Installed 4.5 rsk with x code springs 4” drop pitman 4” drop panhard and adjustable panhard fit exelent going to alignment shop today 👍
