2011-2016 Sterling 10.5 37 Spline Axle To Toyota Driveline Adapter

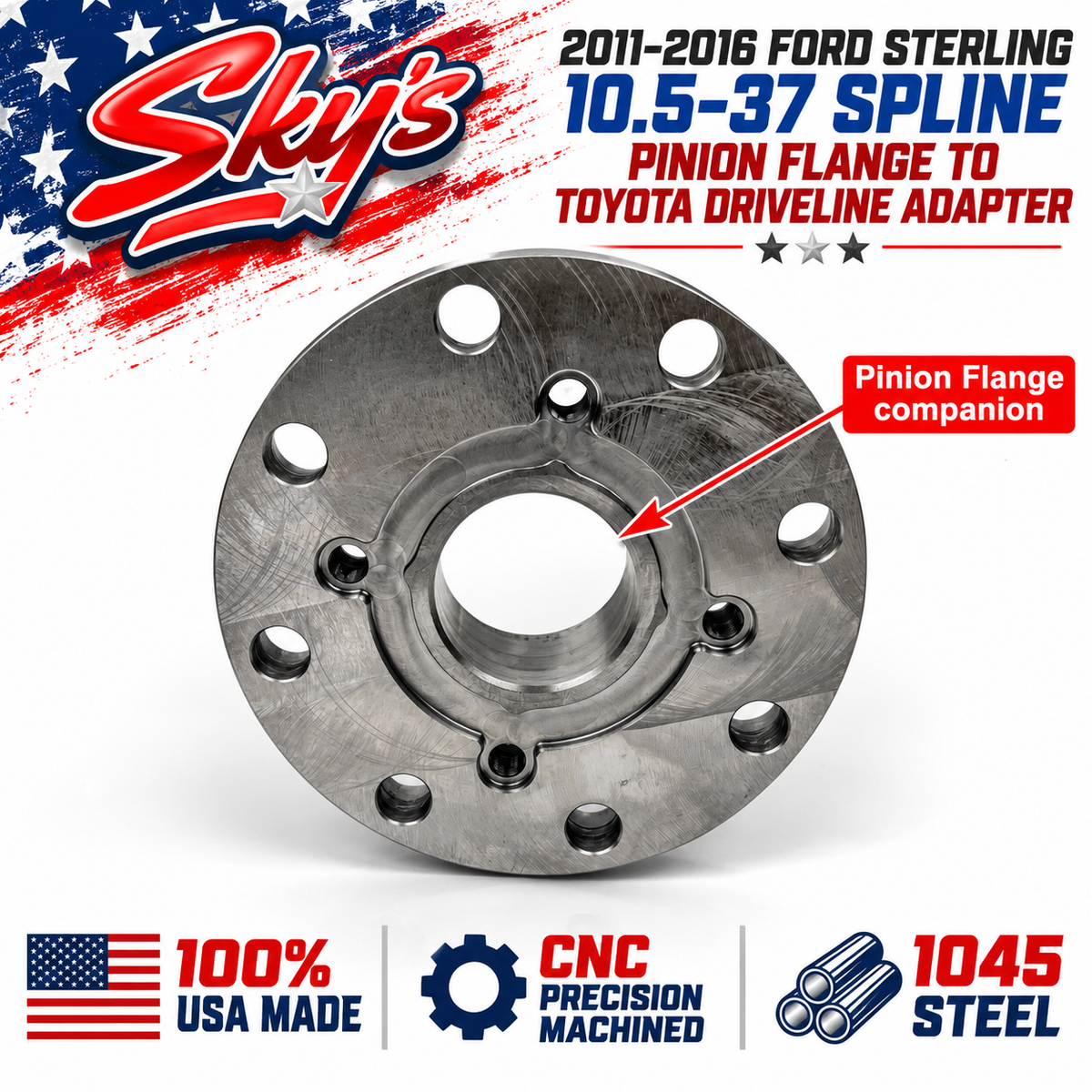

2011–2016 Ford Sterling 10.5" Pinion Flange to Toyota Driveline Adapter

37-Spline Application | CNC Precision Machined | 1045 Steel | 100% USA Made

Product Description:

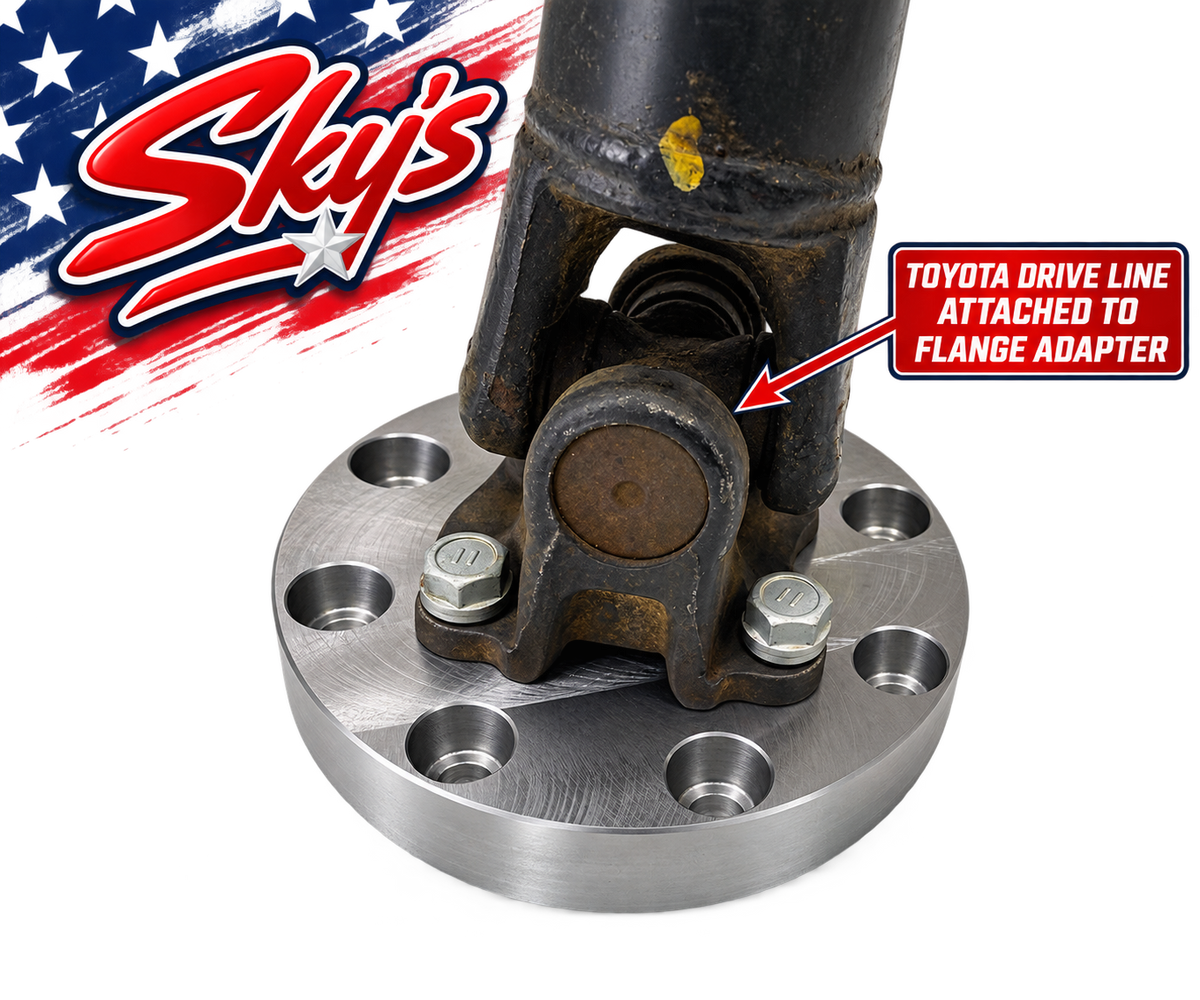

Connect a compatible Toyota driveline to a 2011–2016 Ford Sterling 10.5-inch rear axle with Sky’s Offroad Design’s
precision-machined adapter. Made in the USA from 1045 steel, the adapter provides a mating connection between the

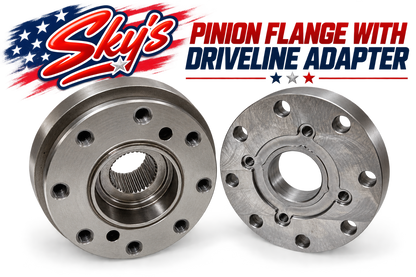

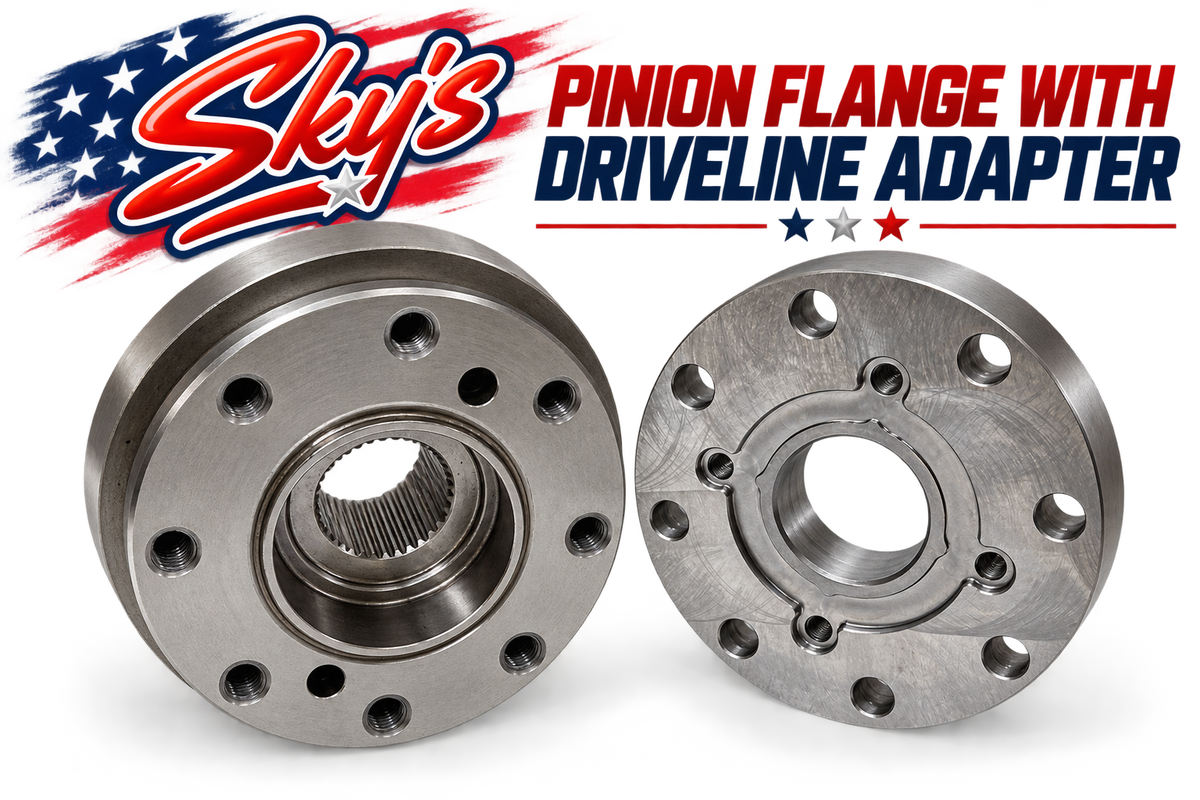

Ford pinion flange companion and a compatible Toyota driveline flange. Choose the adapter alone or with mounting
hardware for either or both sides.

Key Features:

• Designed for 2011–2016 Ford Sterling 10.5-inch rear axle applications with a 37-spline pinion.
• Toyota driveline flange bolt pattern: 60 mm × 60 mm (2.36" × 2.36").
• Toyota OEM flange references: 37315-35040 and 37315-35070.

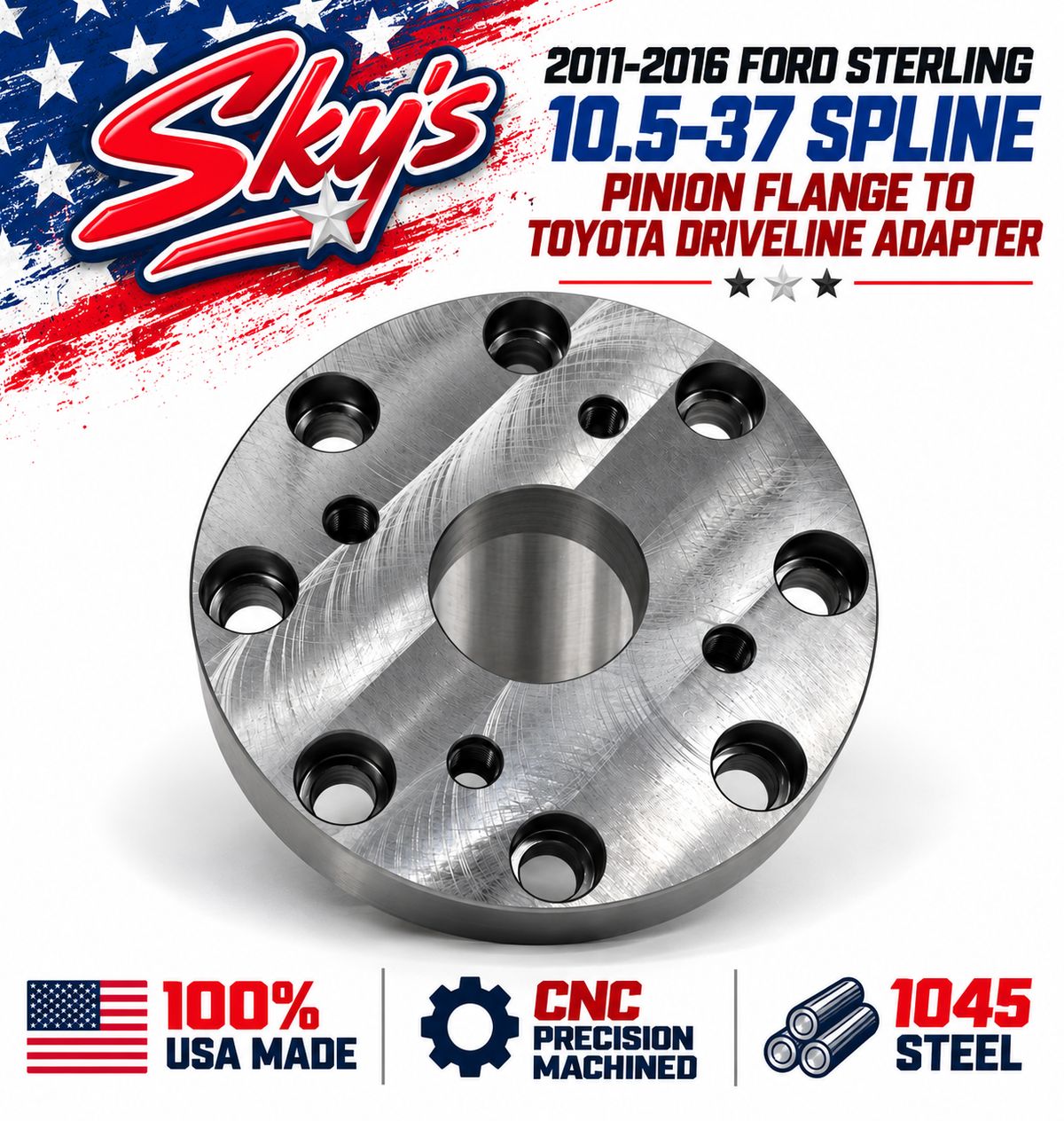

• CNC precision machined from 1045 steel; made in the USA.
• Optional Ford M12 × 1.75 and Toyota M10 × 1.0 mounting bolts.

Technical Specifications:

Axle application Ford Sterling 10.5-inch rear axle
Model years 2011–2016
Pinion spline configuration 37-spline
Ring gear / bolts 10.5 inches / 12 bolts
Toyota OEM flange part numbers 37315-35040; 37315-35070
Toyota flange bolt pattern 60 mm × 60 mm (2.36" × 2.36")
Material 1045 steel
Manufacturing CNC precision machined; USA

Available Purchase Options:

Adapter Only Machined adapter; no bolts
Adapter + Ford Hardware Adapter + four M12 × 1.75 bolts
Adapter + Toyota Hardware Adapter + four M10 × 1.0 bolts
Adapter + Complete Hardware Adapter + four M12 × 1.75 and four M10 × 1.0 bolts (8 total)

Fitment and Installation Notes:

Verify axle model year, pinion configuration, Toyota flange bolt pattern, and OEM flange compatibility before ordering.
The Ford pinion flange companion and Toyota driveline are not included. Bolt lengths, grades, and washer requirements
should be confirmed before installation. Fitment for later model years has not been established
