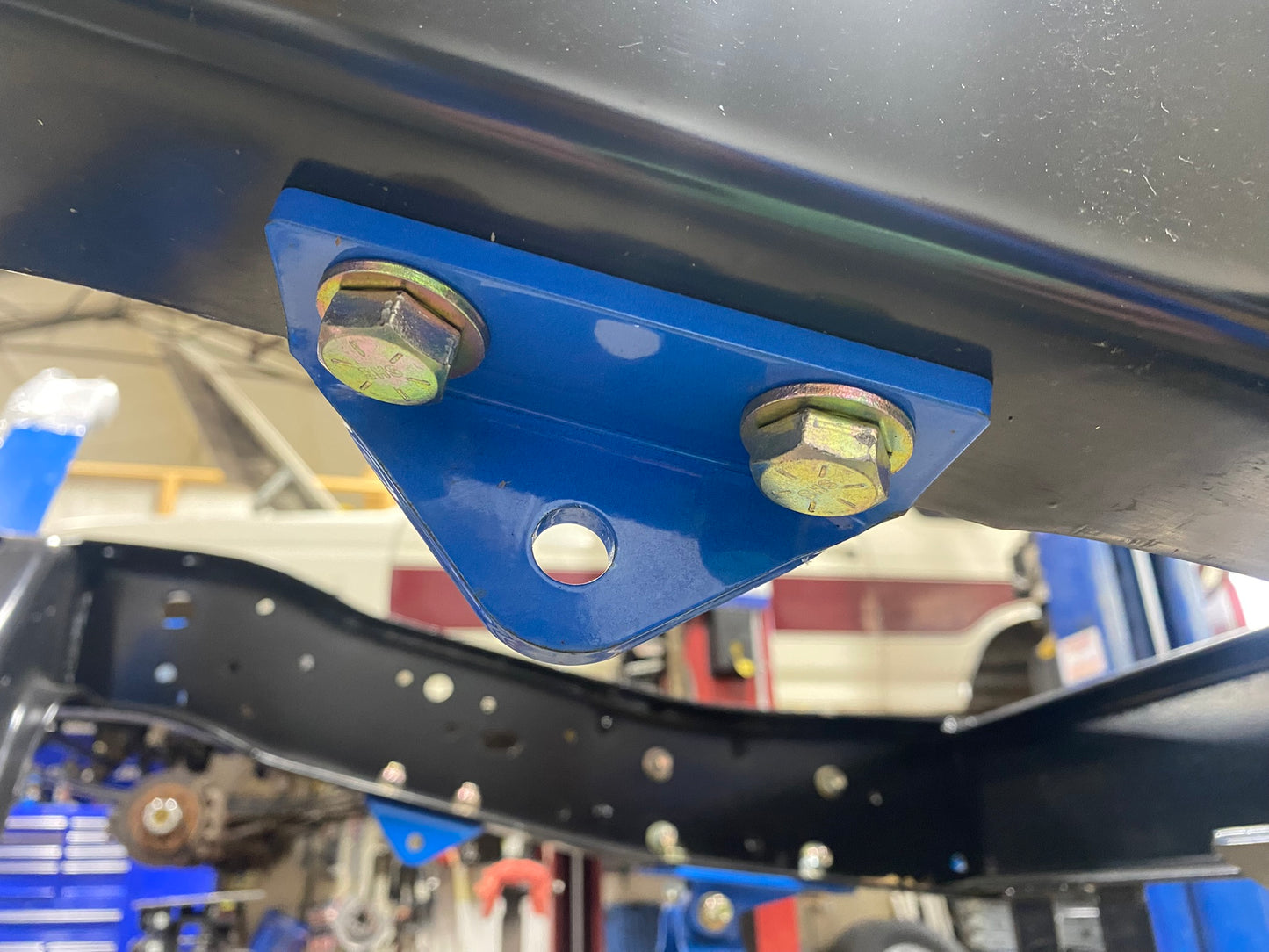

85-97 F350 Sway Bar Frame Mount Bracket
85-97 F350 Sway Bar Frame Mount Bracket
85-97 F350 Sway Bar Frame Mount Bracket
85-97 F350 Sway Bar Frame Mount Bracket

85-97 F350 Sway Bar Frame Mount Bracket

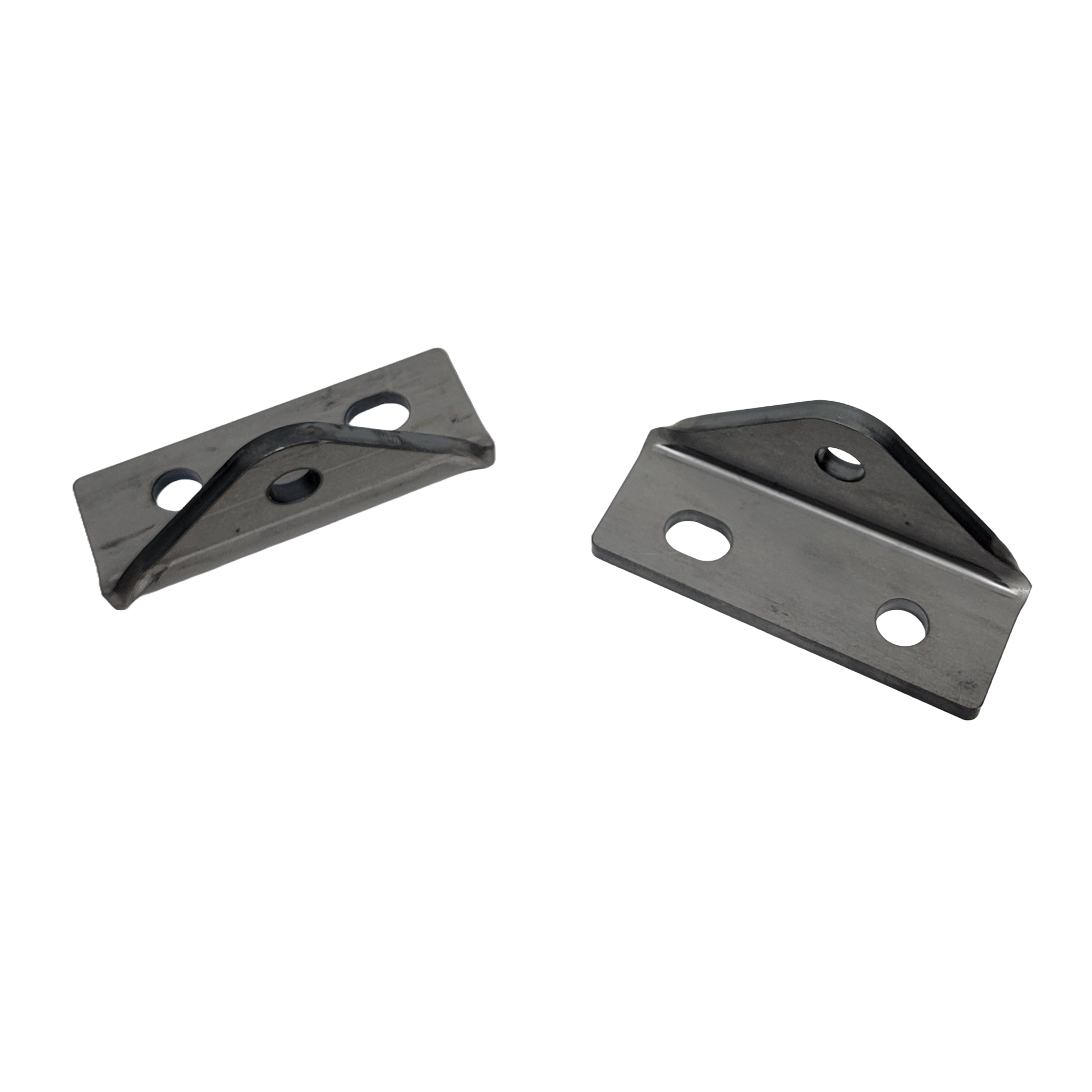

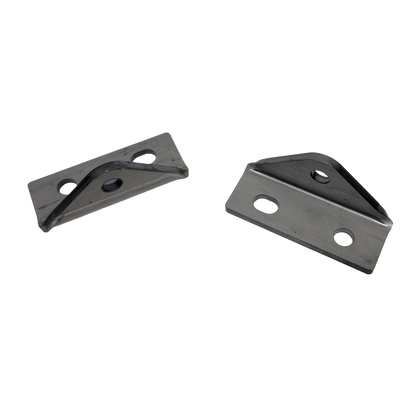

Stock replacement OBS F-350 sway bar end link frame mounts.

These are an HD version of the stock 85-97 F-350 front sway bar end link frame mounts. Laser cut and CNC formed from 1/4" HRPO steel. These will replace your rusted stock parts, or allow you to add a sway bar to a truck that was optioned without one.

-NEW Updated design for better fitment on stock replacement applications-

Includes:

  • Two Brackets (pictured)
  • Mounting hardware

If you need extended end links we have them available here:

85-97 F350 Sway Bar End Link Extensions for 2-4" Lift

Customer Reviews

Based on 2 reviews Write a review

Customer Reviews

Based on 3 reviews
33%
(1)
0%
(0)
0%
(0)
0%
(0)
67%
(2)
R
Riley Coelho
Parts didn’t fit my truck

I had it listed as a 1992 f250 hd and said it would fit my truck but it doesn’t I have to drill my own holes now

Hello, thank you for your review. Nowhere does it say that this bracket is for an F250.
The F250 sway bar mounts on the frame and the ends go down to the axle.
The F350 sway bar mounts on the axle and goes up to the frame.
When swapping a Dana 60 from an F350 into an F250 these brackets are necessary if you want to connect the sway bar. It does require drilling holes.

H
Harold
Worked good

The updated brackets worked great for me along with all the other parts I got from you to swap a dana 60 into my F250. Thanks!

D
Dakota Tyler
Sway bar brackets

The holes didn’t line up at all wish I could return but I painted them already

Hello, thank you for your feedback. We originally designed these for our Super Duty Swap endlink kit. After using them on a 4wd to 2wd swap in the shop we decided to make them available separately.
Thanks to your feedback we compared them to the stock brackets and found indeed the bolt holes are in a different location. So we redesigned these to match up to the stock 85-97 F350 sway bar frame mount bolt holes.
