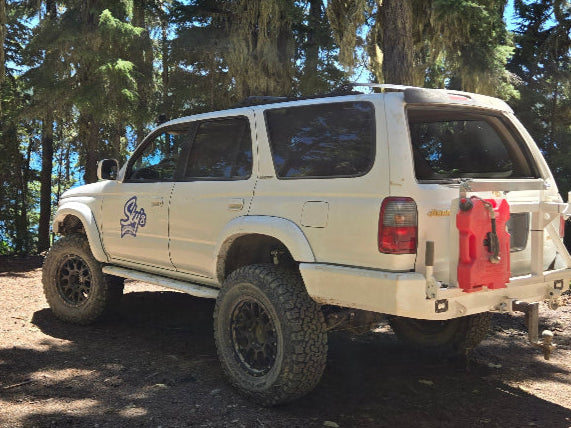

Sky's 3rd generation Toyota 4Runer rear shock relocation kit.
Anyone that has a 3rd Gen 4runner, or later gens, knows the struggle of getting the 5 link rear end to flex. We have the first part of the solution available here!
The stock rear shock location for the 3rd Gen 4Runner is problematic. The angles not great for stability, the design increases bind, hard to fit long shocks, and they rust out commonly.
If you want to lift the vehicle and increase its travel capabilities, relocating the shocks becomes a necessity. Luckily, with wheel spacers or offset wheels, there is ample space to move the shocks outboard. A minimum wheel spacer of 1.25" is recommended.

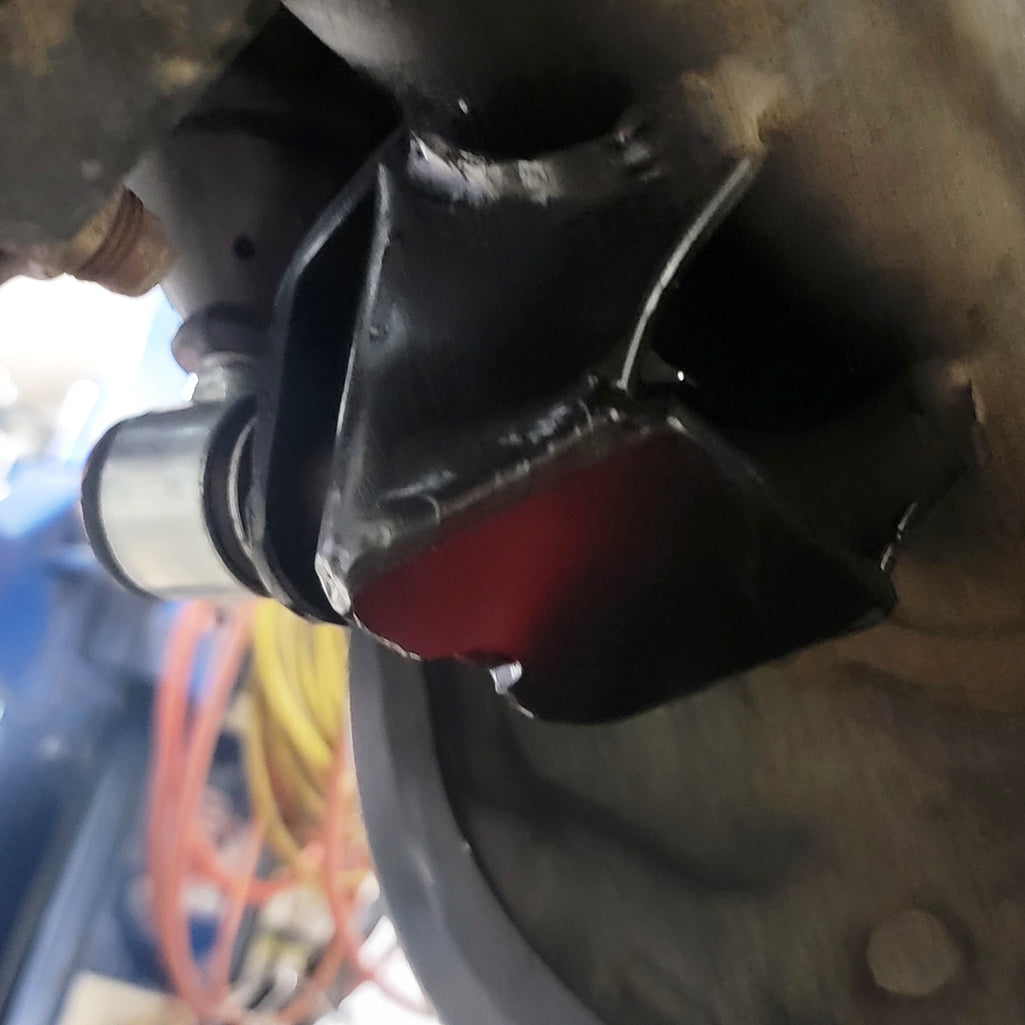

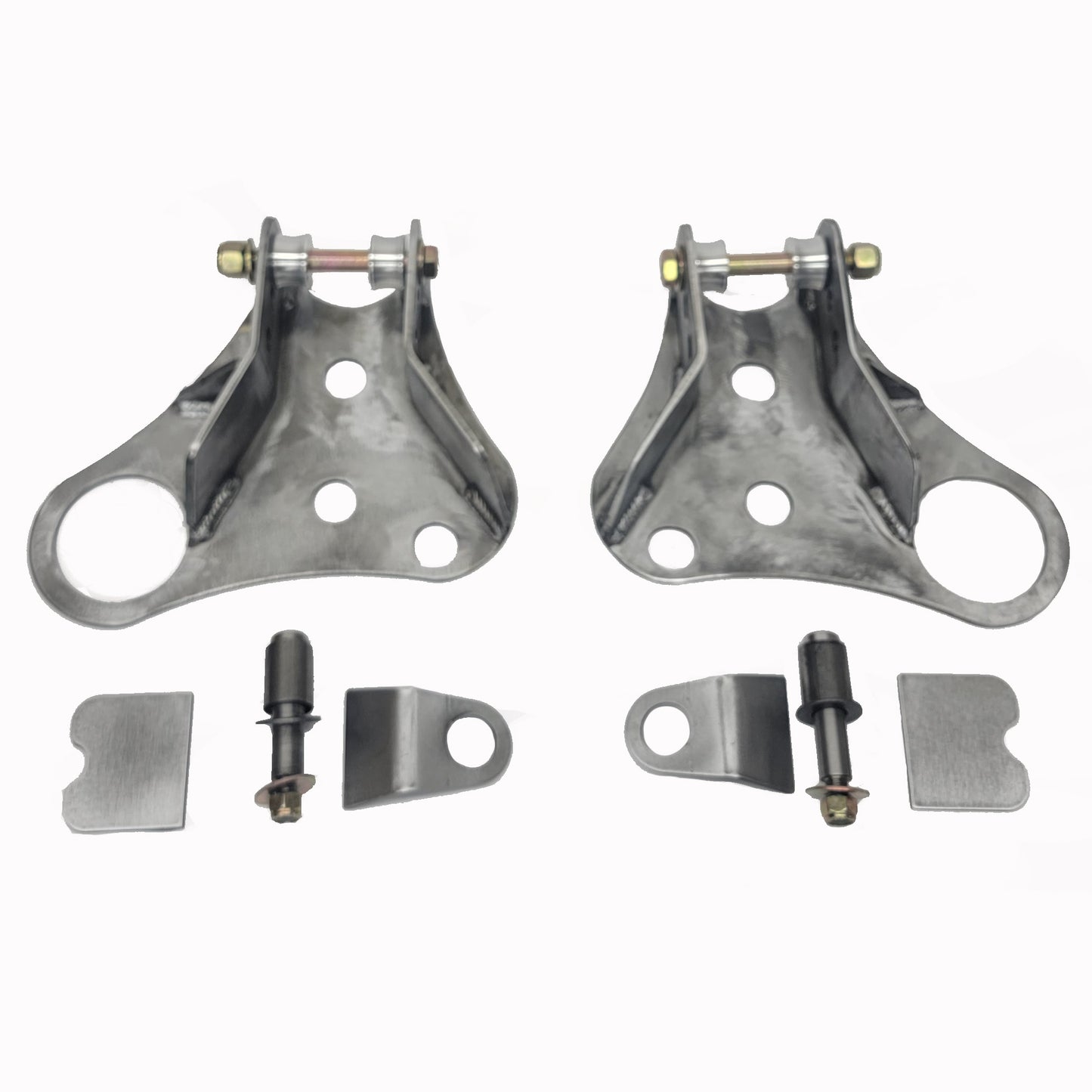

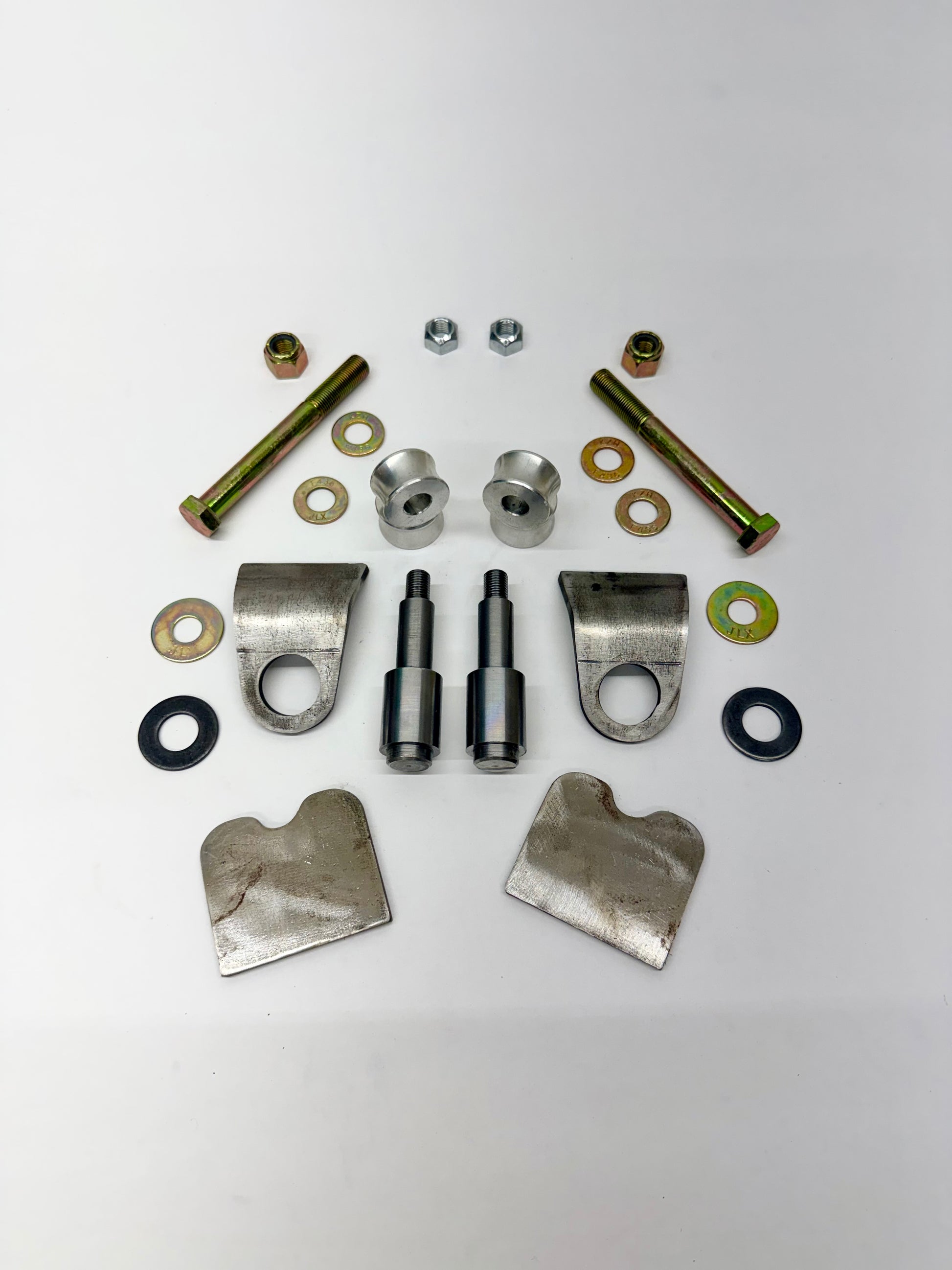

We've designed a new upper and lower rear shock mount that has been designed to relocate the shocks and accommodate longer shocks, while maintaining the trailing arms and a panhard bar on the back of the 4Runner.

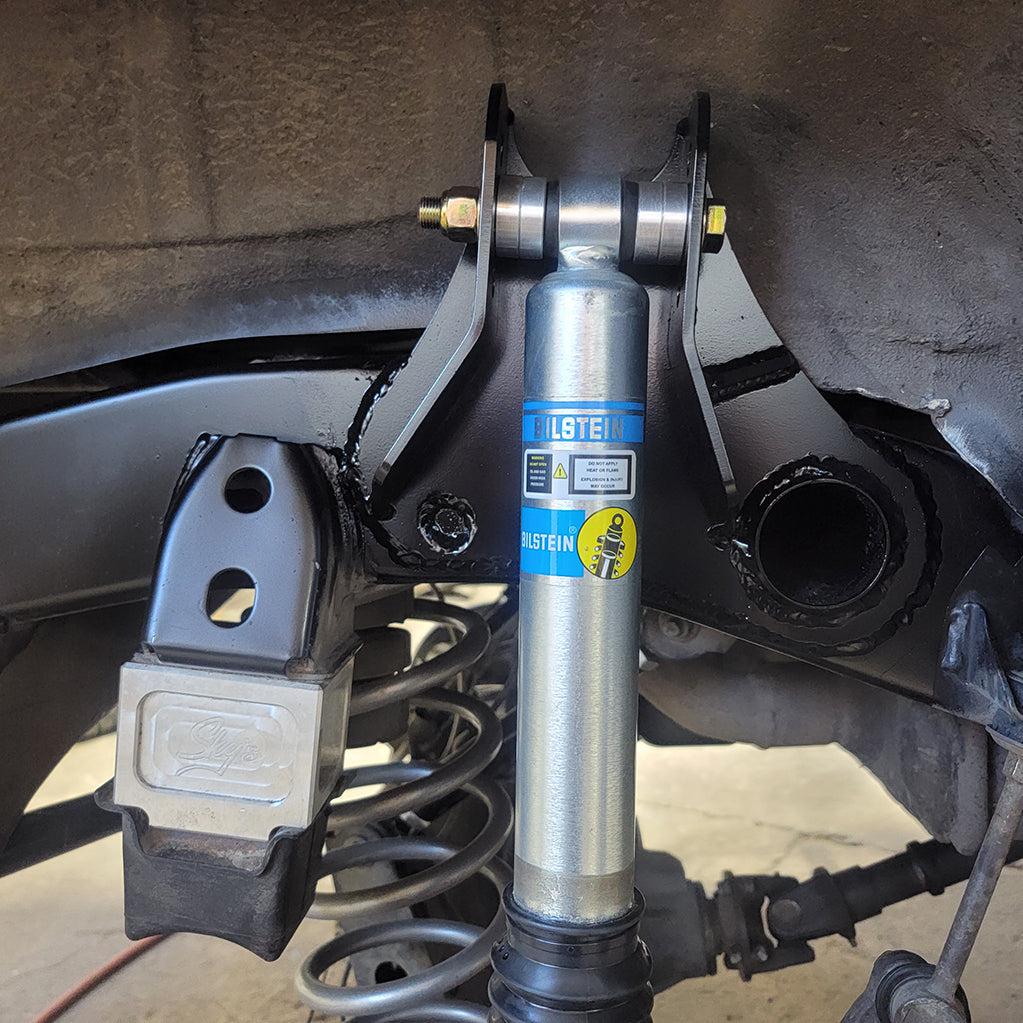

The upper mount is adjustable in height and wide enough to fit a heavy-duty shock. A 3" lift will allow a 10" travel 2.0" shock. A 2.5" shock can be us if down travel is limited so the shock will not contact the frame. A flat panhard bar will also help elevate the side-sway issue of the rear axle. wConstructed from 3/16" HRPO steel, this kit is supplied in raw steel for welding.
