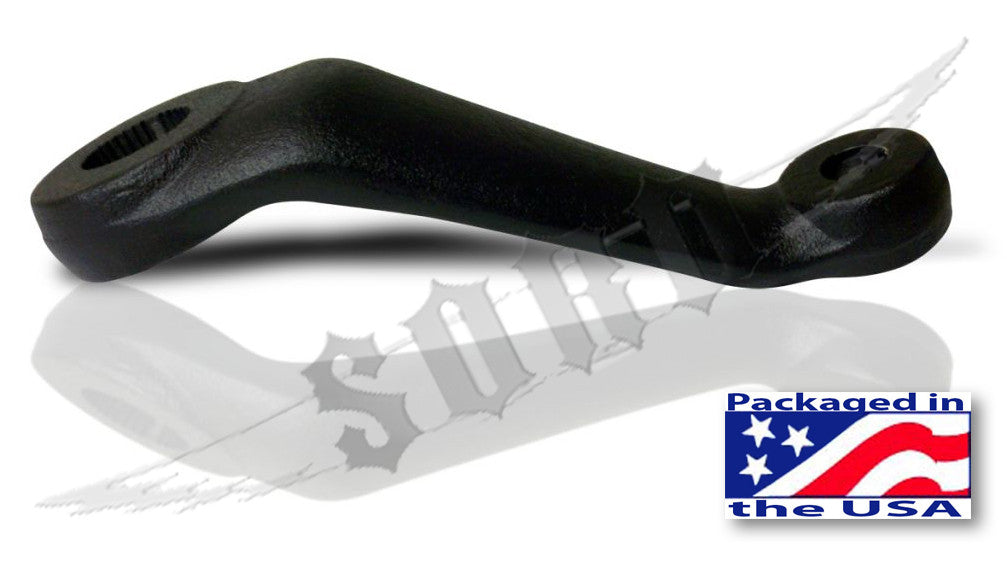

Chevy Crossover Steering Pitman Arm

Chevy/Dodge/Ford cross over steering drop pit man arm used in our crossover steering kits.

Fits 32 spline 4 relief Saginaw steering box's 2wd for 67-87 4x4 conversion (88-91 Suburban and Blazer solid axle factory trucks).

Fits 32 spline 4 relief Saginaw steering box's IFS 4x4 strait axle conversion 88-07 GMC/Chevy.

Pit man arm 6602 fits 78-79 F-100 through F-350 steering box's, whether facing forward or rearward. Will not have correct orientation on 80-newer Ford. This would be a 6601 part #

Fits Dodge, 6602 crossover steering conversion pit man arm used on leaf sprung power steering equipped 4x4 trucks and Ram Charger, years 73-92. Requires relocating steering box to 2wd location on Dodge vehicles. Use's Dodge/Chevy style tie rod ends. 2" or 4" drop option. 32 spline 4 relief box must be used.

Reamed to fit a GM 1 ton tie rod end common part # ES2010R, 2010L, ES234R, and Es234L.

Arms are measured from top of sector shaft mount to bottom of Tie rod end mount plane.

Pitman arms length from center of sector shaft to center of steering link eye is 6.5".

2" drop arms are identical dimensions except for the drop being 2". The over all height to drop on the 2" arm is 2.5", centerline is 2".

Forged steel.
