Chevy Dana 60 Front U-Bolt & Spring Plate Kit
Chevy Dana 60 Front U-Bolt & Spring Plate Kit
SKU:CHEVY-SPK-D60
Regular price
$ 157.00
Regular price
Sale price
$ 157.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

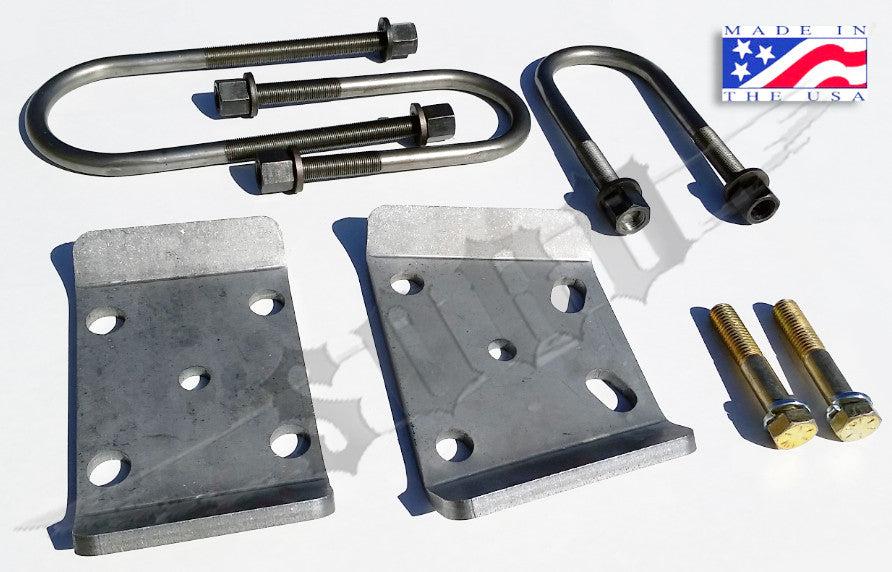

Heavy duty replacement spring plate and U-bolt combo for Chevy Dana 60 front axles.
Plates are cut from 3/8" steel plate, U-bolts are 5/8" grade 8, and Bolts are grade 8 with washers.
These will also fit the Dodge 60 axle with minor elongating of the diff side bolt holes.
Chevy pattern on the diff side is approximately 3.250" while dodge is 2.375".
If using axle degree shims, you will need one top and bottom in order to keep the bolts lines up with the housing.
Made in the USA!
Plates are cut from 3/8" steel plate, U-bolts are 5/8" grade 8, and Bolts are grade 8 with washers.
These will also fit the Dodge 60 axle with minor elongating of the diff side bolt holes.
Chevy pattern on the diff side is approximately 3.250" while dodge is 2.375".
If using axle degree shims, you will need one top and bottom in order to keep the bolts lines up with the housing.
Made in the USA!
