Threaded Bars

For those looking to complete a project and want a threaded drag-link, tie-rod, or panhard bar.



 ***If it is not letting you add the product to your cart or displaying a price, review the options below and choose accordingly.  The website will not allow you to purchase a combination we do not have***

 Custom bar lengths are available for an additional $50 Charge. Phone Order Only.

 To calculate your bar length, we take an eye to eye measurement and subtract 4"

Available bar length options as follows:

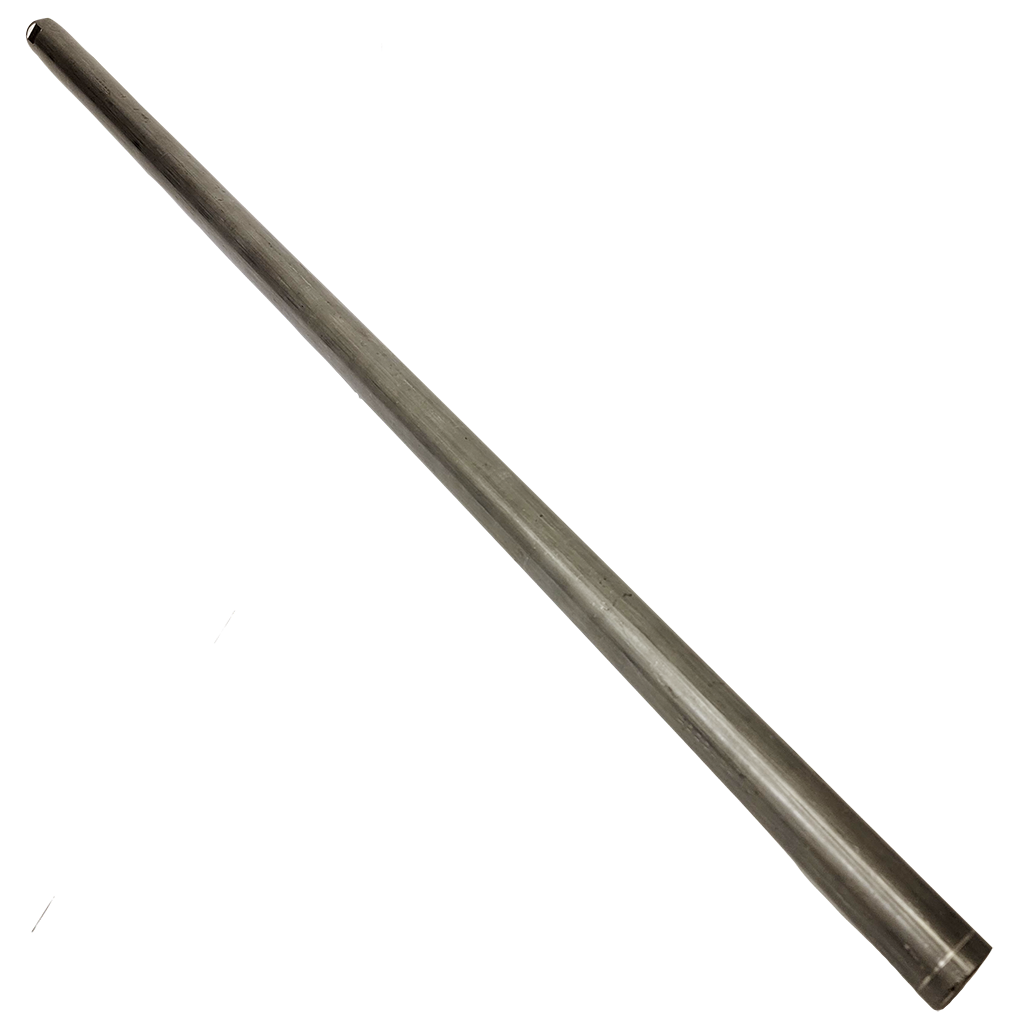

7/8"-14LH X 7/8"-14RH  (Does not have option to include rod ends, this thread pitch is commonly used with heim joints and for panhard bars)

28 - 30 - 32 - 34 - 36 - 37 - 38 - 39 - 40 - 42"

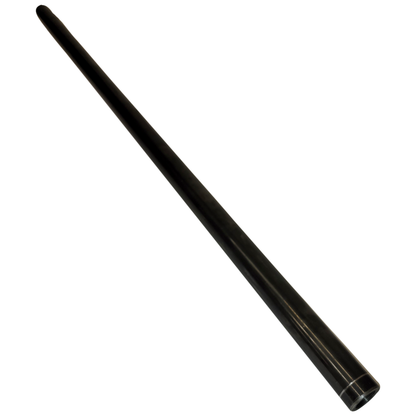

7/8"-18LH X 7/8"-18RH  (Can Include our HD GM Tie rod ends with taper .750/.650)

28 - 30 - 32 - 34 - 36 - 37 - 38 - 39 - 40 - 42 - 44 - 46 - 48 - 50 - 51 - 52"

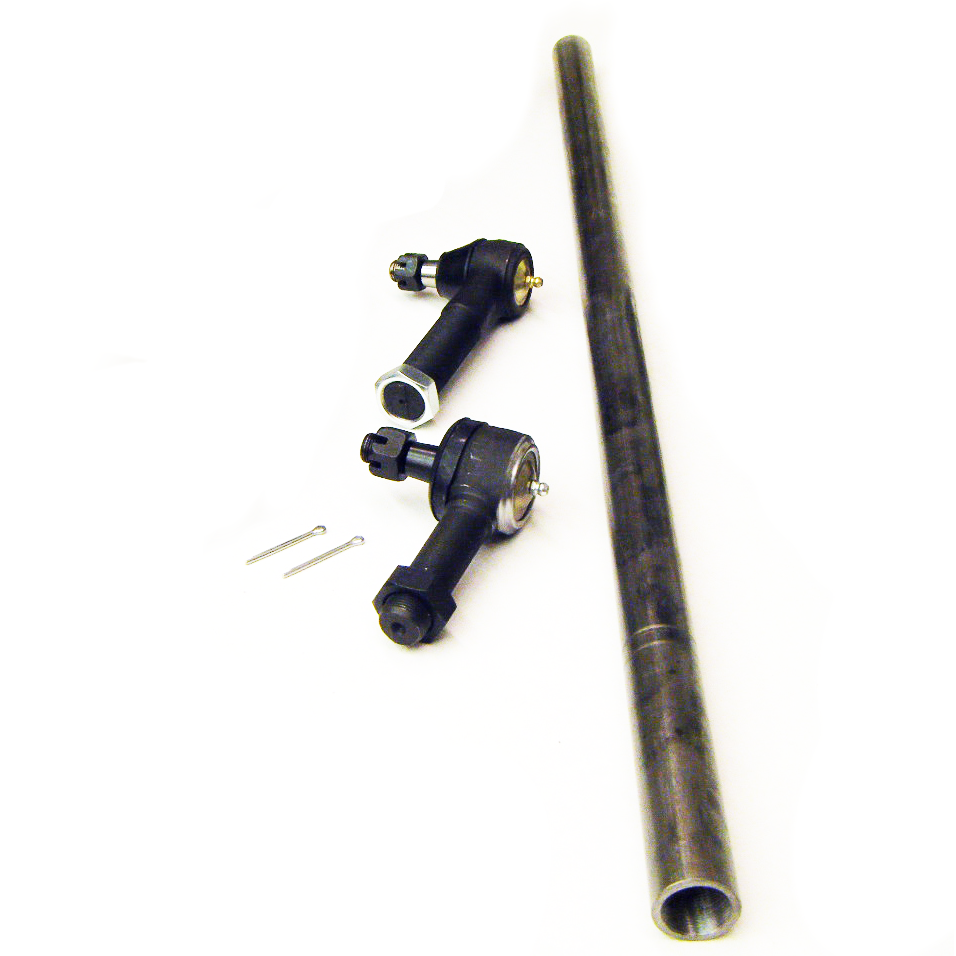

7/8"-18LH X 1"-18RH  (Can Include one HD GM Tie rod end with taper .750/.650 and a Drag link end for Ford pitman arms 85-97')

34 - 36 - 38"



23MM-1.5LH X 23MM-1.5RH (Can Include FJ80 Tie Rod ends common in Toyota hi-steer)

34 - 42"
