Dana 44 Ultra Tall 3" High Steer Arm

$ 119.00

Part Number: DANA-44SSE-001-PS

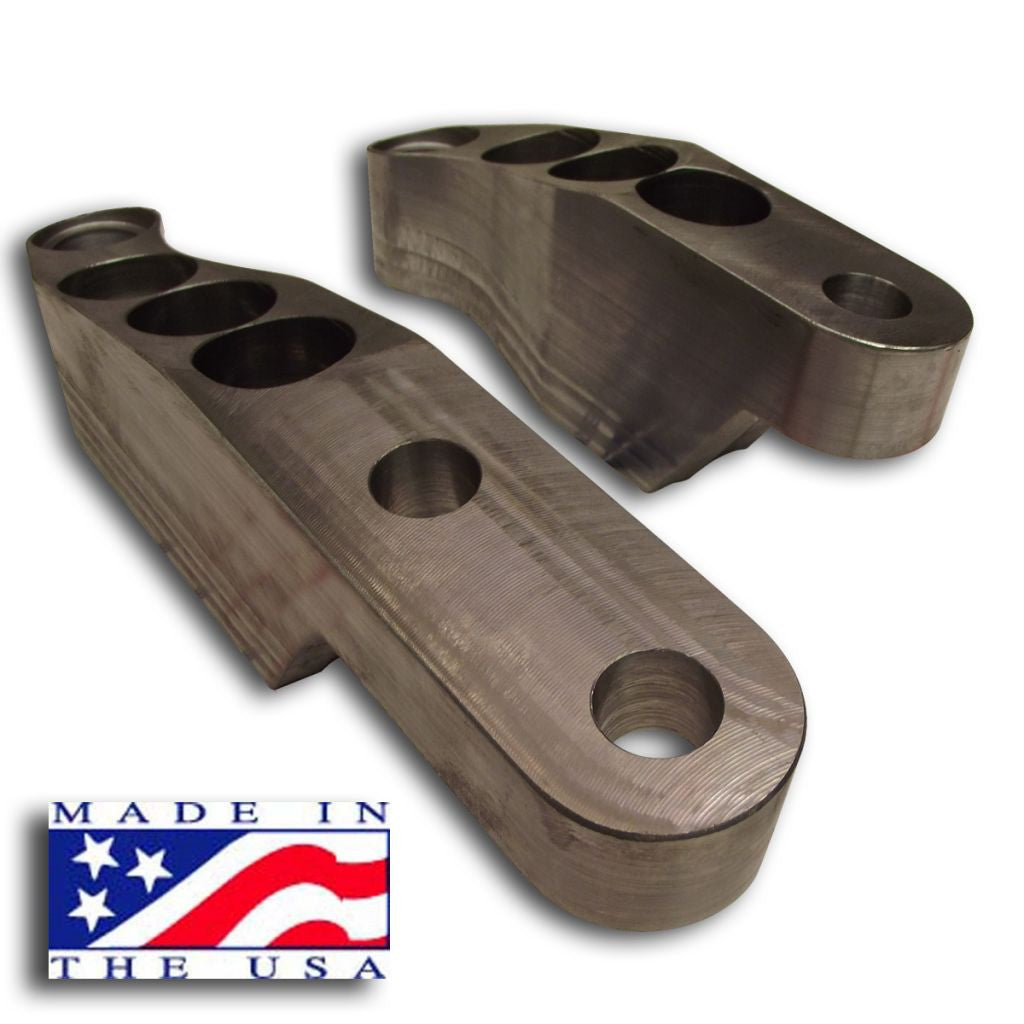

Sky's new Dana 44 Ultra Tall Dana 44 steering arms, or The Star Ship Enterprise steering arm as we like to call it, is a new addition to our massive steering arm line.

Designed for extreme applications where even our normal tall steering arms just are not quite enough.

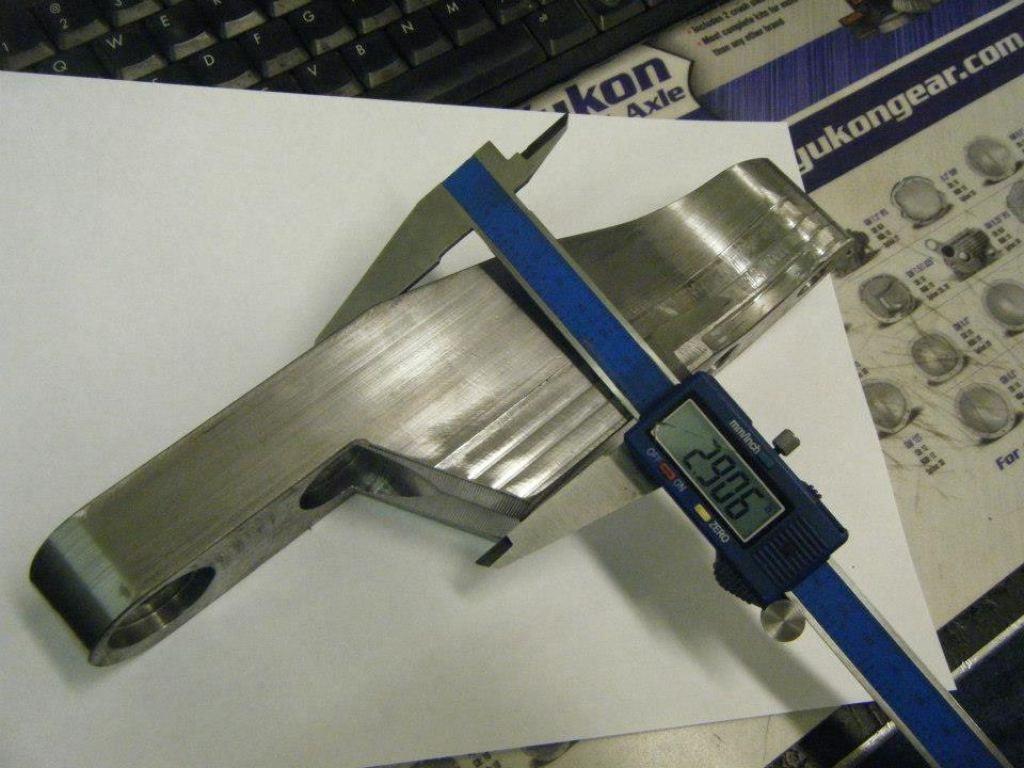

These arms are nearly 3 inch's tall! Arms are only available in 4 stud design, 3 stud will fit, the pattern is still the same! Designed to be able to reuse the stock length studs. Sky's can provide you with new Chrome-Moly studs available in our steering products section.

The arms are available in a long passenger side 2 hole, and a short single hole driver side. Arms are machined to accept gm one ton tie rod ends, 2010L-2234R and use factory style conical washers, These arms have the correct parallel angle machined to set the tie rod surface flat with the axle.

Steering arm dimensions 4 3/4" from center stud to tie rod eye, 7 1/8" from center stud to drag link eye.

Sky Manufacturing alloy heat treated black oxide studs available below.


Steering Arm Info:
Our steering arms are CNC machined out of ASTM A572 Grade 50 steel. We previously have used 1018 steel, but switched to a more rigid material (A572). Grade 50 is a very strong low allow steel that fulfills our exceptionally high strength requirements, and is particularly strong for applications in which it is riveted or bolted. ASTM A572 Grade 50 is considered a "workhorse" grade and is widely used in many applications. Steel mills produce channel and heavy beams with Grade 50. It is commonly used in structural applications, heavy construction equipment, building structures, heavy duty anchoring systems, boom sections, structural steel shapes, and applications that require high strength per weight ratio.
*Tensile strength: 65,000 psi
*Yield strength: 50,000 psi


Manufactured in Oregon!

Sold in Pr's, or Driver and Passenger Separately.

We also stock Knuckles, 4 stud install kits, and all other necessary products for your steering conversion.

Steering arms are a 4 stud design, but will still fit 3 stud knuckles.
