Dana 60 3/4 ton 8 Lug Front Disc Brake Brackets

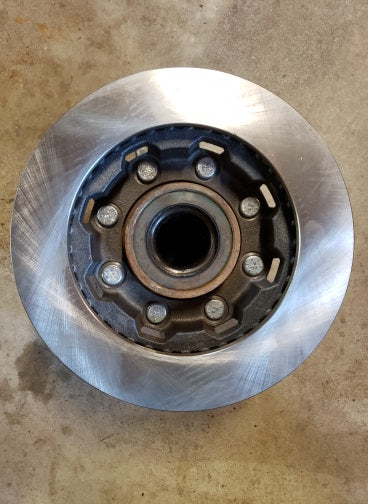

What it is: For Gm Dana 60 front axle to use 3/4 ton Dana 44 8 lug Caliper and Rotor.  We commonly use 1976 as a base year. The caliper from Raybestos is FRC4072 and 4071. The rotor is Raybestos 5014R.

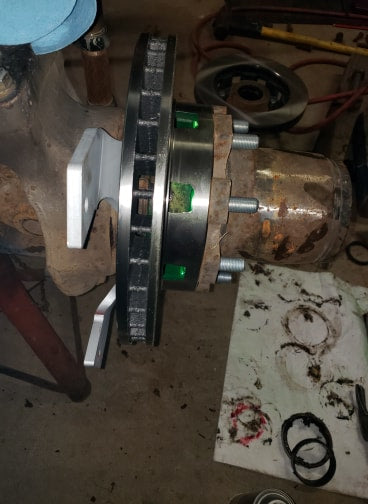

What it does: Allows the consumer to run a 15" 8 lug wheel on a Dana 60 without expensive custom hubs and Wilwood calipers. Minor sanding of caliper casting may be needed. Rotors may need stud holes drilled out. Kit also drops a considerable amount of weight by themselves. Standard back space of 3 3/4" or less required.

What you need: Dana 60 GM or Dodge axle, live spindle. 1976-1992 GM. Some Dodge axles from 80-92, best plan is replace the odd Dodge wheel hubs with aftermarket Chevy style. Will not fit Ford 5 stud spindles. 1976 era GM 3/4 ton (K20) Rotors, calipers, pads, etc.

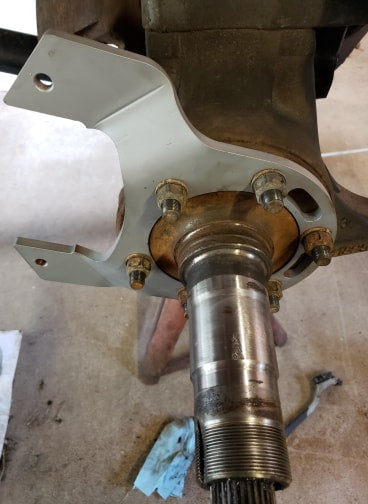

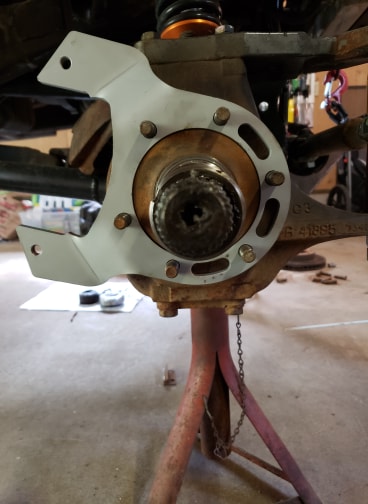

Brackets are made in America, laser cut and CNC formed 3/8" P&O steel, with caliper bolt holes tapped. These are shipped bare steel, ready for your paint, or powdercoating.
