Dana 60 spindle bearing replacment delrin bushing

Dana 60 spindle bearing replacment delrin bushing

D60-SDRB

$ 28.00
$ 28.00
Sale Sold out
Shipping calculated at checkout.
SKY’S OFFROAD DESIGN

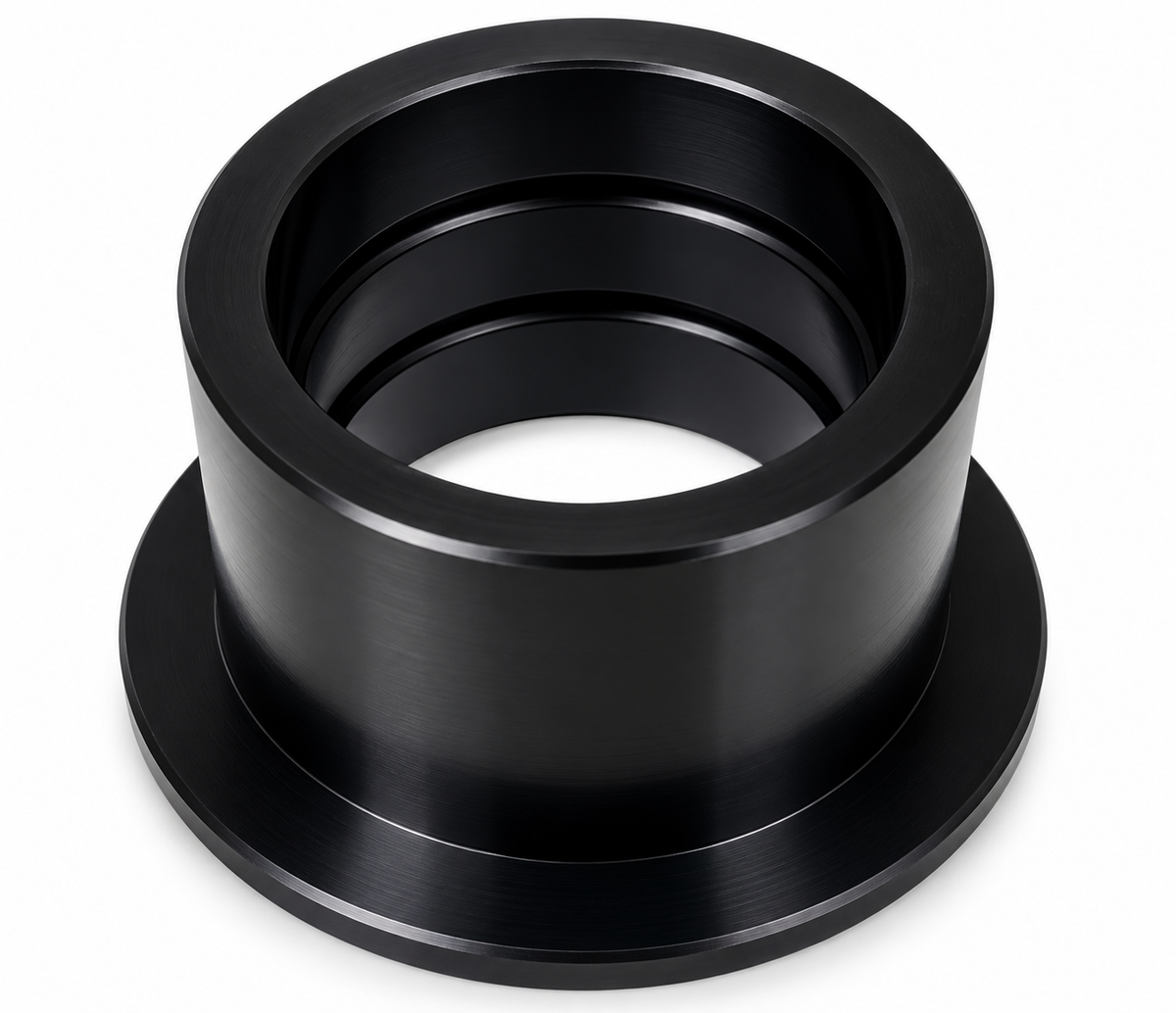

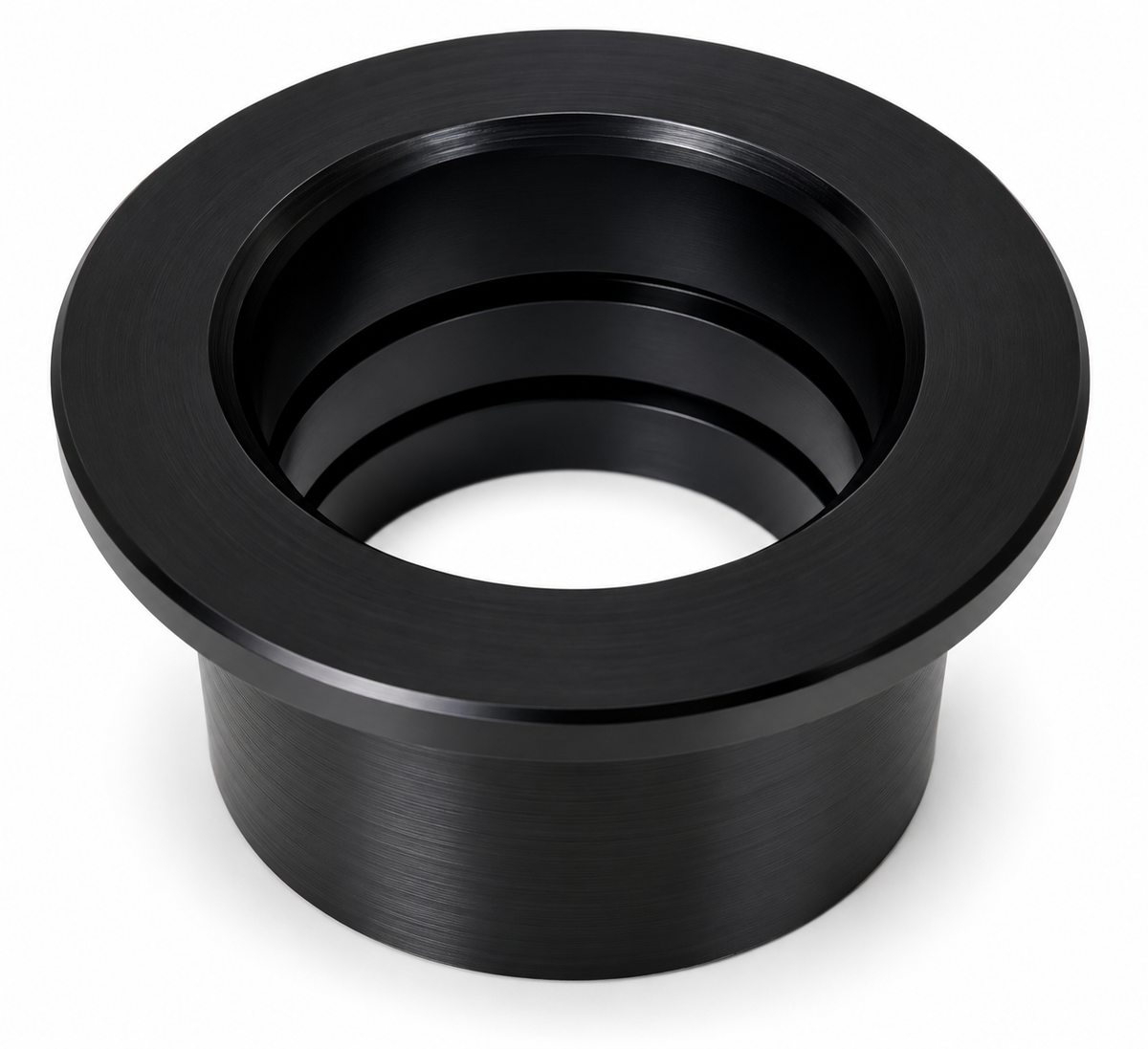

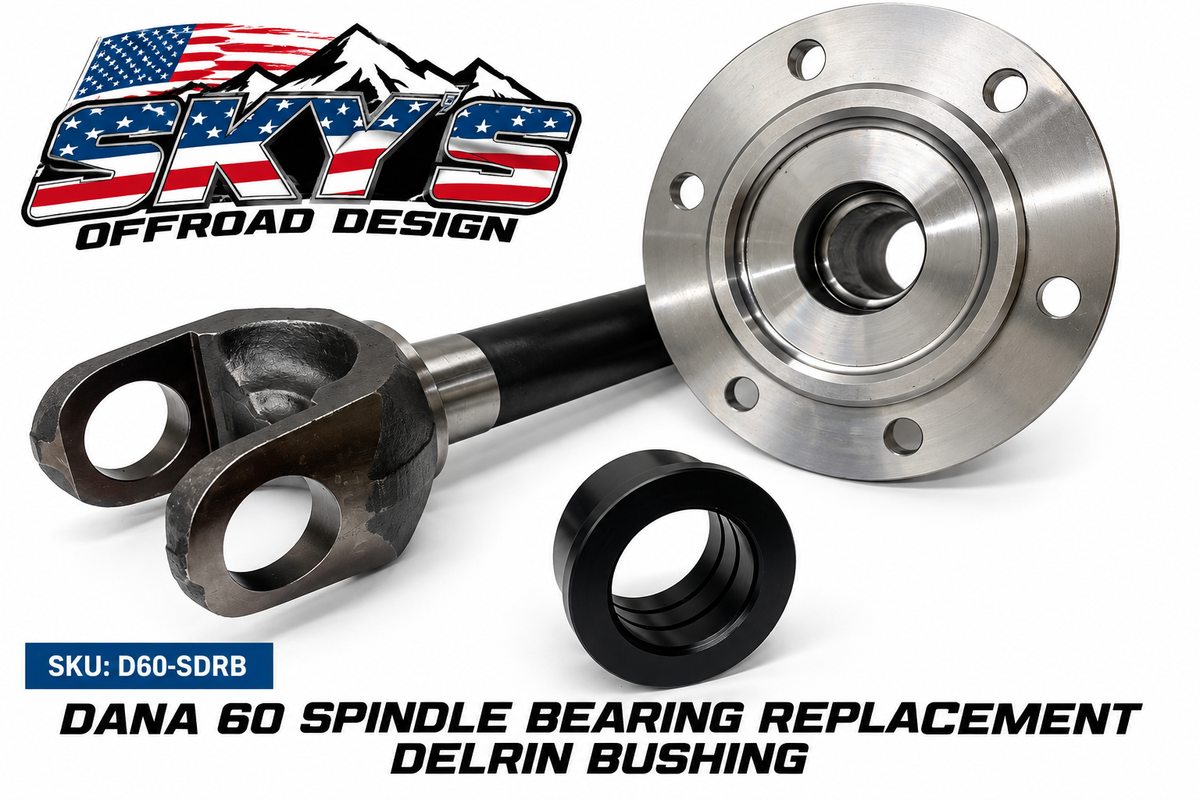

Dana 60 Spindle Bearing Replacement Flanged Delrin Bushing

SKU: D60-SDRB | Quantity: 1 bushing

Eliminate factory spindle needle bearings with a simple, integrated replacement.
Upgrade your Dana 60 front axle with Sky’s Offroad Design Flanged Delrin Spindle Bushing. This precision-machined,
low-friction bushing replaces the factory spindle needle bearing and integrates the thrust washer and seal functions into a
single flanged component.
Factory needle bearings can be exposed to mud, sand, water and debris during demanding off-road use. When worn or
damaged, they may contribute to wear on the spindle or axle stub shaft. Sky’s solid Delrin bushing eliminates the needle
rollers and provides an alternative bearing surface for the axle stub shaft, simplifying the spindle assembly for trail rigs, rock
crawlers and off-road trucks.

KEY FEATURES & BENEFITS:

• Factory bearing replacement: Replaces the original spindle needle bearing.
• Integrated flanged design: Incorporates the thrust washer and seal functions into the bushing; no separate thrust
washer or spindle seal is included.
• Precision-machined Delrin: Durable, low-friction material for demanding axle applications.
• Fewer separate components: Eliminates needle rollers and combines three functions in one part.
• Off-road focused: Solid bushing construction offers an alternative to a needle bearing in dirty, wet and muddy
environments.
• Light lubrication: A light coating of grease is recommended; petroleum jelly also works well.

CONFIRMED AXLE FITMENT:

• All kingpin-style Dana 60 front axles.
• Ford ball-joint Dana 60 front axles through 1997.
• 30-spline and 35-spline axle stub shafts.
DOES NOT FIT Ford Super Duty unit-bearing Dana 60 axles, including modified or bored unit-bearing assemblies.

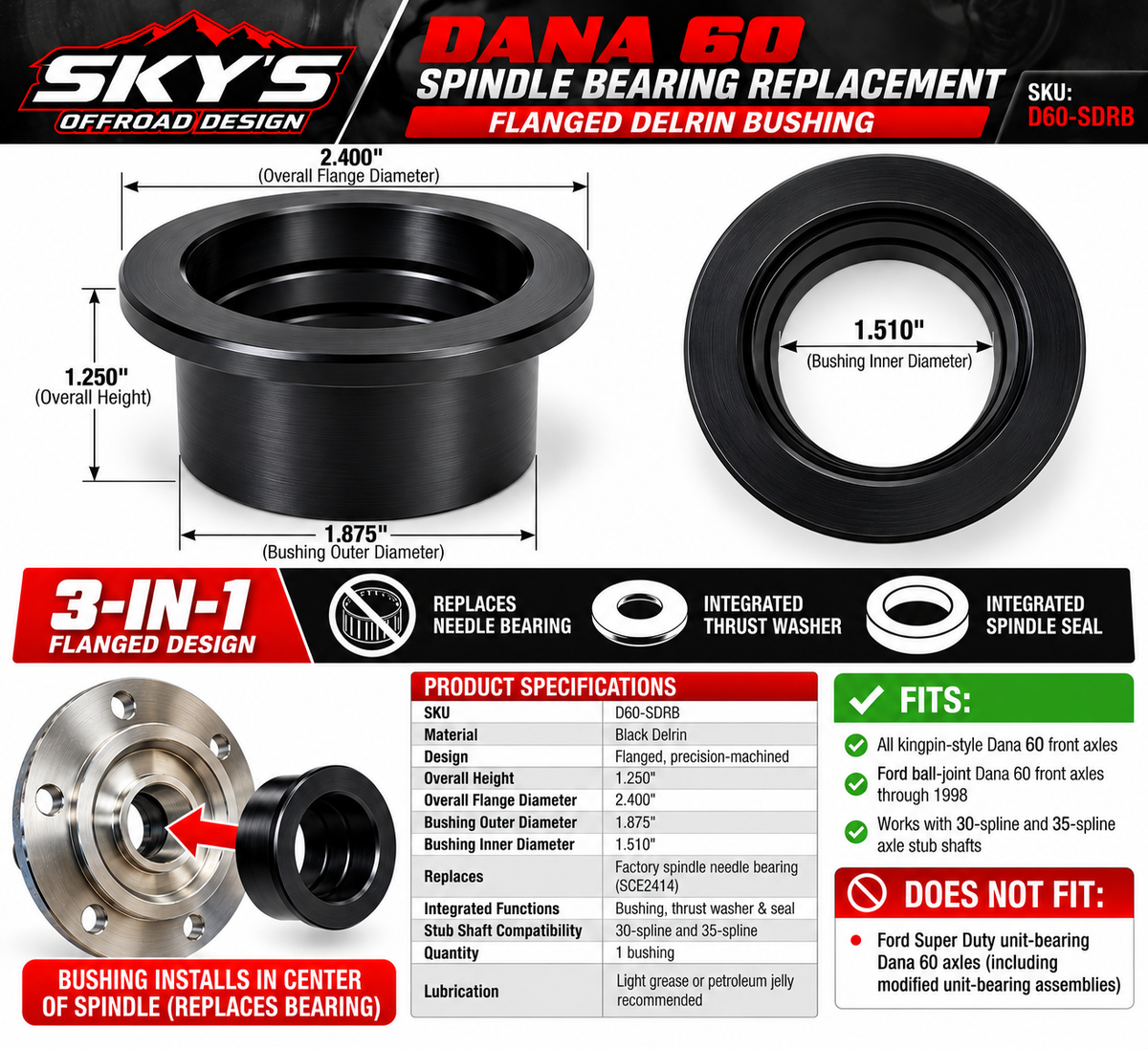

PRODUCT SPECIFICATIONS:

Product Dana 60 Spindle Bearing Replacement Bushing
SKU D60-SDRB
Material Black Delrin
Design Flanged, precision-machined bushing

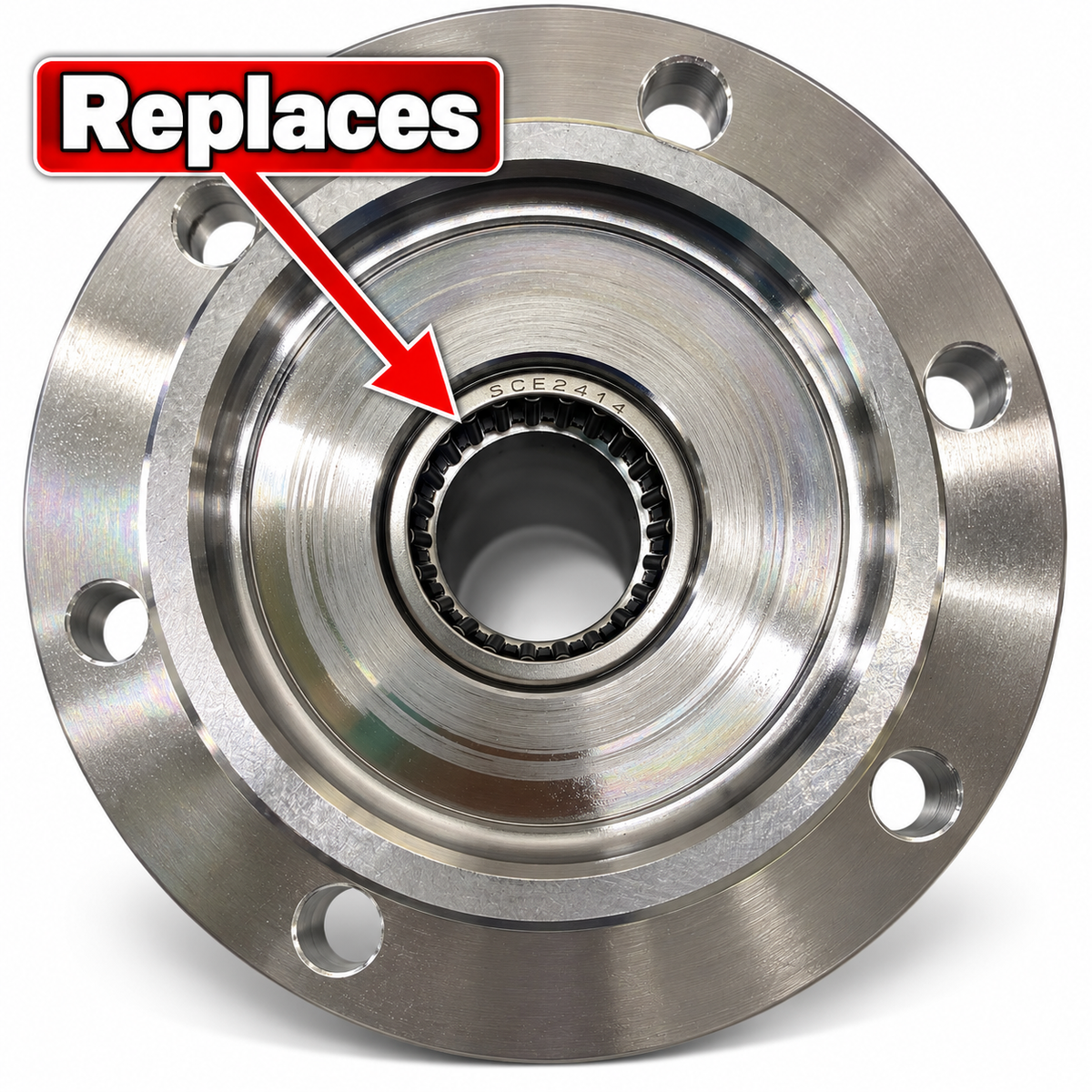

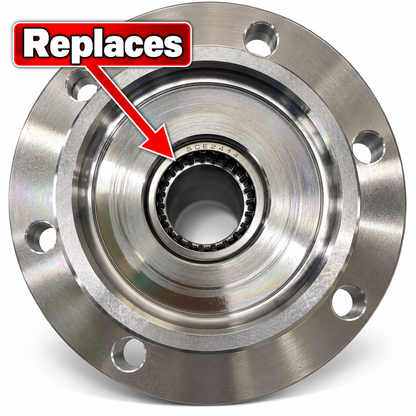

Replaces Factory spindle needle bearing (SCE2414 shown in reference photo)
Integrated functions Bearing surface, thrust washer and seal
Stub shaft fitment 30-spline and 35-spline
Quantity One (1) bushing
Lubrication Light grease recommended; petroleum jelly suitable

INSTALLATION RECOMMENDATIONS:

• Remove the factory spindle needle bearing and any separate components whose functions are replaced by the flanged
bushing.
• Clean and inspect the spindle bore and axle stub shaft for damage or excessive wear.
• Apply a light coating of grease or petroleum jelly to the appropriate contact surfaces.

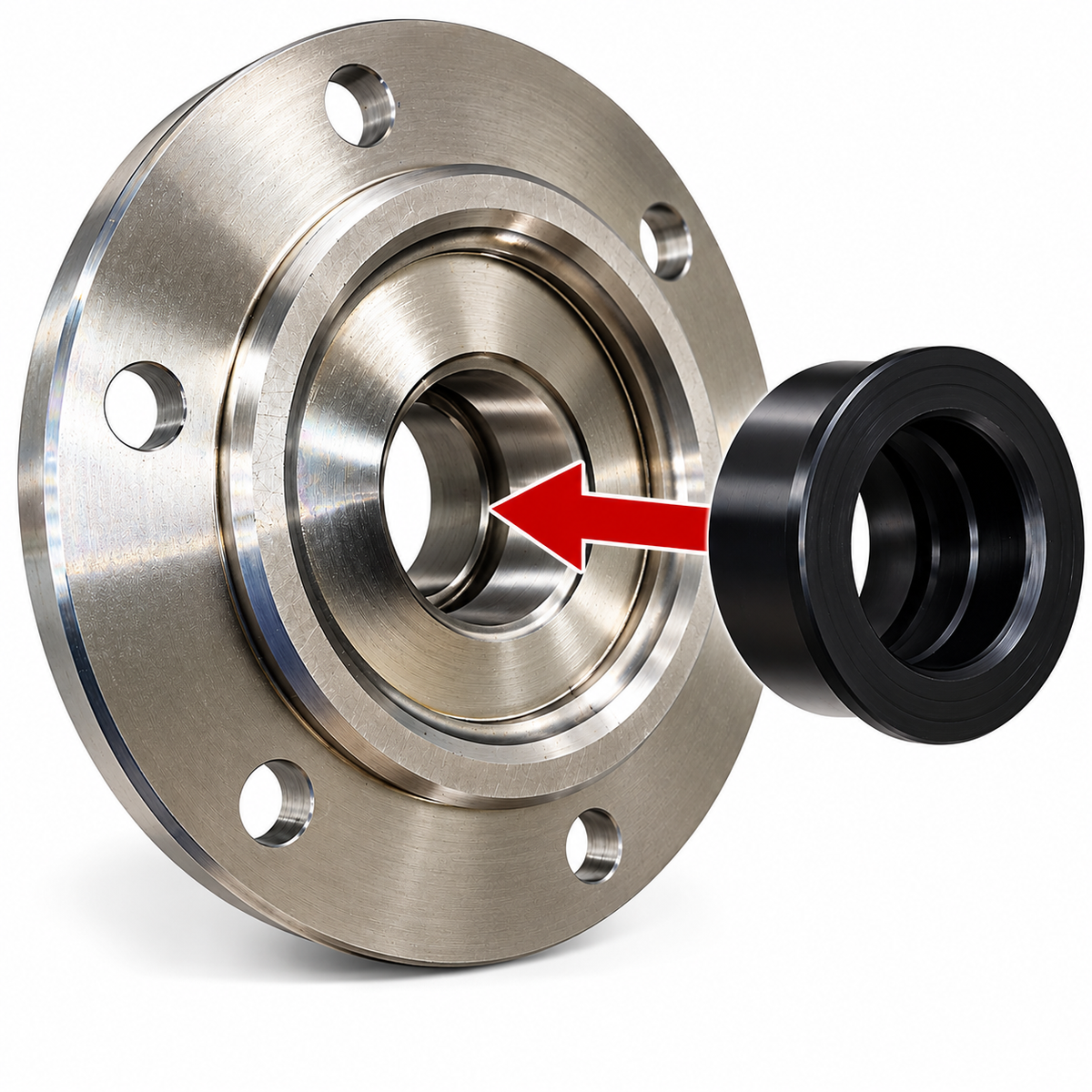

• Seat the Delrin bushing correctly in the spindle, with the flange properly positioned.
• Reassemble the axle and verify correct fit, clearance and operation before use.
Sky’s Offroad Design develops practical solutions for off-road enthusiasts and axle builders. Replace the factory
needle-bearing arrangement with a single flanged Delrin bushing designed to simplify your Dana 60 spindle assembly.
Sold individually — one flanged Delrin bushing per order. SKU: D60-SDRB.
