Dana 60 15" Wheel 6 Lug Disc Brake Brackets

Dana 60 6 Lug Conversion 15" Wheel Disc Brake Brackets

Are you tired of breaking Toyota axles, or GM 6 lug half ton parts, and have tons invested in tires and wheels, or just plain and simply want to build a lighter Dana 60 front axle?

Our brackets convert large Dana 60 Chevy or Dodge front axles to a 6 lug and GM metric calipers using 6 lug GM IFS rotors.  Significantly dropping weight and fitting 6x5.5” lug pattern 15" wheels on 1 ton axles.

You will need

  • Dana 60 Chevy or dodge axle, king pin only, 76-91 era.
  • Yukon 6 lug wheel hubs.
  • GM IFS rotor machined for wheel the hub
  • These conversion brackets.
  • GM metric calipers, anything from wrecking yard to Wilwood after market will be fine. Wheel studs, included in our kit, Dorman # 610-347.

Brackets fit Dodge or Chevy Dana 60 6 spindle bolt knuckles.

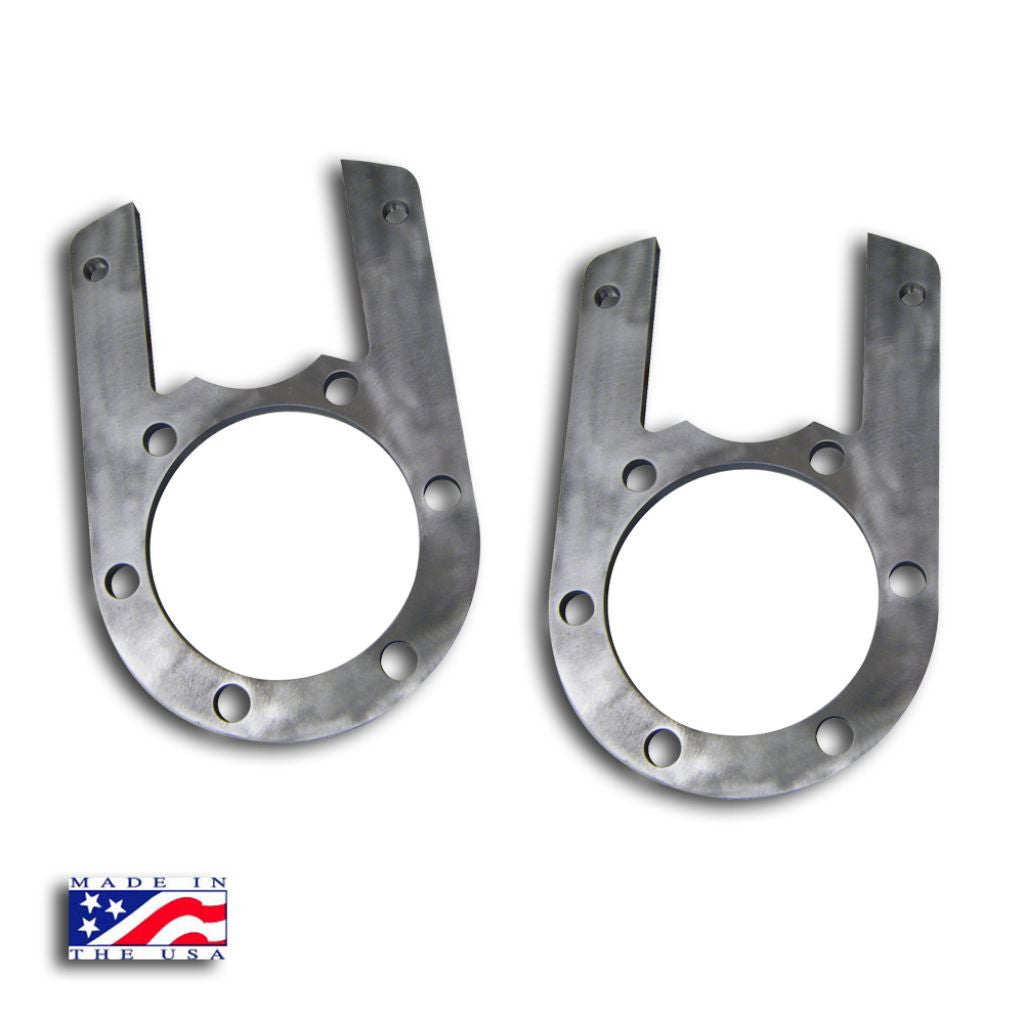

Brackets are laser cut and cnc machined 3/8” P&O steel, designed for use with GM metric calipers ( common 79-85 Monte Carlo, Eldorado, etc. NOT the “big bore” aftermarket version). Brackets work with Yukon 6 lug wheel hubs and are a direct bolt on. Using this combination will allow the use of 15 inch wheels with a 3 3/4 backspace max.

Will not work with 8 lug hubs and brake rotors. See our Dana-60-15-8 brackets for this option.

Brackets are shipped raw.

Customer Reviews

Based on 1 review Write a review

Customer Reviews

Based on 1 review
John Snell
Used on Ultra 4 Rig to Chevy Outers

We have been racing for almost two years with this setup and it has been flawless. We started with a junkyard for d60, but wanted to have 6 on 5.5 bolt pattern, and also wanted to convert the outers to Chevy. To use this we just had to drill out the knuckle to match the Chevy spindle. Once this was done it all came together.

Glad to have support like yourselves out there putting hard use on our products John!
