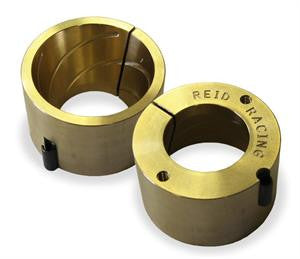

Dana 60 Bronze Upper Kingpin Bushings

Reid Heavy-Duty bronze upper kingpin bushings for Dana 60 steering knuckles are designed to replace the OEM nylon cone bushings in severe-duty applications where the OEM bushings succumb to accelerated wear and premature breakage. Bushings are designed specifically for rockcrawling, rockracing, and other extreme off-road motorsports.

*Designed to be used with aftermarket adjustable-preload highsteer arms or shimmed "spring eliminator kits" instead of the OEM spring and cap retainer.

Machined from the highest-grade alloy of any other kingpin bushings for unsurpassed tensile strength and resistance to extrusion, galling, and wear.*

*Included roll pin prevents rotation of the bushing within the knuckle.

*Unique design increases surface area in the highest-stressed areas of the bushing face.

*Improved grease passages allow proper pressure greasing and easier servicing.

*Eliminates steering shimmy common to kingpin knuckles.

*Threaded extraction holes simplify removal.
