Build Your Own Panhard Bar Kit

$ 179.00

Part Number: SKY-BYOPHD-001

Sky's now manufactures and stocks a Build your own pan hard bar kit.

Kit is designed for the fabricator ( do it your self-er) who can cut and weld as needed to make geometry match as needed.

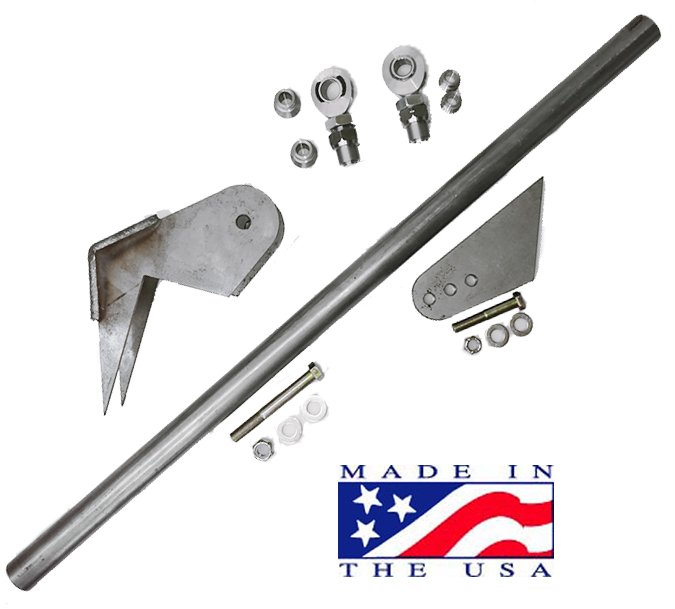

Kit includes:

36" of 1.5" x .25" wall DOM tube.

7/8x14 threaded inserts 1 RH and 1 LH.

1 7/8x14 hiem joint for frame side mount with 9/16ths mis align spacers, extra wide.

1 7/8x14 poly bushing link end for axle mounted tabs.

2 7/8x14 jam nuts 1 RH and 1 LH.

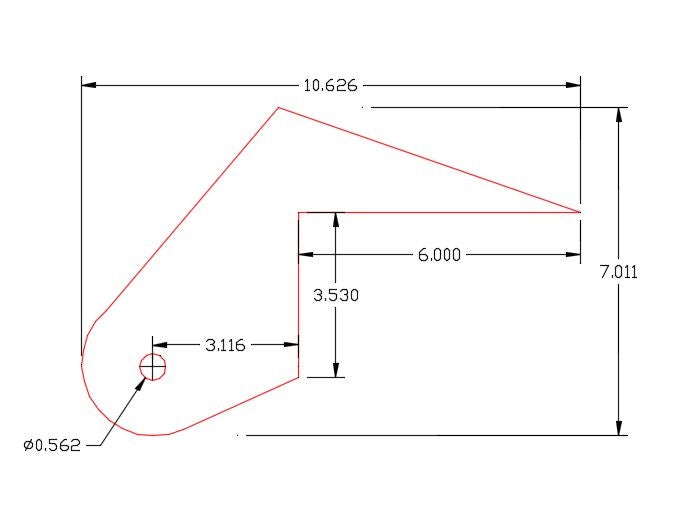

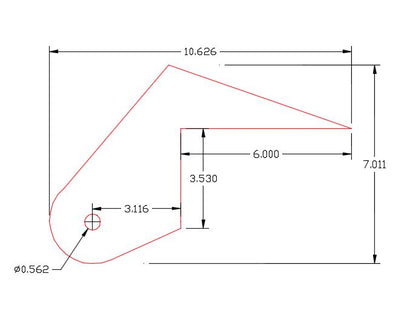

Frame mount spaced for large angle hiem.

3 position tabs for spring plate to accommodate bushing style end. 1/2" eye.
