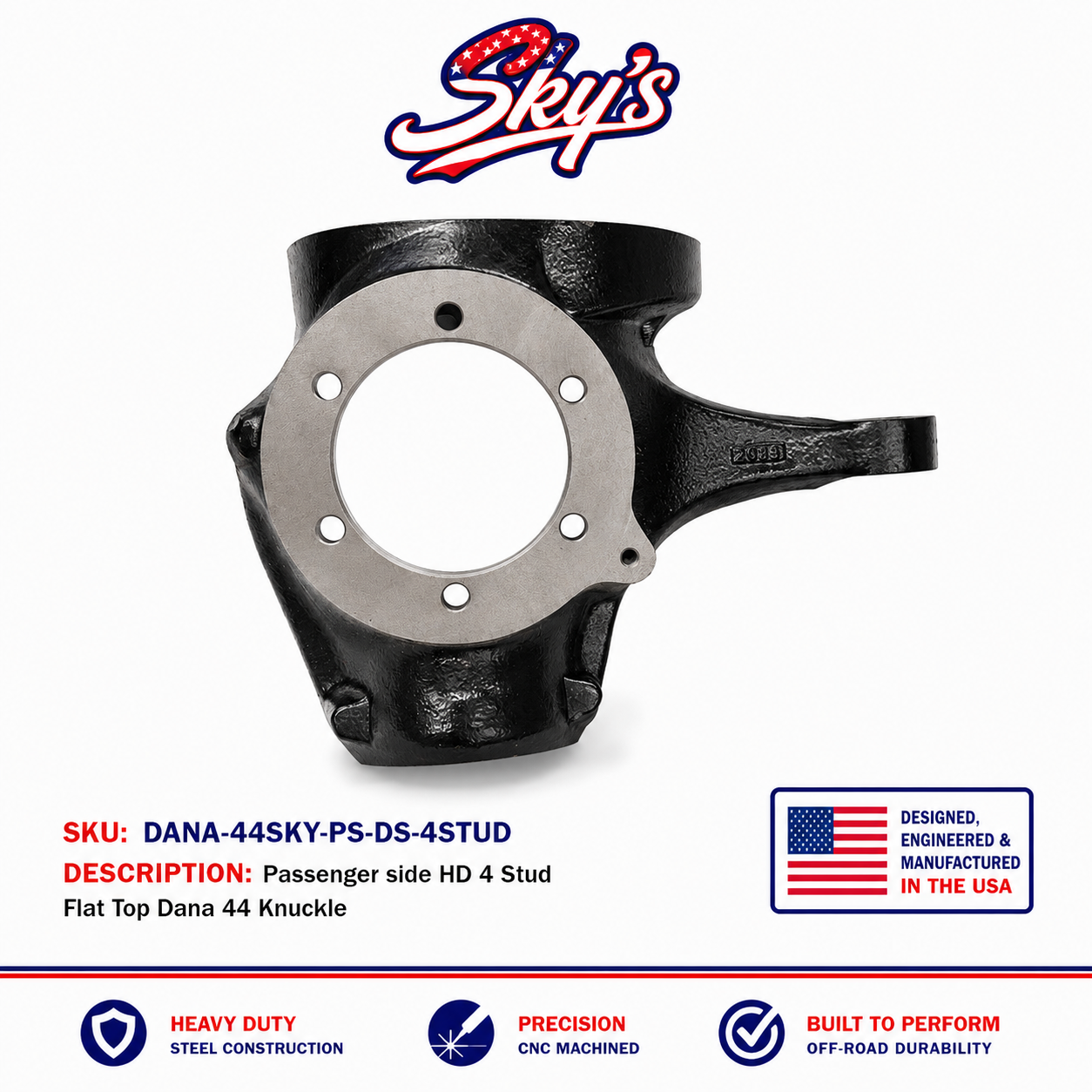

New HD 4 Stud Flat Top Dana 44 Knuckles

Chevy/Jeep 6 bolt spindle pattern accepts "outers" from all open knuckle Chevy and Jeep Dana 44, Dana 30, and 10-bolt front axles to 1986

• Cast from high strength ductile iron
• Beefed up with extra material and ribbing
• Flat tops machined and drilled for high steer arms
• Fourth Stud hole added for extra strength, can use 3 stud or 4 stud arms

• Tapered tie rod holes accept factory tie rod ends
• Tie rod holes can be drilled to accept 3/4" heim ends
• Coated Black for corrosion protection
• Interchangeable with all factory and aftermarket 6 bolt spindle Dana 44 components
• Fully machined and ready for installation

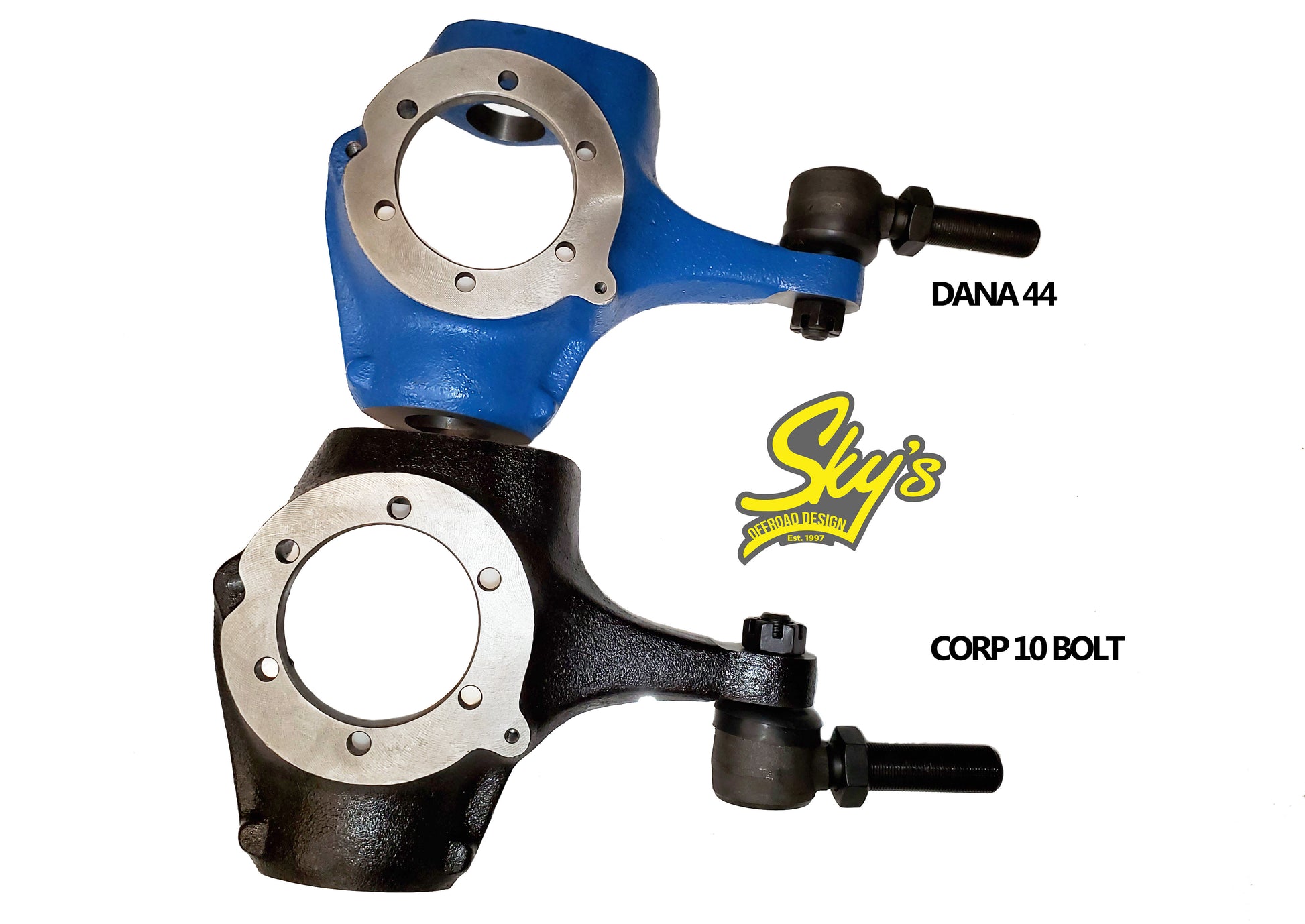

• Tie rod hole is tapered from the top to the bottom. Can be used to upgrade 1981-1991 Corp 10 Bolt that have a bottom up taper.

• Common knuckle these replace is casting number C36519/C36520 1973-1974 Chevy and GM 4x4's.

• K5 Blazer/Jimmy, K10/K15/K1500/V1500, and K20/K25/K2500/V2500 4x4's: 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
  GM Dana 44 Front Axle: 1979, 1980
•  1971-1972 Chevy and GMC 4x4's with Disc Brakes. Casting Number C35686

Will fit EARLY Dana 30 axles with minor modification.

*note colors vary. May be black, grey or blue

Only sold in pairs
