Toyota Hilux Front Lift Leaf Springs

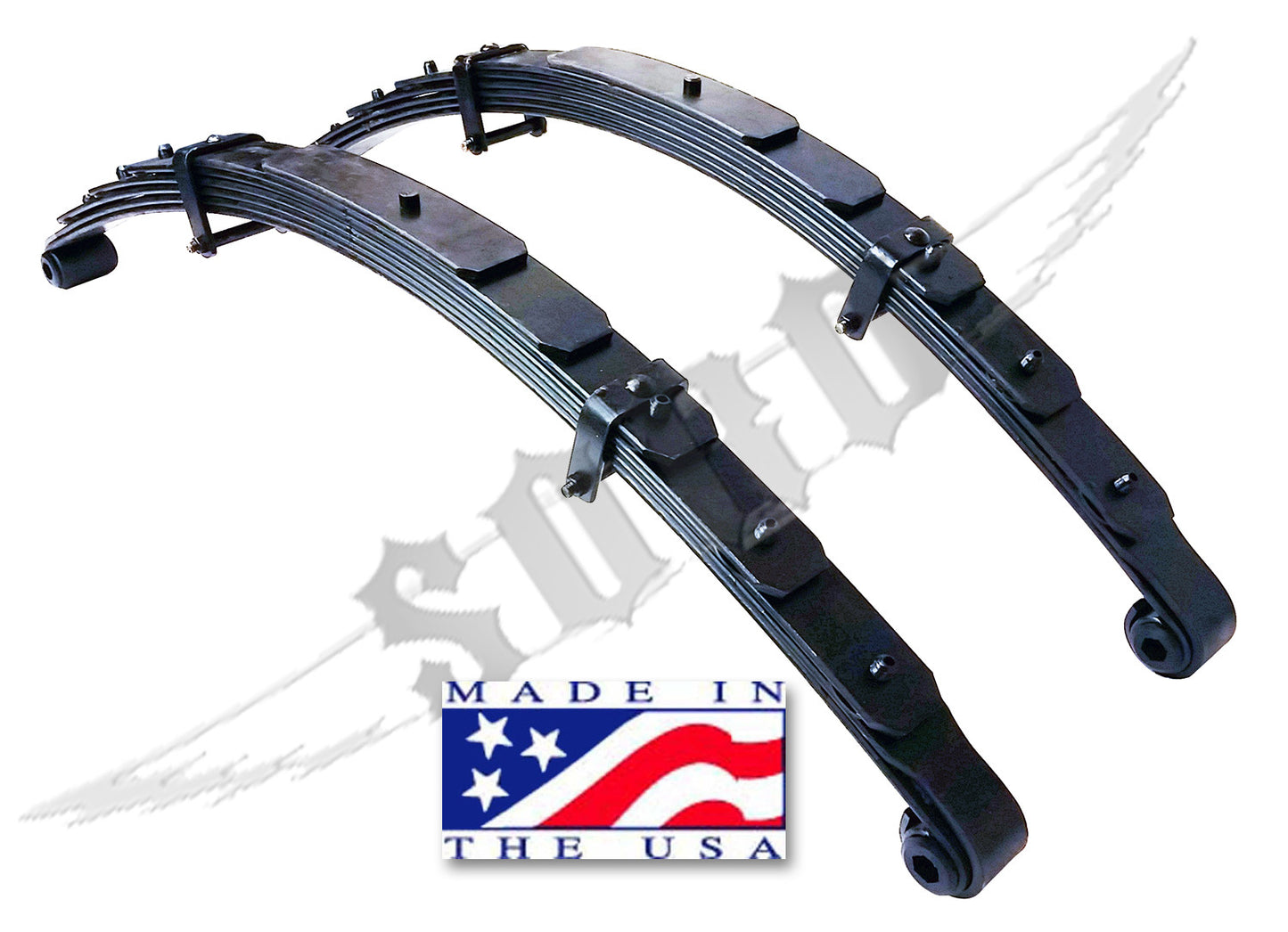

Sky Manufacturing's lift springs for Toyota trucks.

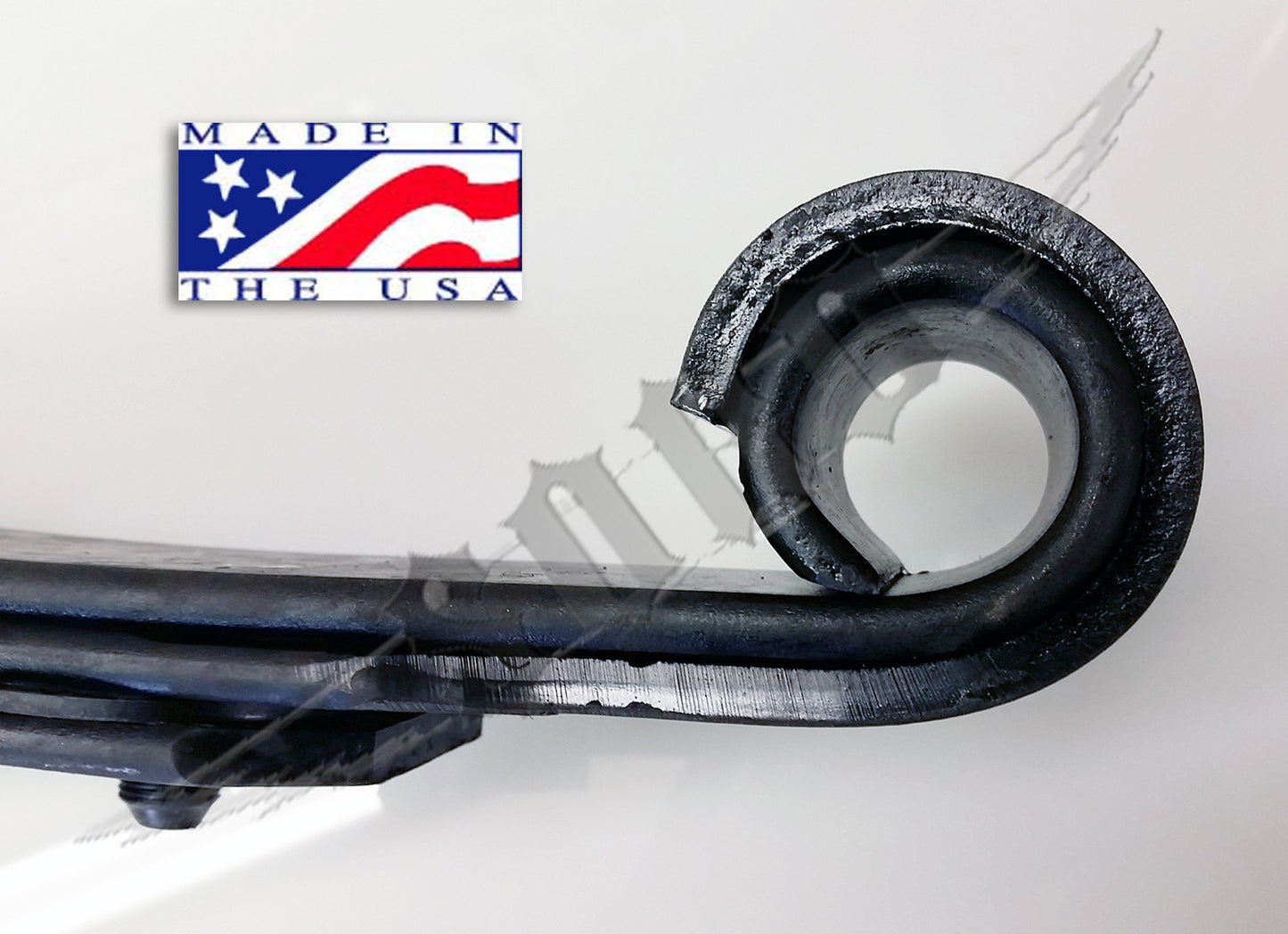

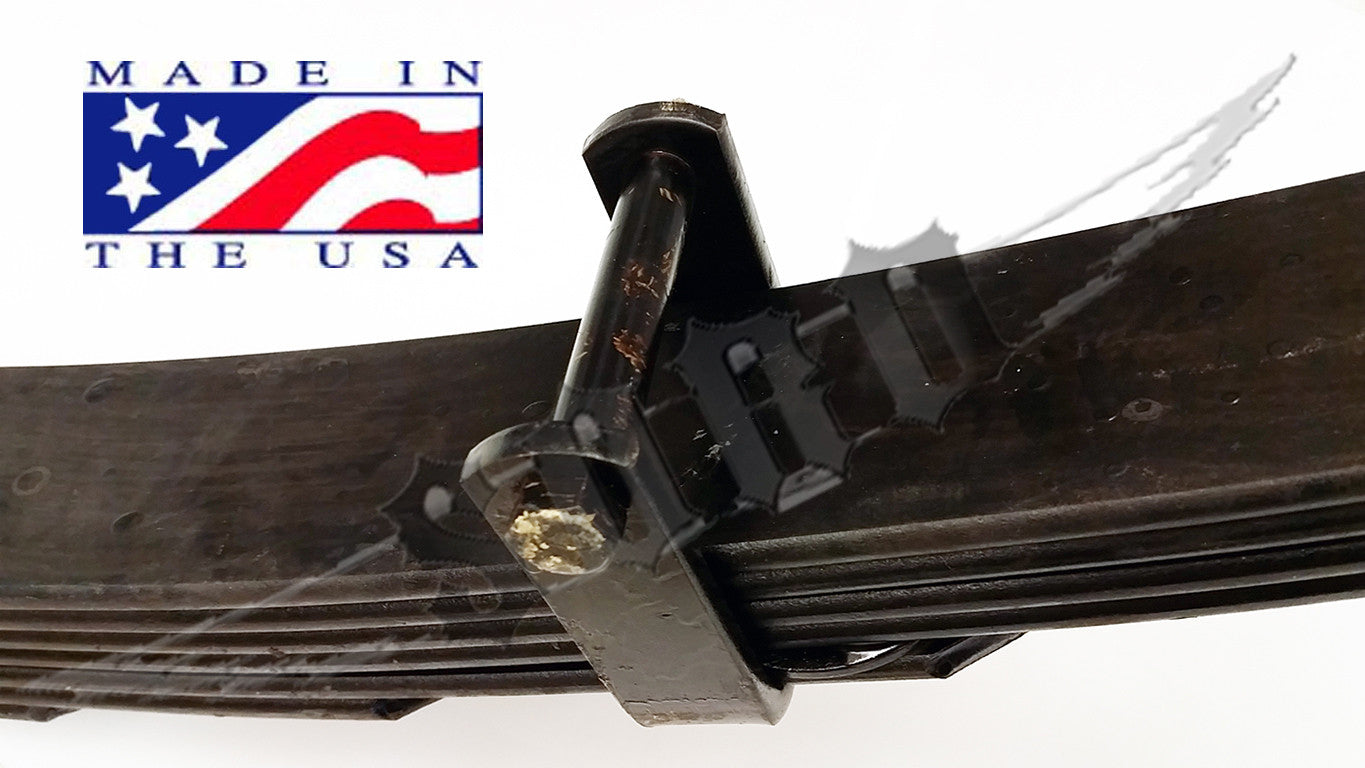

2F Springs offer 5 inch's of lift, full military wrap, bolt contained spring clamps, not crush style fold over clamps such as many less expensive over seas made springs.This allows up to 3 inch's of extra travel and eliminates weak points in the springs.

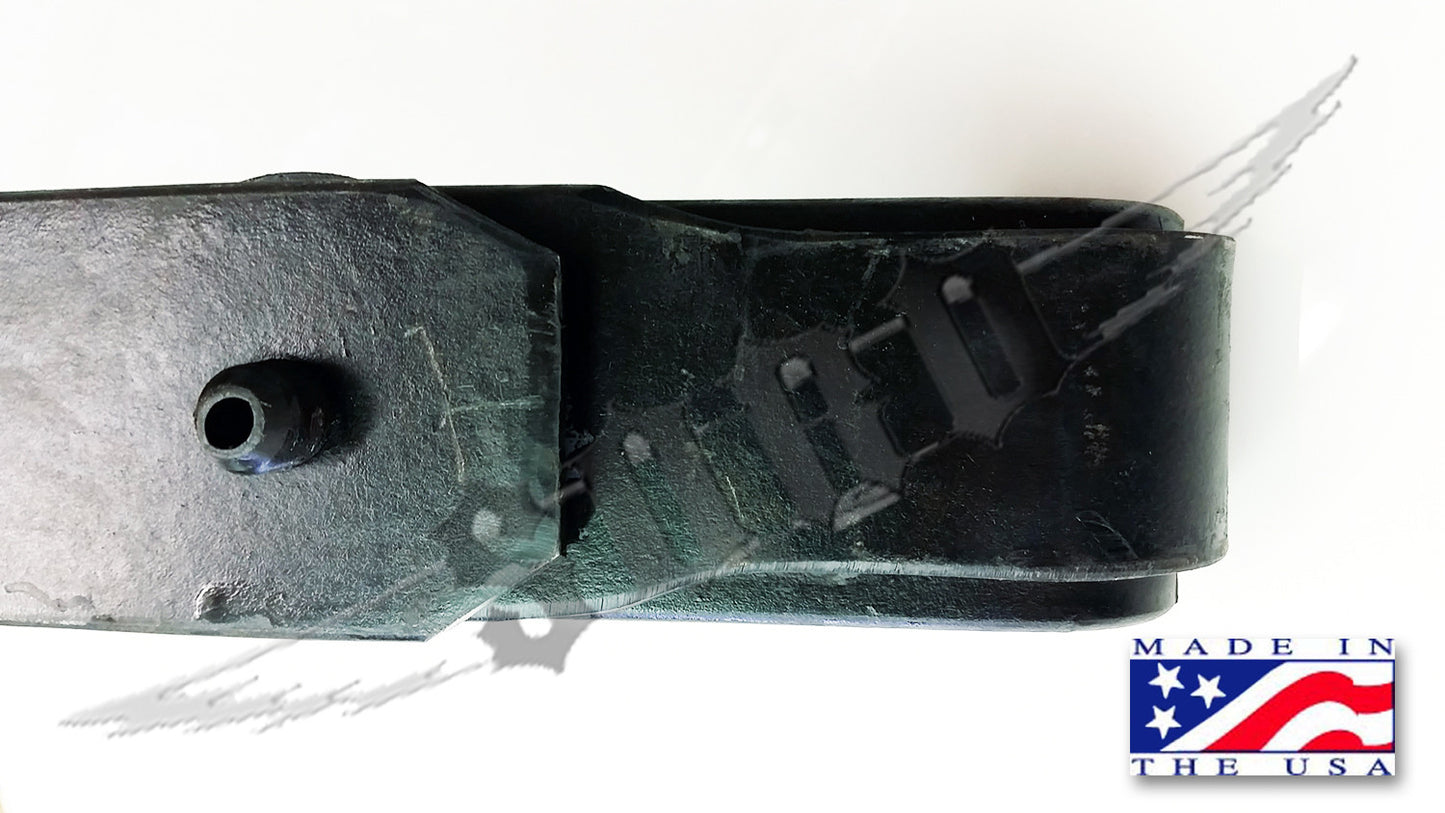

Each leaf is tapered and dog eared, allowing smoother ride quality. We also use high quality spring isolate pads to allow squeak free movement of the springs.
60 mm wide spring steel (matches factory Toyota). Springs are 1.5 inch longer than stock ( 47 inch) , with the front axle spring pin eye moved 2 inch's forward. This is 1 inch further than other aftermarket springs.
Springs include poly urethane bushings, not hard plastic like others.
American made spring steel insures higher quality, longer life, and more precise lift and fit.
Springs are made left and right with slightly more arch on the driver side, just like Toyota did factory. This eliminated bandage fix's such as "shim" plates.
Springs are stocked in 2F 5 inch version, 3-4-6 inch available with 2 week lead time generally for manufacture.

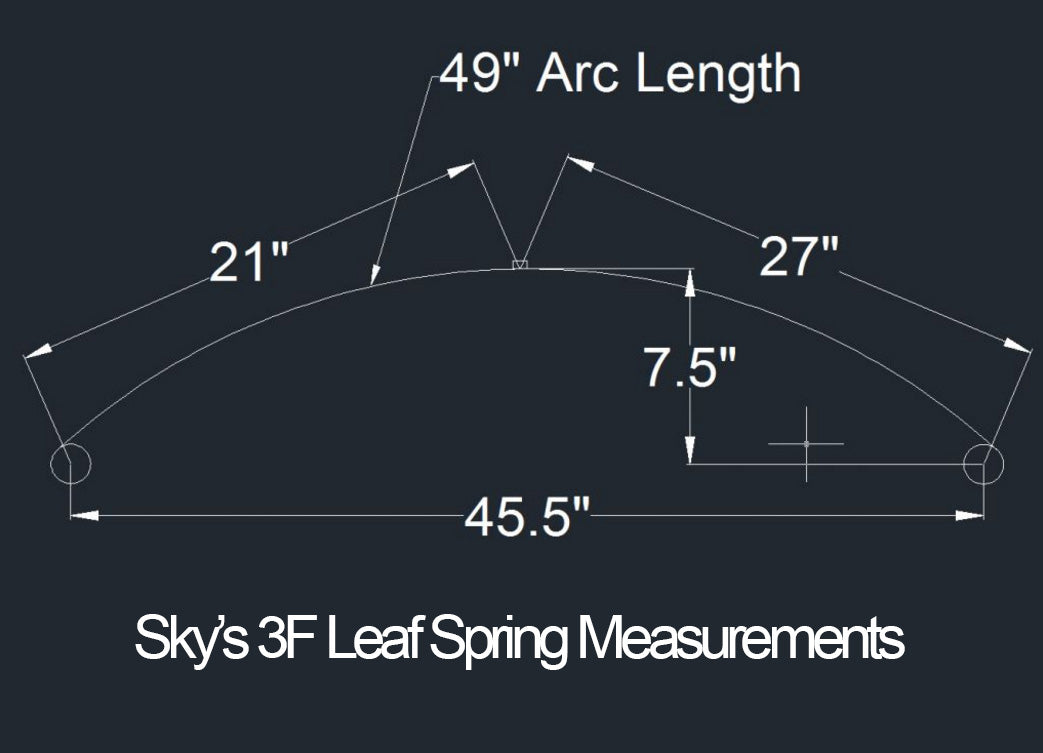

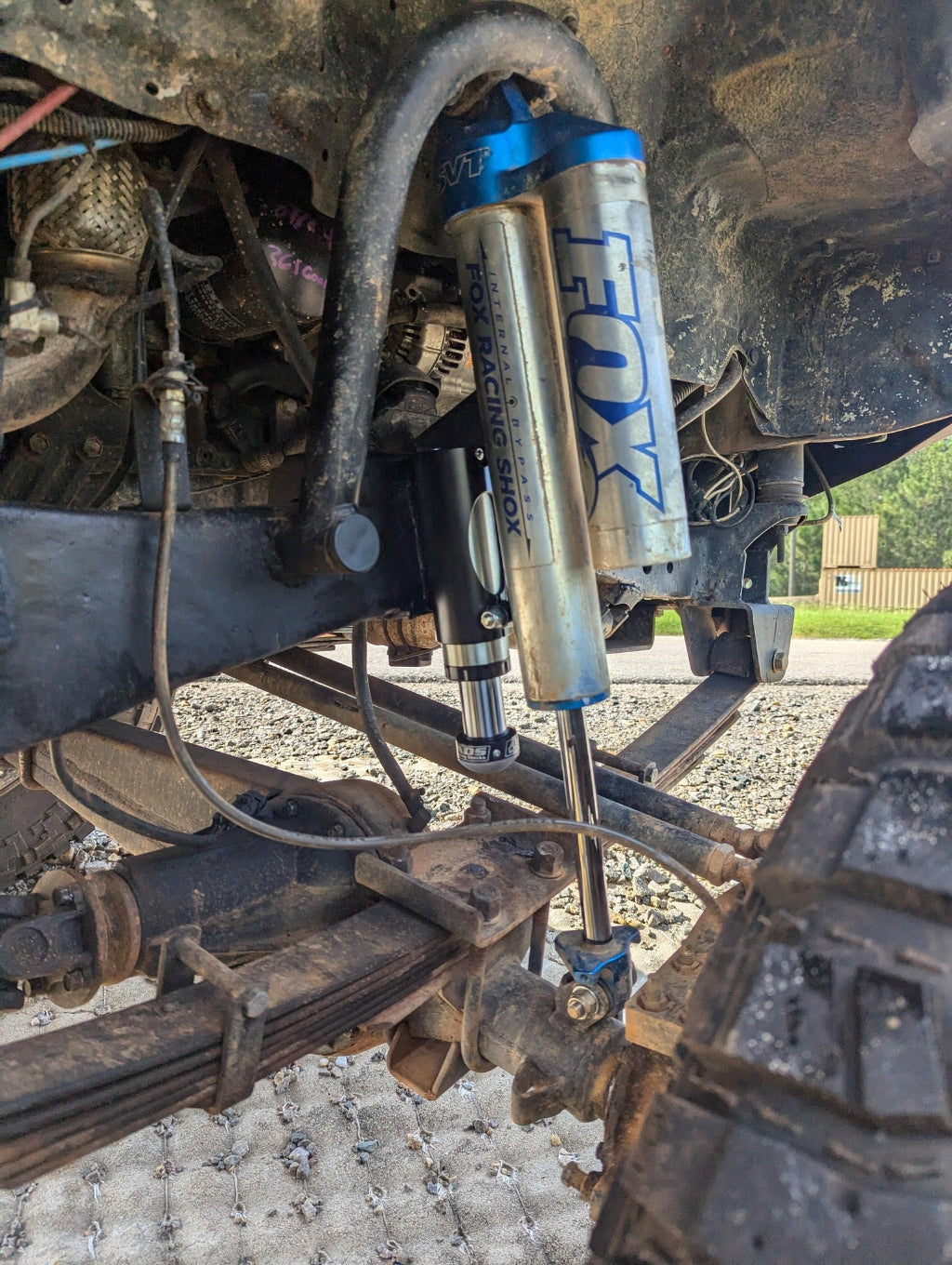

We also offer a more unique spring than any production company normally carries, What we like to call the Crawler Spring! This is our 3F 2.5" lift spring. Designed after the popular rear up front ( RUF conversion ), these springs offer little lift, move the axle forward considerably, and are longer than other production front long travel Toyota leaf springs.

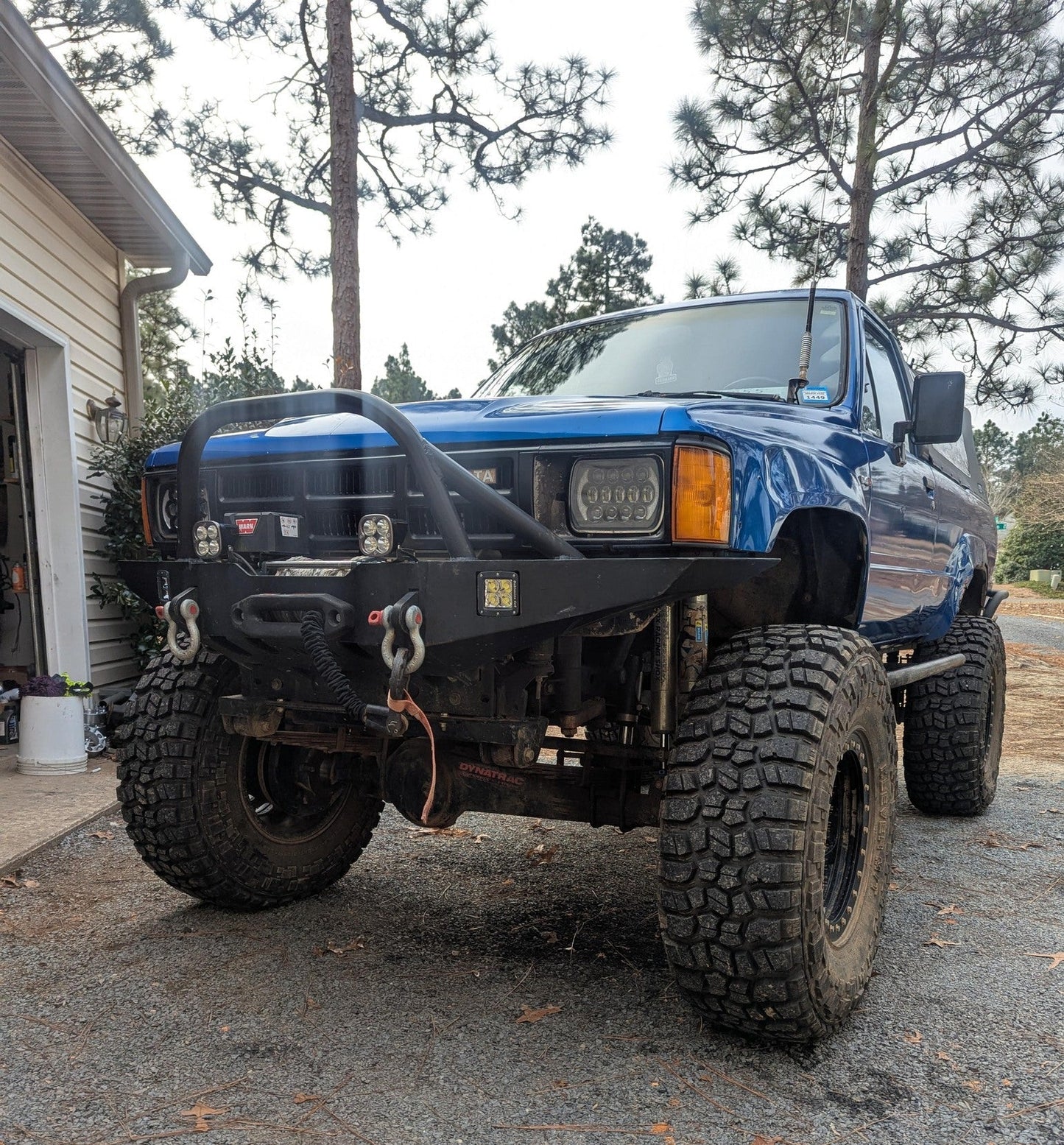

Commonly we use these on trucks wanting to run a 40 inch tire, not be towering them, keep it stable. 4-5 inch's of lift, and 40's? Yes that's where these springs shine. Note: you will need to trim sheet metal, lots of it!
2.5 inch lift Crawler springs - June 1st 2017 we are running about 2.5 weeks out on all springs. Were getting flooded with orders and filling them as fast as possible.
These springs will lift your truck 2.5 inch from stock, are 1 inch longer towards the rear than our standard springs, and have the spring pin moved 3 inch's forward of stock. Crawler Springs are made of the same excellent quality of our other in house brand springs. Price $499pr.
