Application: 79-95 Toyota Pickups and 84-89 4Runners
BE SURE TO CHOOSE PICKUP OR 4RUNNER
CNC machined black UHMW body blocks have proven to be perfect for this application. The kit comes with all bolts, nuts, washers, and body blocks. You will receive extra 3/8ths hardware, depending on the year of vehicle, you will use either the longer or shorter bolts, or a combination of both.
Included:

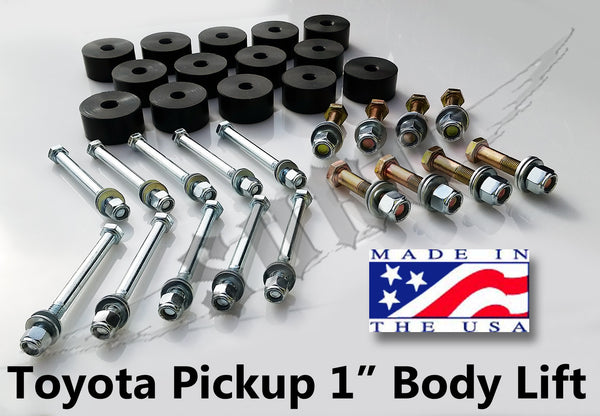

Toyota Pickup 1” Body Lift
14
1" Body Blocks
8
1/2-20-2.5" Bolts
16
1/2 Washers
8
1/2 Nylocks
6
3/8-16-4" Bolts
4
3/8-16-4.5" Bolts
6
3/8-16 Nylocks
6
3/8 Flat Washers

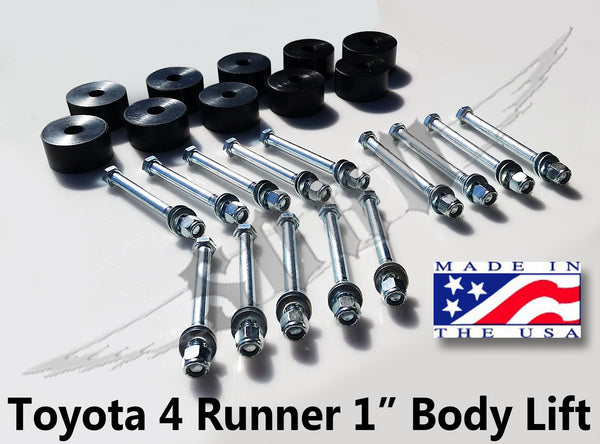

Toyota 1st Gen 4Runner 1” Body Lift
10
1" Body Blocks
10
3/8-16-4" Bolts
4
3/8-16-4.5" Bolts
10
3/8-16 Nylocks
10
3/8 Flat Washers
Toyota 2nd Gen 4Runner 1” Body Lift
10
1" Body Blocks
4
3/8-16-6" Bolts
4
3/8-16-5" Bolts
2
3/8-16-4" Bolts
10
3/8-16 Nylocks
10
3/8 Flat Washers
4Runner uses 10 body blocks, pickups use 14; 4Runner uses all 3/8" bolts; Pickup uses 6 3/8" The cab, 8 1/2" bolts for the bed. 3/8" bolts are 4 inches long, with extra 4.5 needed for some cab bushings in both pickup and 1st Gen 4Runner. 1/2" bolts are 2.5 inches long.
Start with the cab on pickups, pull the carpet away from body mounts, remove plastic caps if equipped, loosen bolts--2 are under the grill, 2 at floor boards of cab and 2 at rear of the cab.
Remove bolts one side at a time, remove large press on washer if equipped, drill if needed to fit 3/8ths bolts, determine which length of 3/8ths bolt you will need to use by measuring original hardware. Jack cab up, checking for radiator fan shroud clearance, slotting mounting holes slightly may be needed. Install new 1 inch blocks, set cab down with bolts loose. Repeat other side. Final step, square cab to bed, double check radiator hoes, wires under hood, and tighten bolts.
Check shifter clearance, some Toyota’s have multiple insulator boots, removing all but one generally allows full use of shifters.
Bed: Remove bolts, check for tail light wires having enough play to allow 1 inch lift, loosen if needed. Loosen and move filler neck hose and vent tube ¾ inch upwards, tighten clamps, you’ll notice 1st time you fill up if you missed the tighten part of this step. Raise bed, install body blocks, and nuts washers. Square bed, tighten hardware.
4Runners follow same steps, but lift one side of the vehicle at a time and install blocks, leave loose until body is lifted and square to frame, then tighten.
