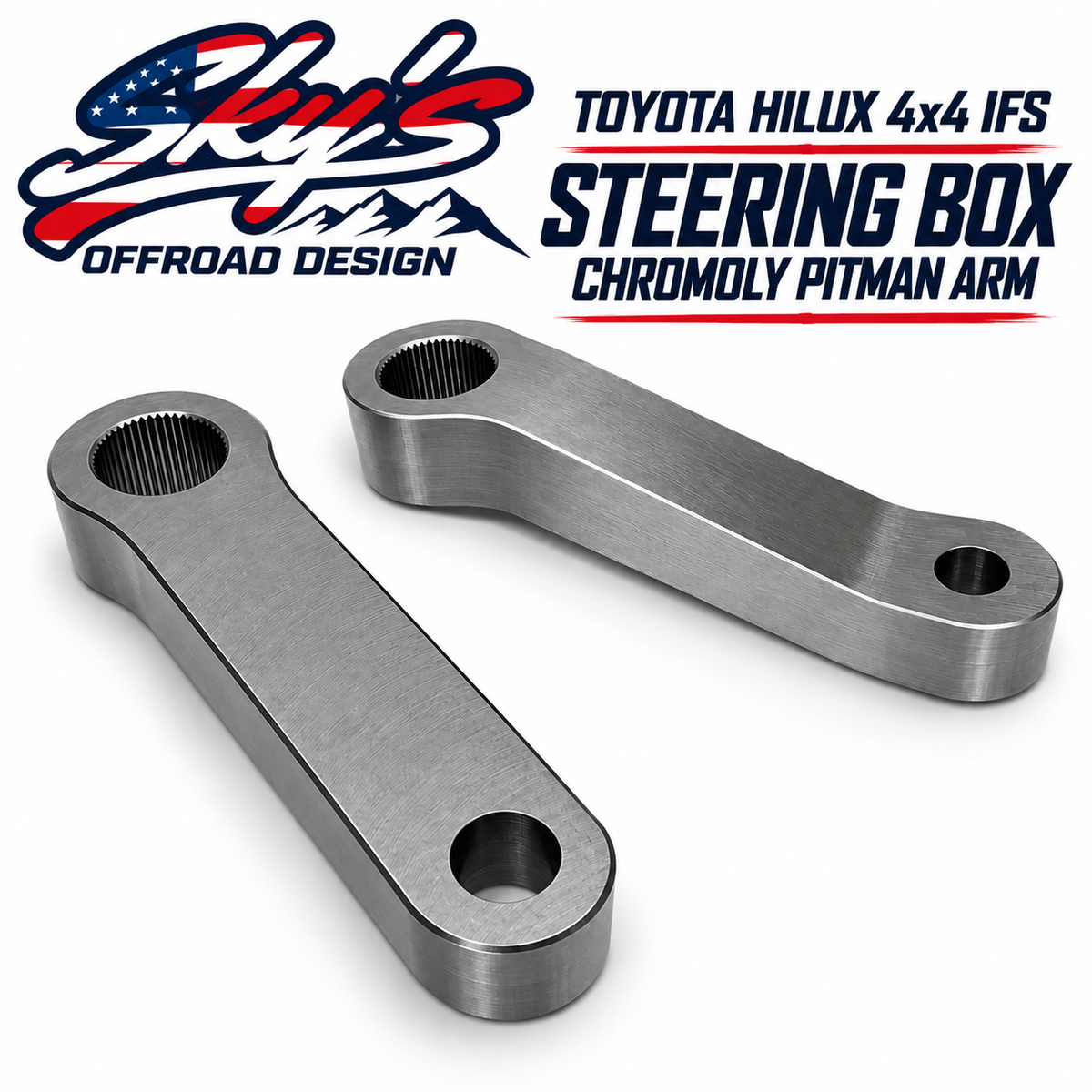

Toyota Hilux 4x4 IFS Steering Box Chromoly Pitman Arm

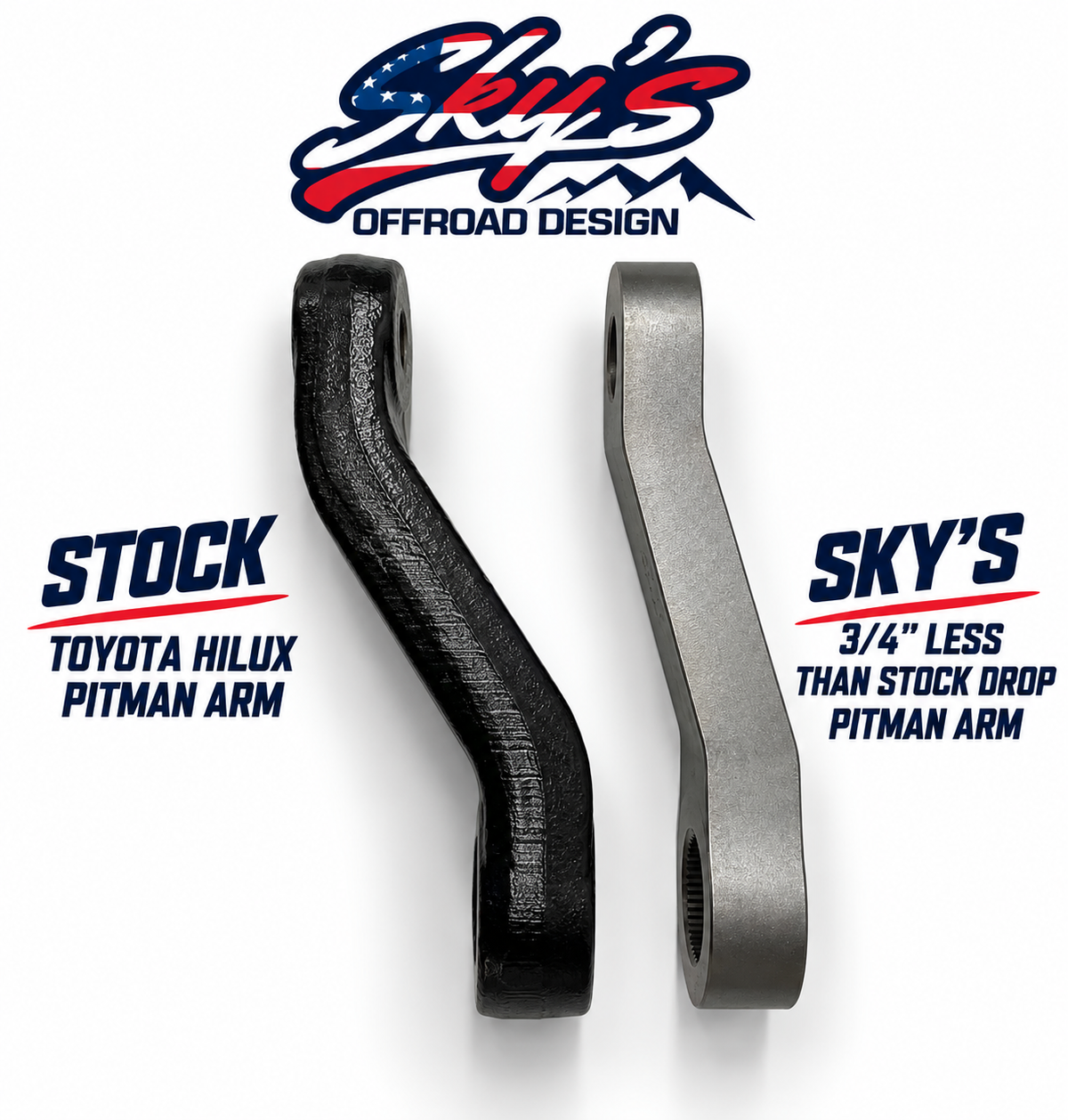

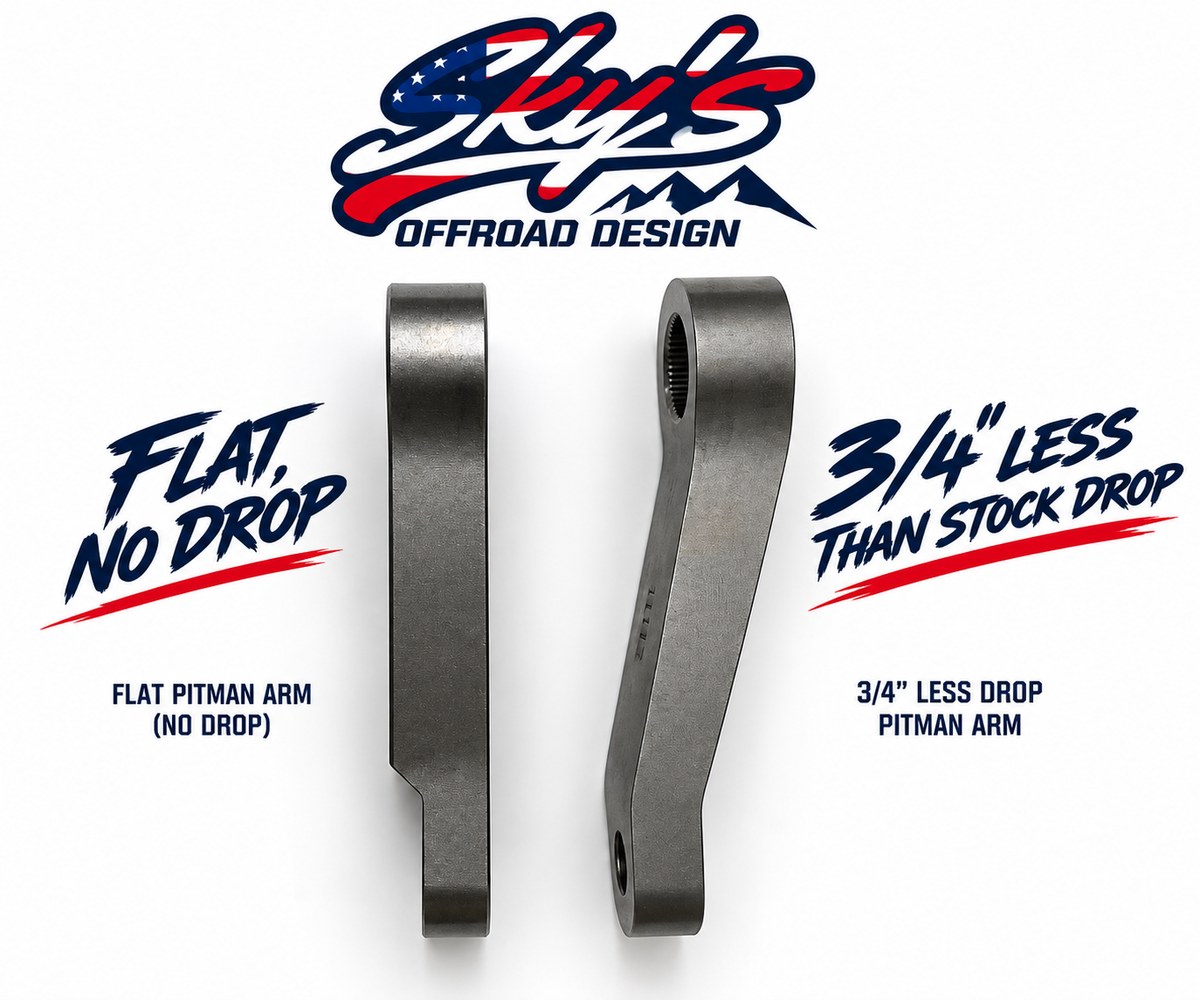

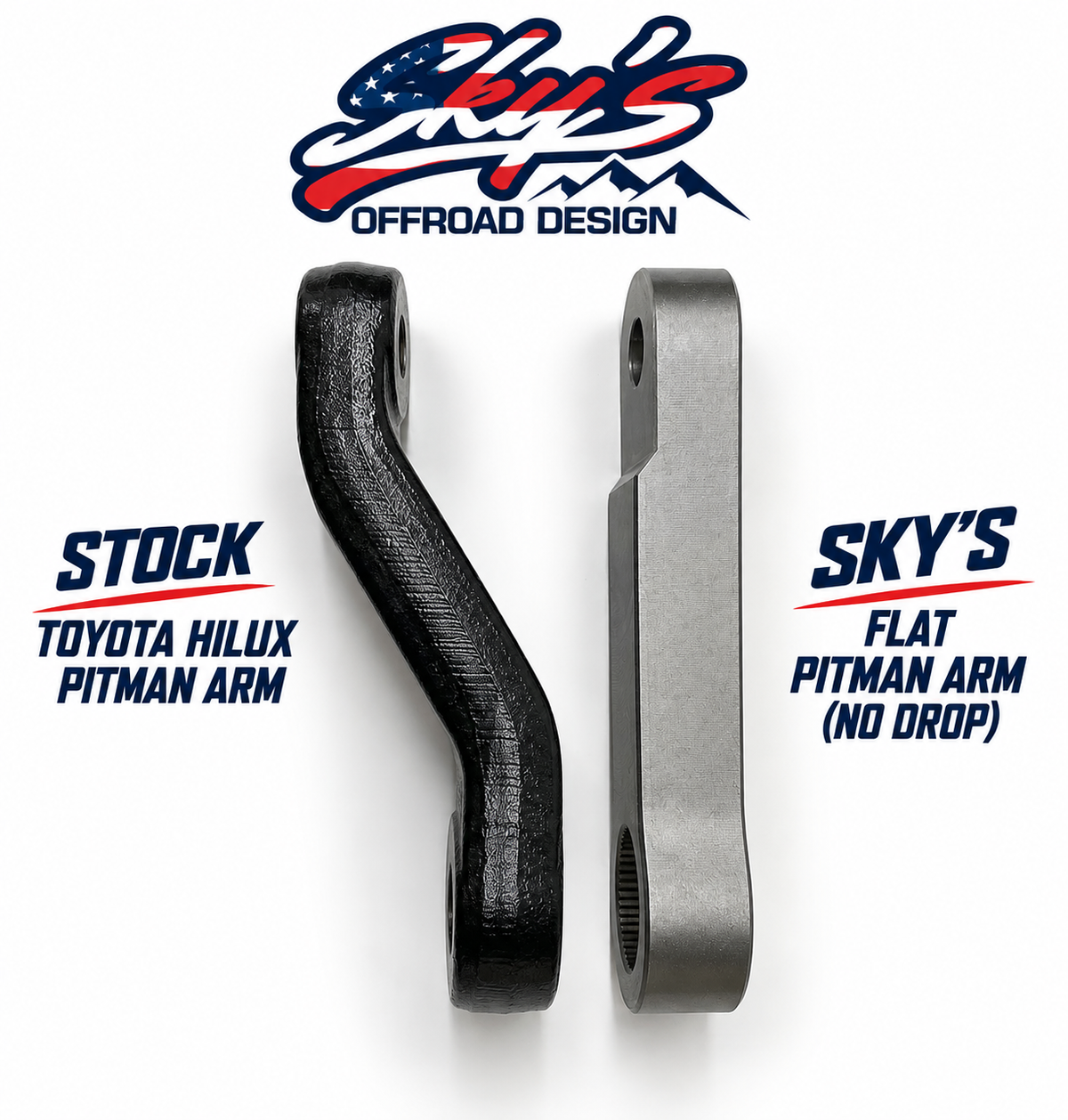

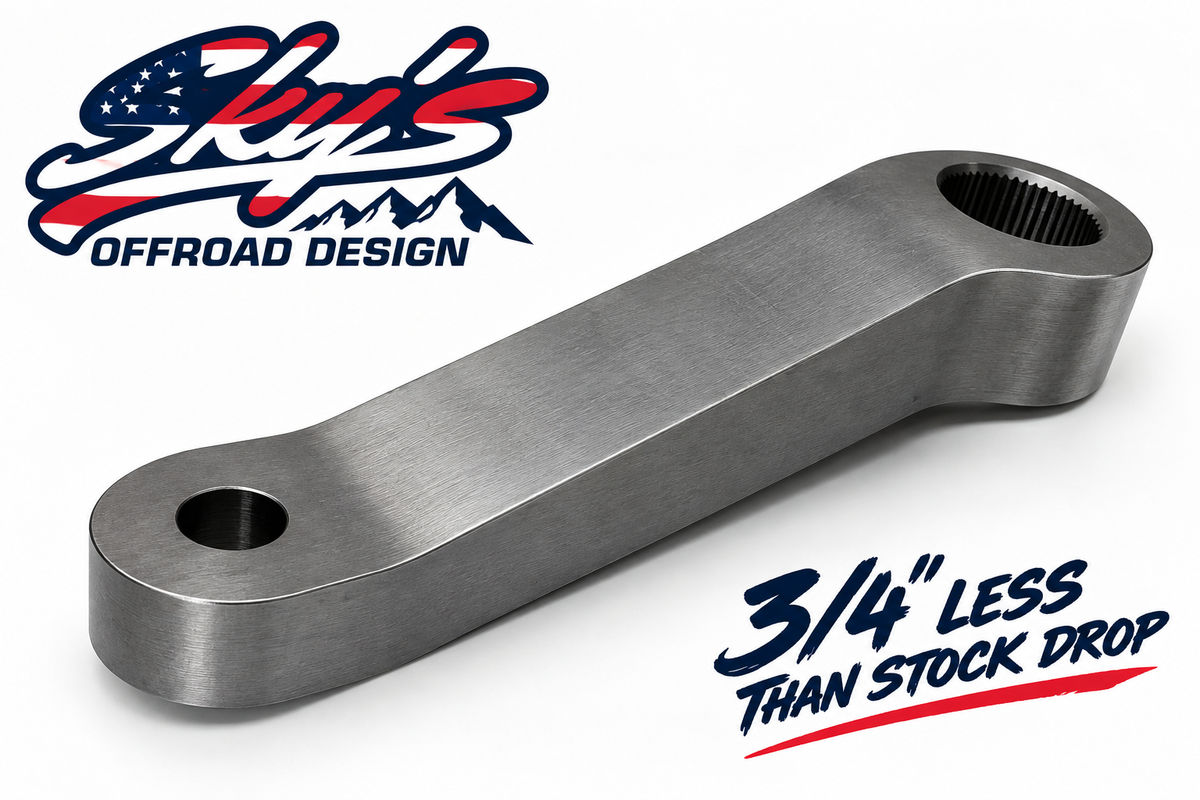

Available in a 3/4" less than stock drop and flat versions. Tapered for either a Toyota FJ-80 TRE. or Chevy 1 Ton ends.

Pitman arms fit either Toyota Hilux IFS steering box or FJ-60 Land cruiser box.

We offer the GM tie rod ( 2010 R-L ) and drag link tapers ( 2026-2027 RL)

Allows for fine tuning of steering with no core charge and no risk of breaking a modifiedĀ  stock pit man arm.

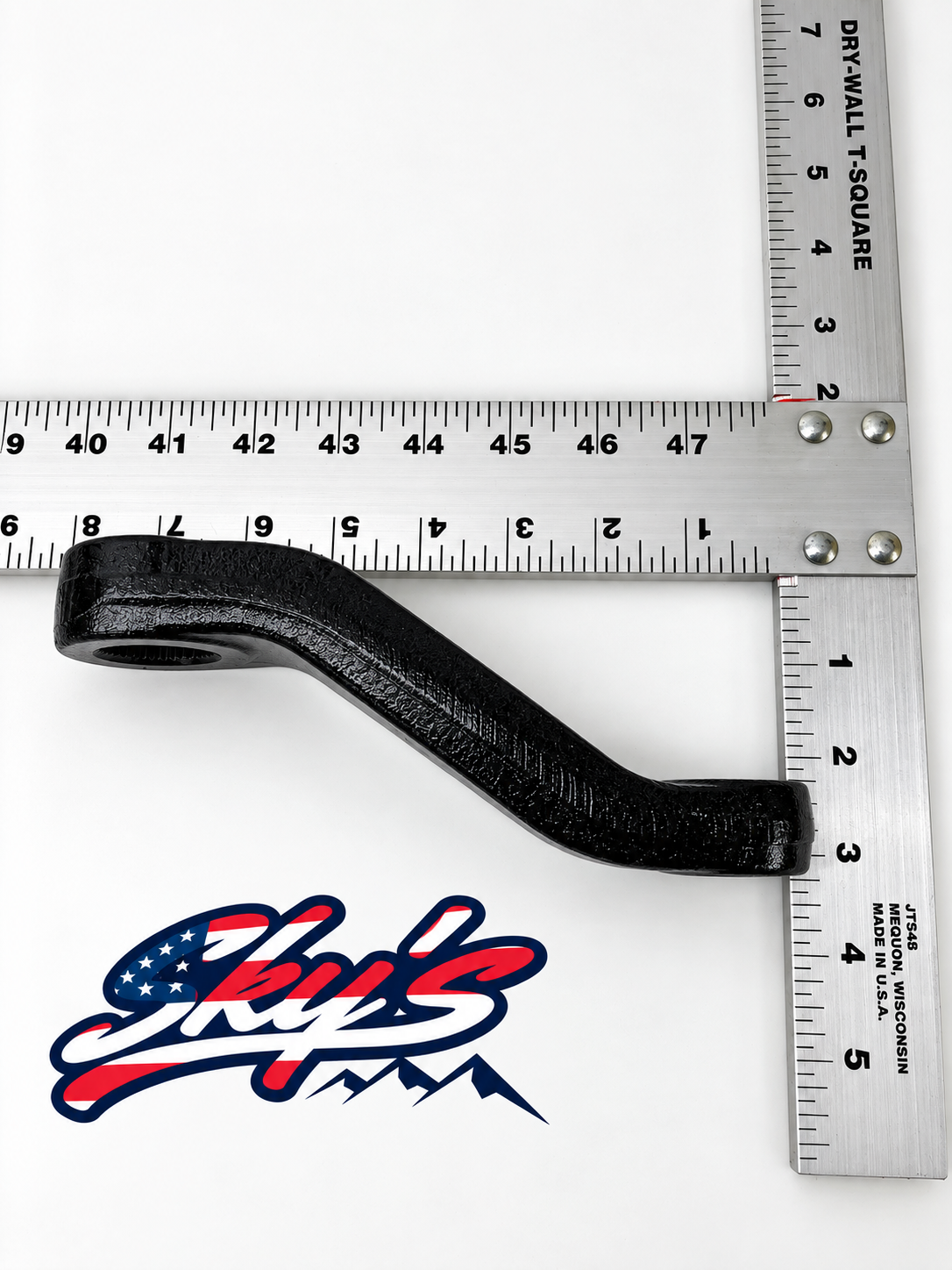

Note that the 3/4" and the flat pitman arm are 3/8" shorter than the stock pit man arm measurements from center of sector shaft to center of tie rod end.

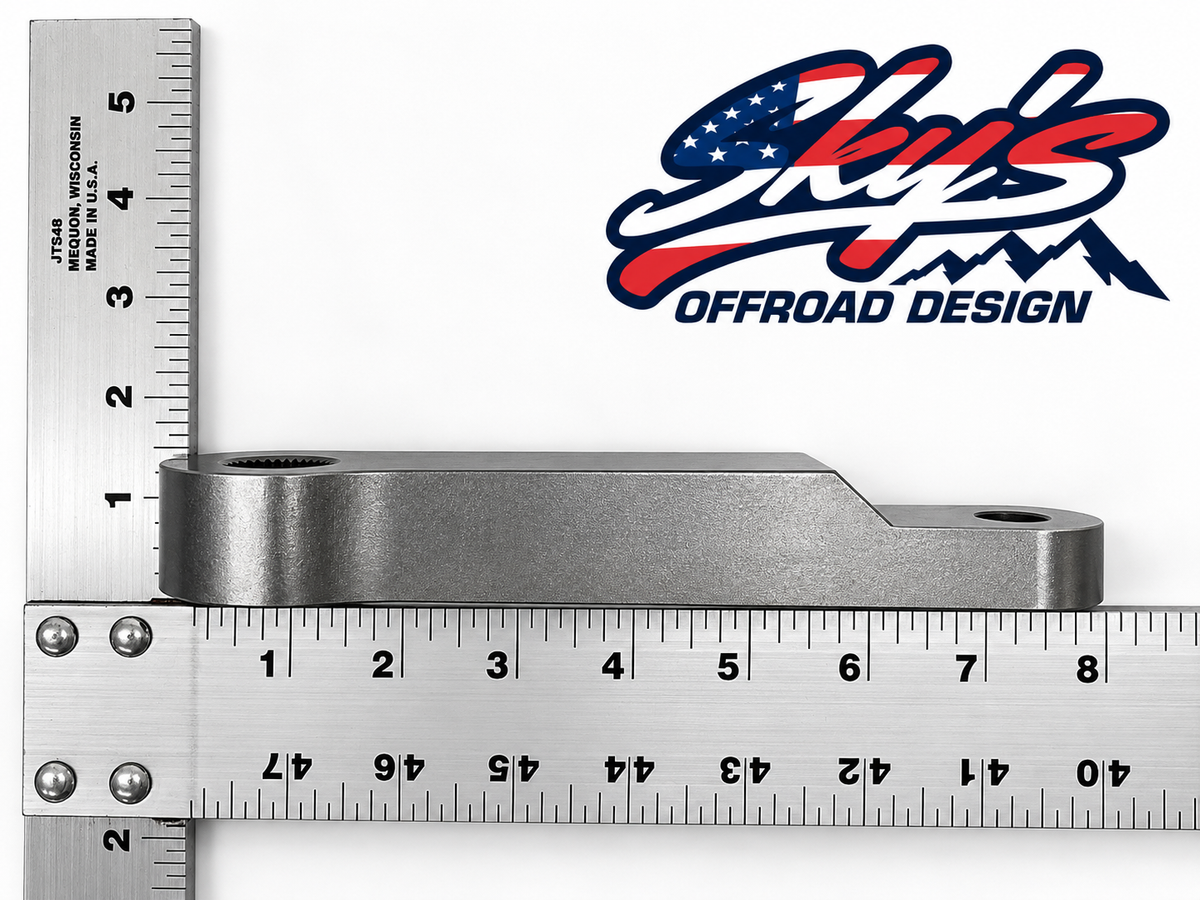

Length from center of sector shaft to center of tie rod end hole is 5.825" eye to eye.

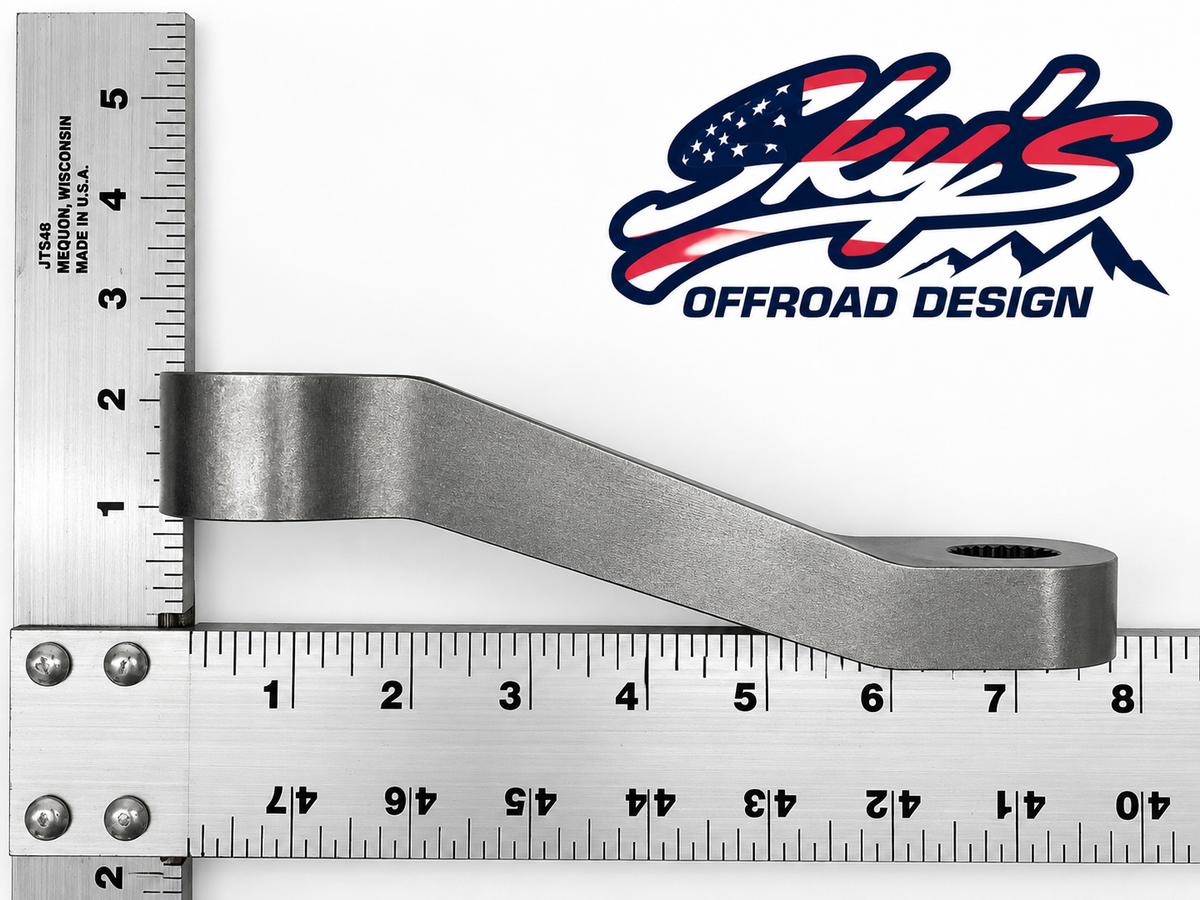

3/4 drop arm has 1.5" drop total.

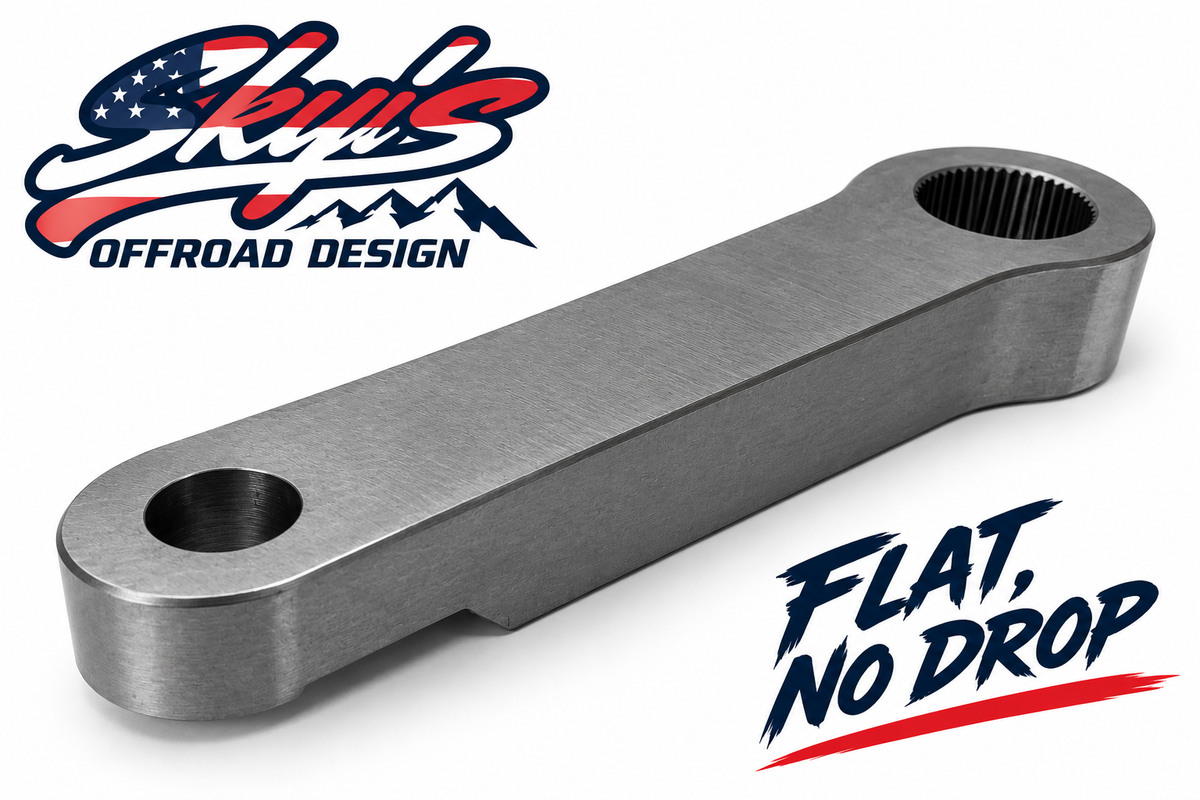

Flat arms have the nut recessed.

These are designed to work with our Toyota steering arms which are slightly shorter than other companies arms, which allows pushing the axle forward.

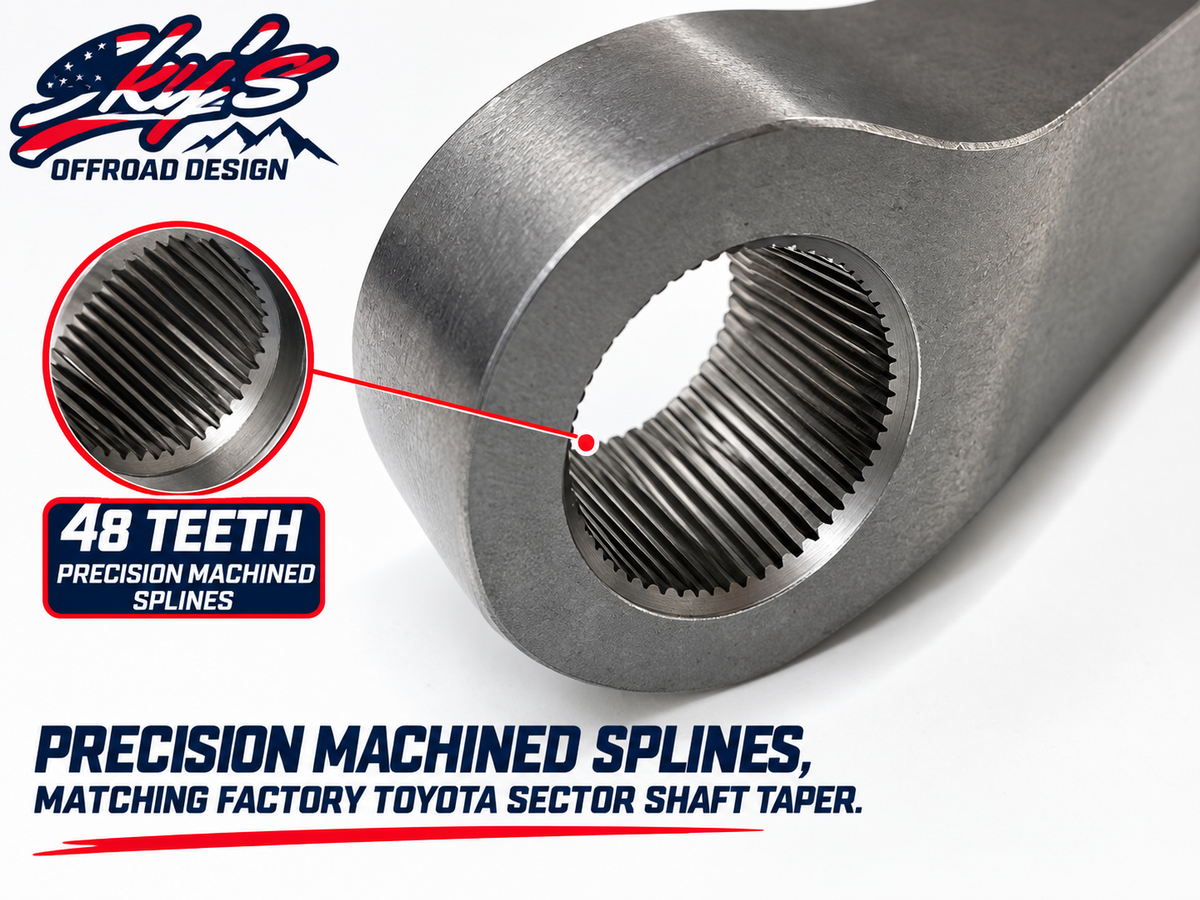

Arms are CNC machined from chromoly in the USA! Please allow 2-4 days lead time due to demand. We spline these when time allows as they are extremely time consuming to spline!

Other Awesome Toyota Products we Offer:

- Our Custom USA Made Leaf Springs

- Wilwood or GM Master Cylinder Adapters

- Toyota Full Width Axle Swap

Ā

Customer Reviews

Based on 2 reviews Write a review

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dan Denman
Pitman arm

Thanks guys for the awesome part as soon as i got it threw it on the old girl and it works perfectly thanks again for the fast shipping always like supporting local companies. Im from Washington and remember when you guys stared up your shop many years ago. Keep up the good work guys

Thank you for your great review! We work really hard to offer timely shipping. This can be hard with being a small shop. But these comments encourage us to keep up the good work.
Thank you Dan!!

E
Eugene Mariscal
Dana 60,leafs, high steer, toyota

Perfect fit! Extremely stout and allows for a tremendous amount of up travel and can still make u turns on a 2 lane road.
