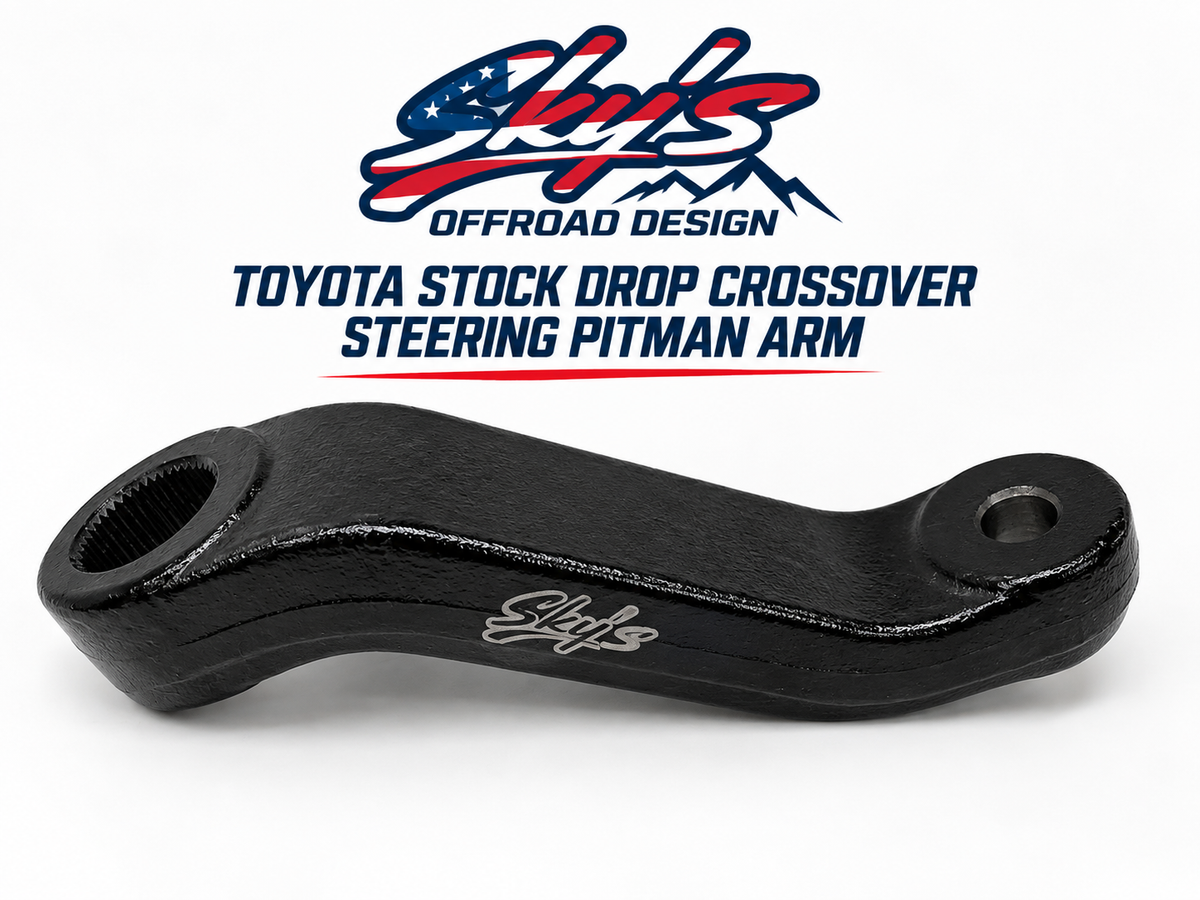

Toyota Stock Drop Crossover Steering Pitman Arm

Toyota Stock Drop Crossover Steering Pitman Arm

4x4 Toyota IFS steering box pitman arm.

The pit man arm is the exact copy of a stock 86-95'IFS arm, but with a tapered tie rod hole instead of factory built in ball joint. Added material in the area right before the ball joint taper makes them up to 100% stronger.

Tapered for any of the following, Toyota FJ-80 Tie Rod End, Chevy 1 Ton Tie Rod end, Chevy Drag link end, and a 3/4 bore for Hiem Joint options.

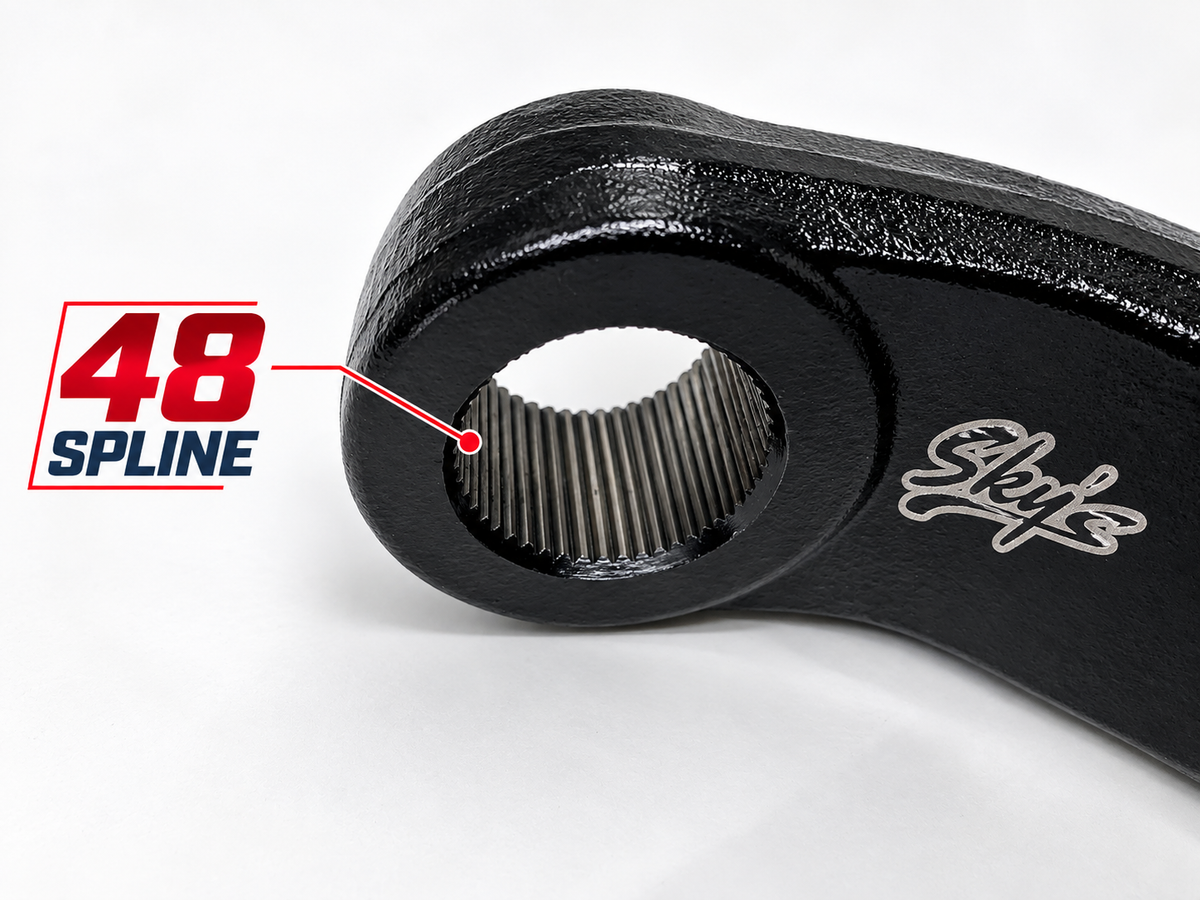

Pitman arms fit either Toyota Hilux IFS steering box or FJ-60 Land cruiser box.

We offer the GM tie rod ( 2010 R-L ) and drag link tapers ( 2026-2027 RL)

Allows for fine tuning of steering with no core charge and no risk of breaking a modified  stock pit man arm.

 One piece, forged design.

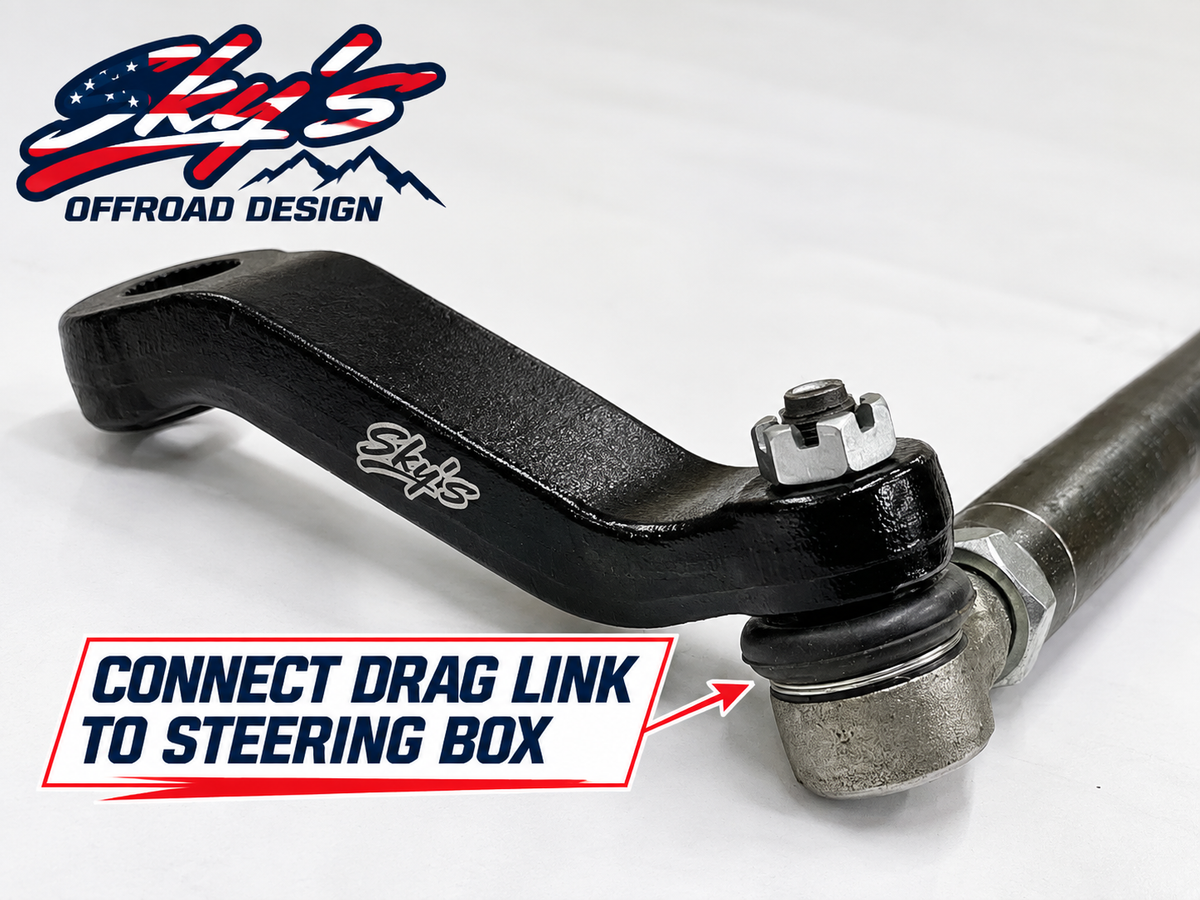

Ideal for use with hi-steer or crossover steering. Same drop as factory pit man arm.

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
R
Robert Detlefsen
Great Pitman Arm

Quality, burly, and perfect for my application. Much better than the TG one I had before which wobbled on the sector shaft. The only improvement would be to add the alignment mark on the pitman to make sure it's where it needs to be in relation to the steering box. Otherwise, great service and product!
