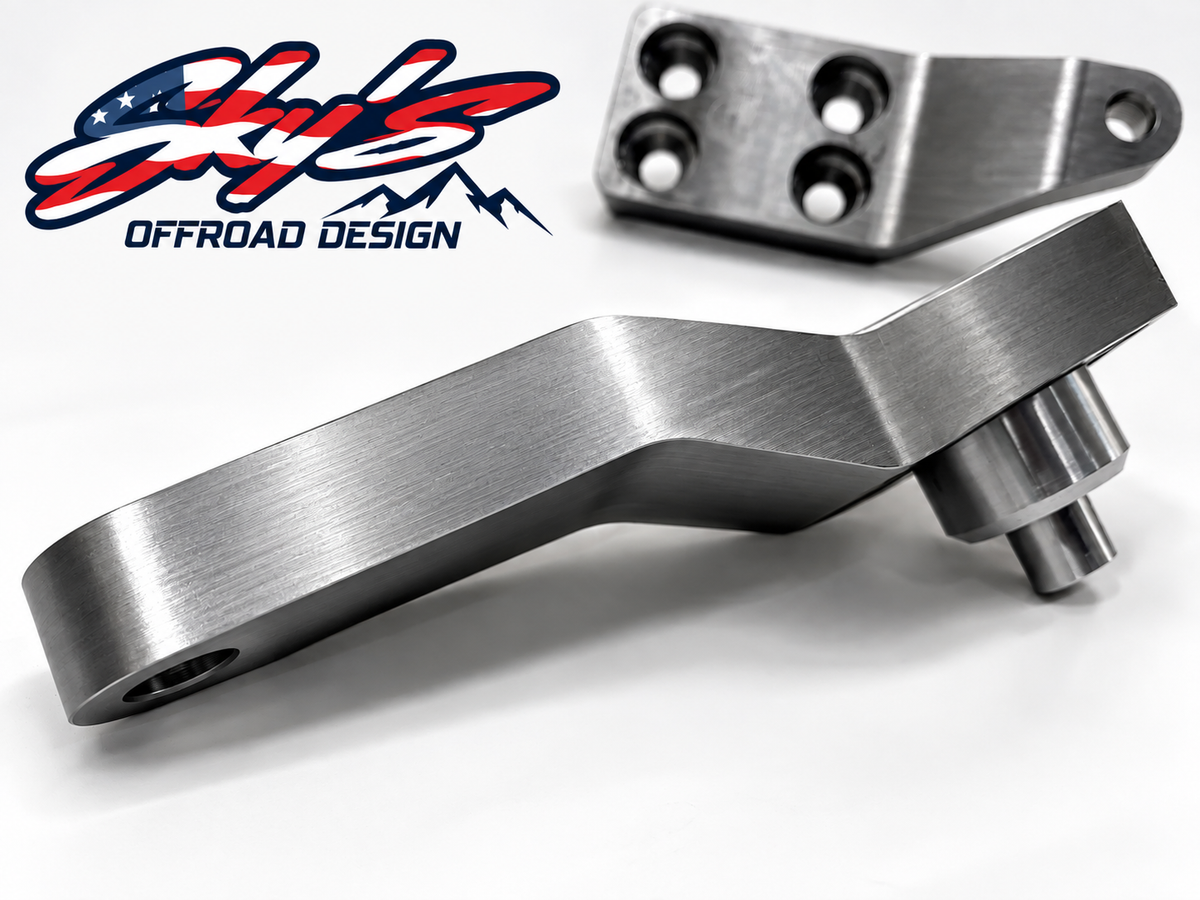

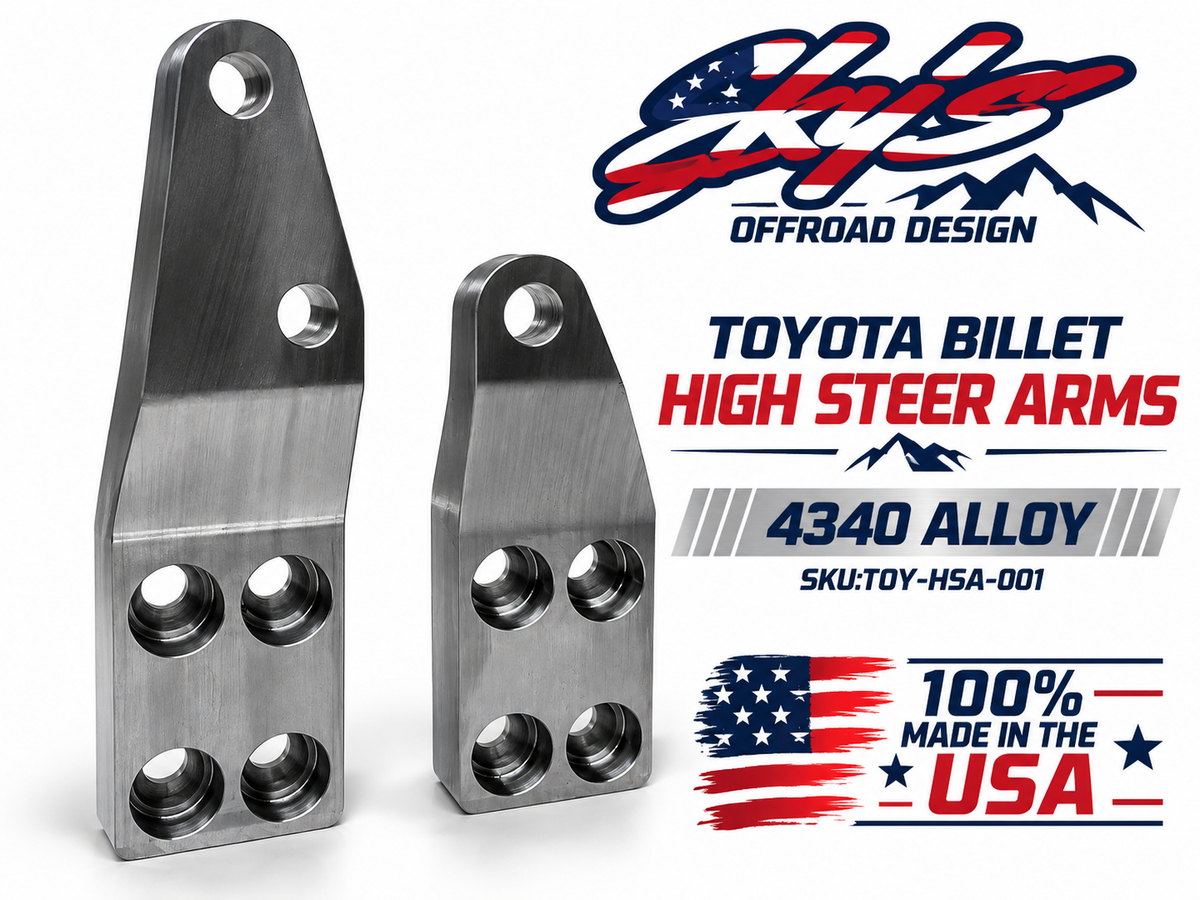

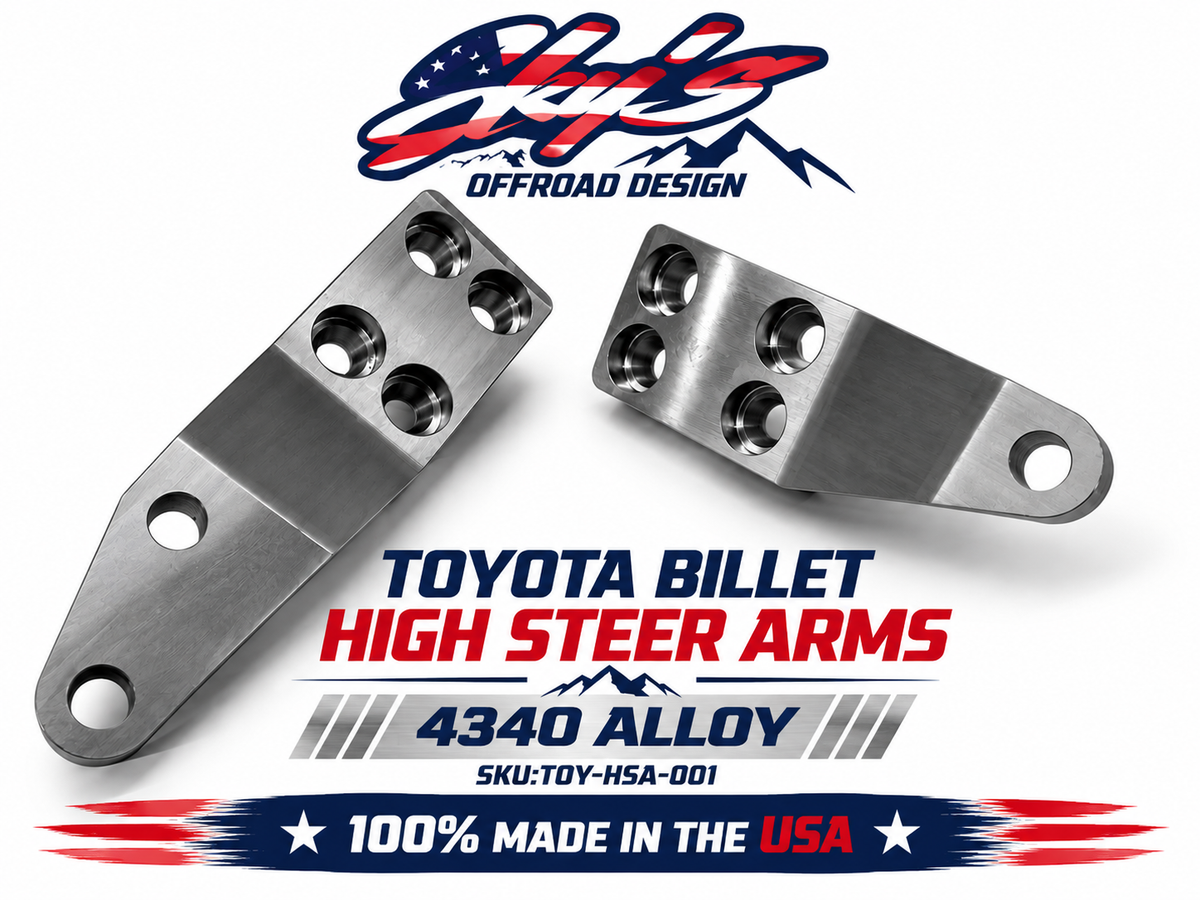

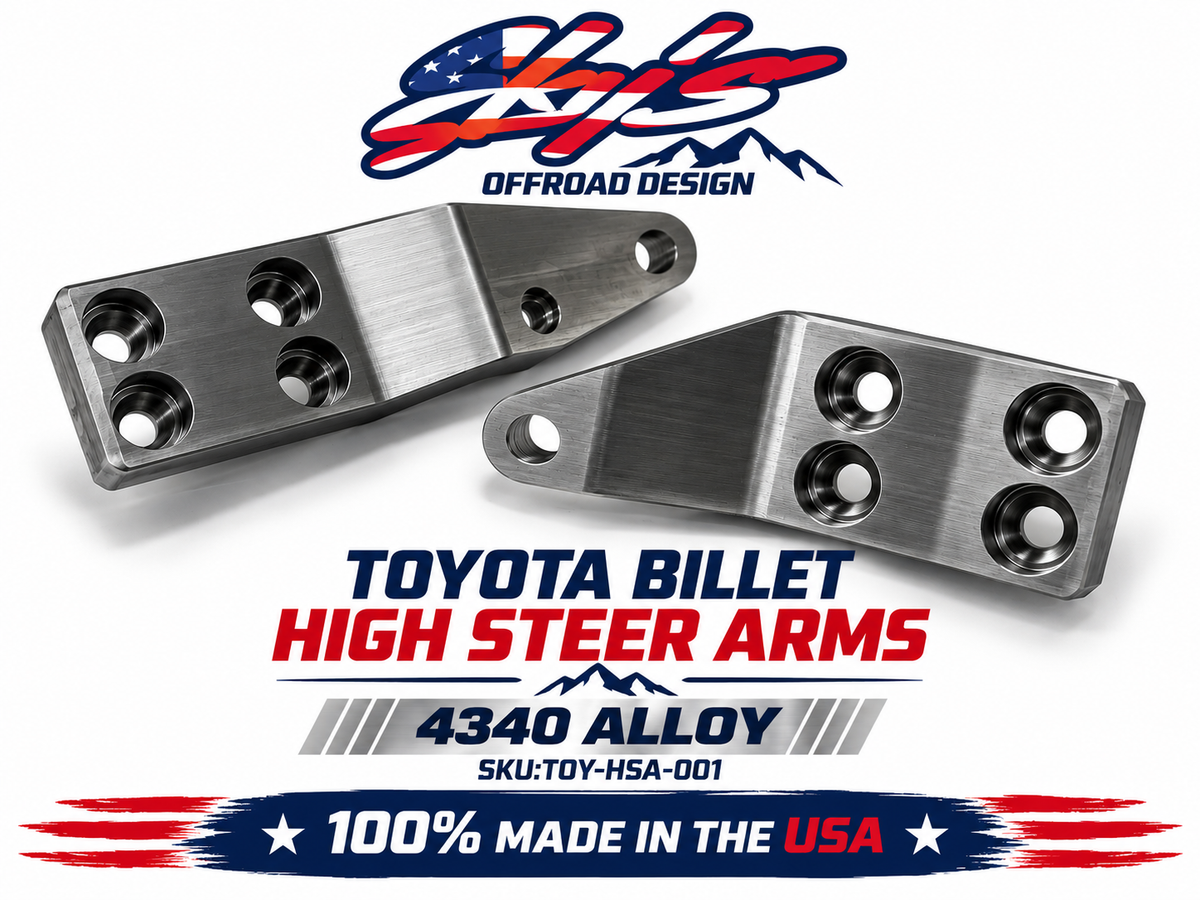

Toyota Billet High Steer Arms

Toyota Billet High Steer Arms

SKU: TOY-HSA-001

Sky’s has been building Toyota high-steer steering components since the late 1990s. After years of different designs and refinements, these billet high-steer arms represent the evolution of that experience.

CNC machined from billet 4340 alloy steel and 100% made in the USA, these arms are designed to move the steering linkage above the leaf springs, improving steering clearance and helping protect critical steering components from rocks and trail obstacles.

The arms provide the geometry needed for crossover steering using an IFS-style steering box on early solid-axle Toyota pickups and 4Runners. They are also an important component when converting later IFS Toyota trucks to a solid front axle.

Designed Around Toyota Steering Geometry

Rather than simply raising the steering linkage, Sky’s arms are designed around the geometry of a properly functioning Toyota high-steer system.

The tie-rod and drag-link locations are positioned to provide additional clearance while maintaining appropriate rod-end operating angles. The shortened steering-arm geometry also helps reduce tie-rod/drag-link interference and provides additional room for higher-arch leaf springs.

Key Features

• CNC machined from billet 4340 alloy steel
• 100% Made in the USA
• Designed for over-the-spring high steer
• Allows crossover steering
• Uses factory Toyota steering-arm studs and conical washers

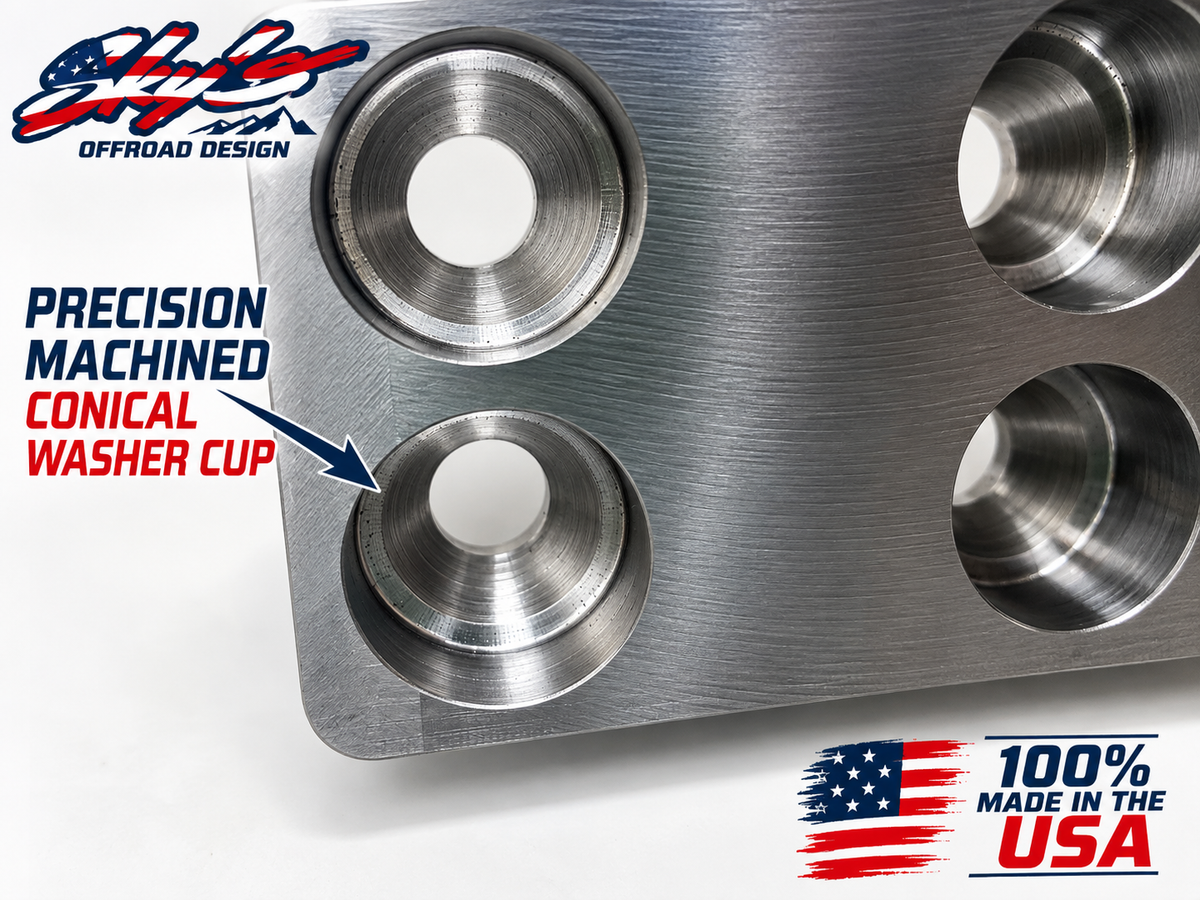

• Precision-machined conical washer seats with a near-mirror finish for consistent clamping and torque retention
• Tapered for Toyota-style tie-rod ends
• Designed around 23mm FJ-80 tie-rod ends
• Raises the tie rod above the leaf springs for improved trail clearance
• Helps protect steering linkage from rocks and obstacles
• Shortened steering geometry provides additional clearance for high-arch springs
• Designed to reduce tie-rod and drag-link interference
• Medium-rate Ackermann geometry designed around approximately 110–115" wheelbase
• Kingpin to drag-link location: 6.5"
• Kingpin to tie-rod location: 4.5"

Built for Toyota High Steer

These arms are designed for Toyota solid-front-axle applications where strength, steering geometry, and clearance matter. Moving the steering linkage higher keeps vulnerable components farther away from trail obstacles while the billet 4340 construction provides a substantial foundation for demanding off-road steering systems.

Pair them with Sky’s 23mm FJ-80 tie-rod ends for a heavy-duty steering combination designed around the same high-steer system.

Sky’s Offroad Design — Toyota steering components developed from decades of real-world high-steer experience.
