Toyota Solid Axle Knuckle/Kingpin Rebuild Kit

Toyota Solid Axle Knuckle / Kingpin Rebuild Kit

SKU: TOY-KRK-001

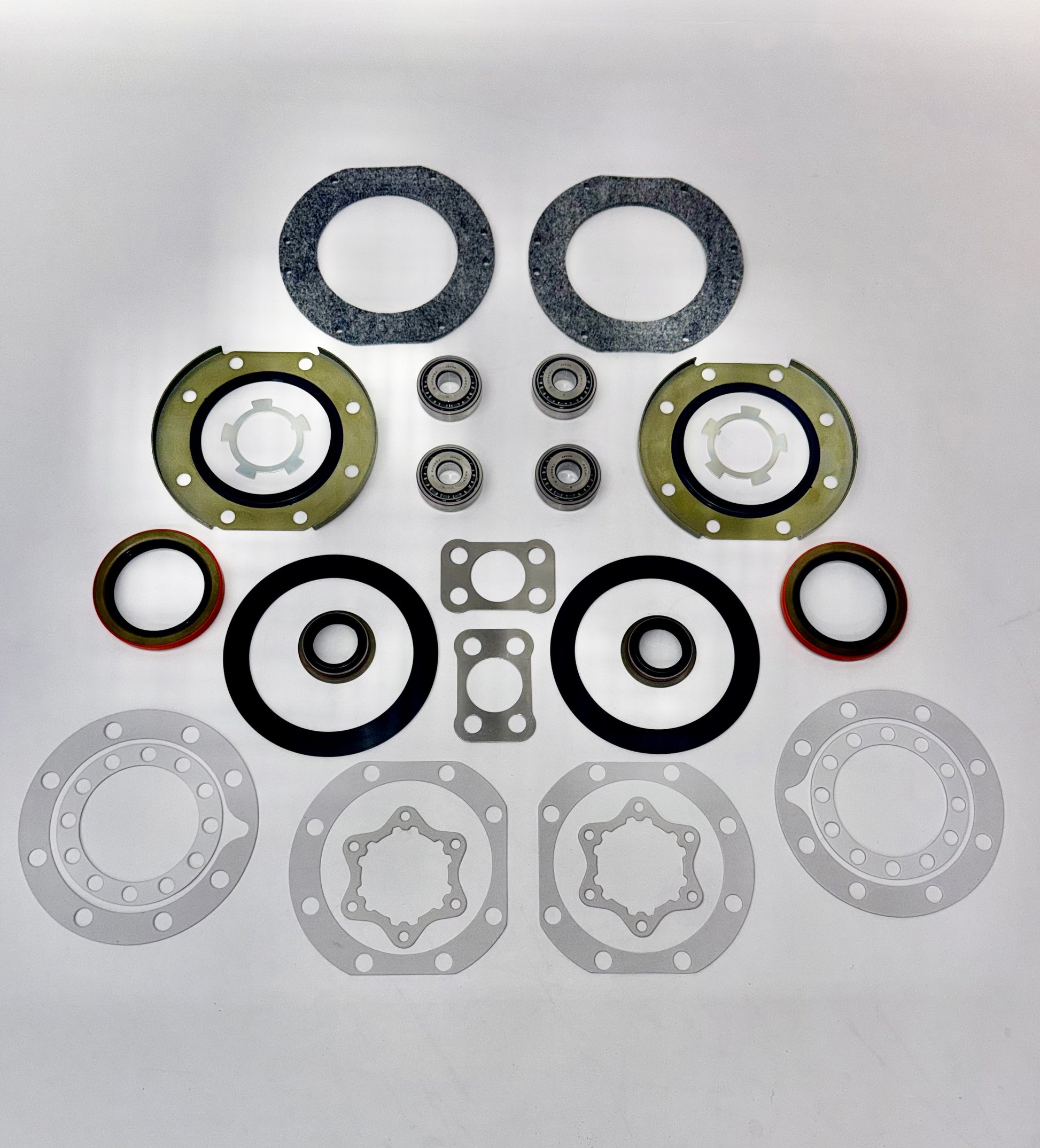

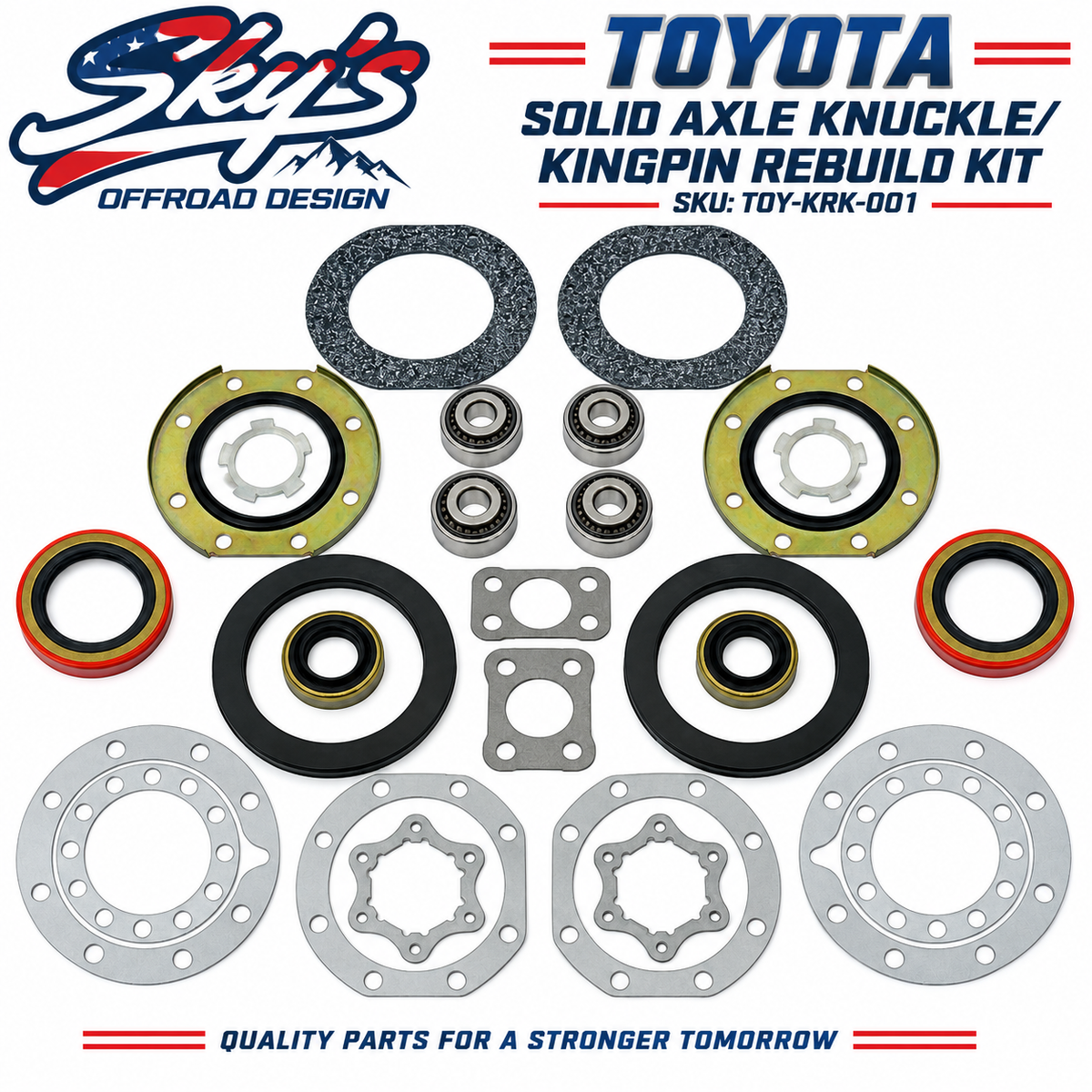

Give your Toyota solid front axle a proper rebuild with a complete knuckle and kingpin service kit. This kit brings together the bearings, seals, shims, and gaskets needed to service both sides of the front axle and restore the knuckle assemblies.

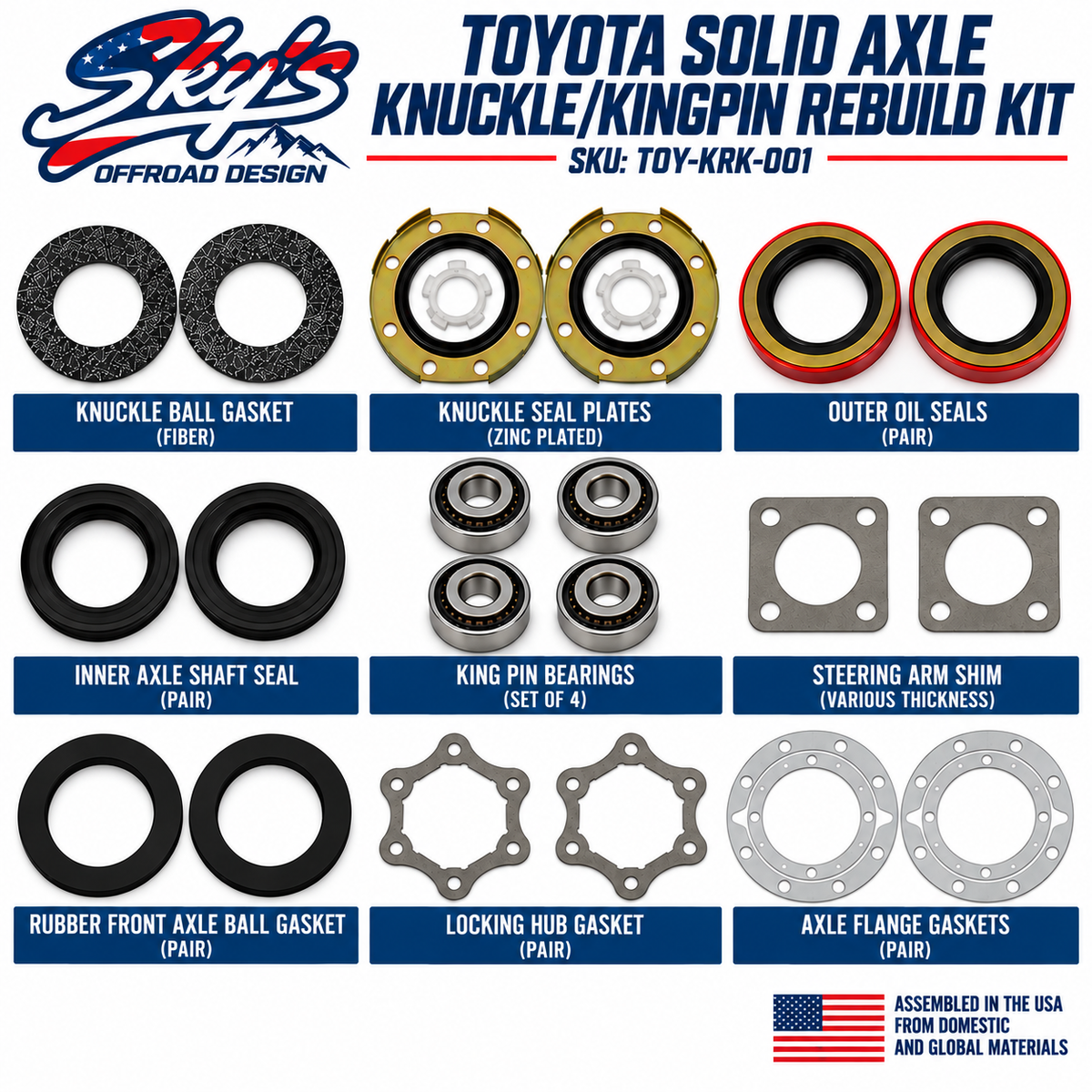

Kit Includes

• Koyo kingpin/trunnion bearings
• Heavy-duty dual-lip inner axle shaft seals
• Steering arm shims in various thicknesses
• Knuckle ball fiber gaskets
• Rubber front axle ball gaskets
• Knuckle seal plates
• Outer oil seals
• Locking hub gaskets
• Axle flange gaskets
• Required seals and gaskets for reassembly

Quality Components

We use quality Koyo trunnion/kingpin bearings along with heavy-duty inner axle seals designed for demanding solid-axle applications. The kit provides the components needed to rebuild both steering knuckles without piecing together individual seals, bearings, and gaskets.

Wheel bearings are not included with this knuckle rebuild kit.

Wheel bearings are available separately through our Toyota Wheel Bearing Kit or as part of our Toyota Front Axle Combo Kit. Our wheel-bearing kits use quality Japanese Koyo, NSK, or Timken bearings.

Vehicle Fitment

Designed for Toyota 4WD solid front axles found in:

• Toyota 4Runner: 1984–1985
• Toyota Pickup: 1979–1985
• Toyota Land Cruiser: 1975–1990

Built for a Complete Front-Axle Service

A leaking or worn knuckle assembly can allow grease and gear oil to work past the seals and collect around the knuckle ball or inside of the wheel. Rebuilding the knuckle assembly replaces the wear components responsible for sealing and supporting the steering knuckle. For our Heavy Duty Wiper Seal Kit, Here.

For best results, kingpin/trunnion bearing preload should be properly checked and adjusted during installation.

Assembled in the USA from domestic and global materials.
