79-95 Toyota Hilux 4x4 Disc Brake Conversion Brackets

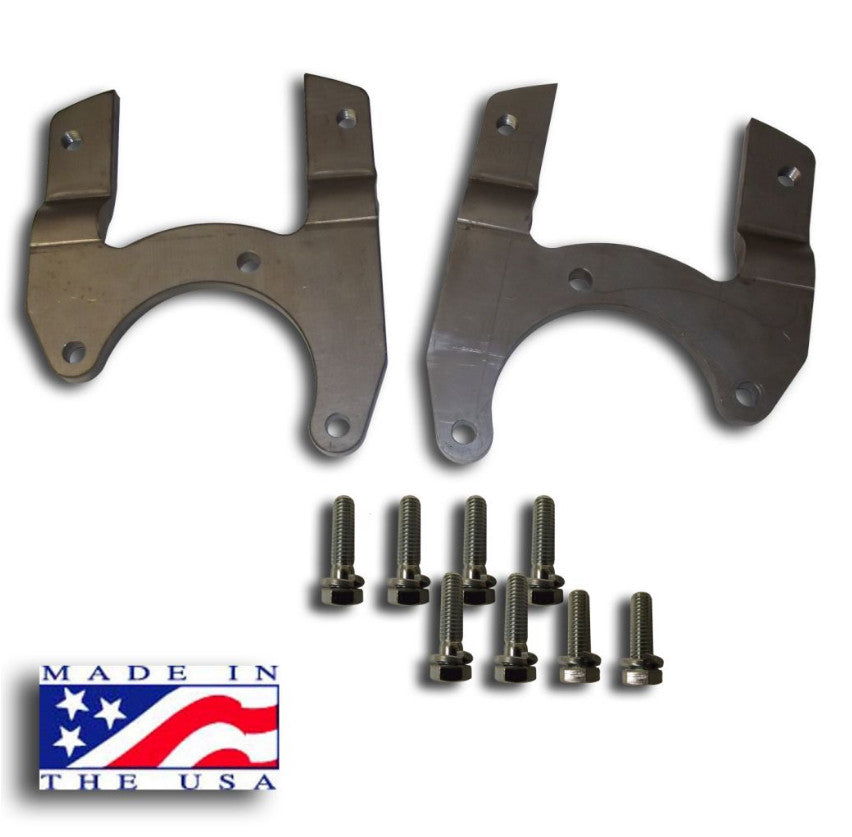

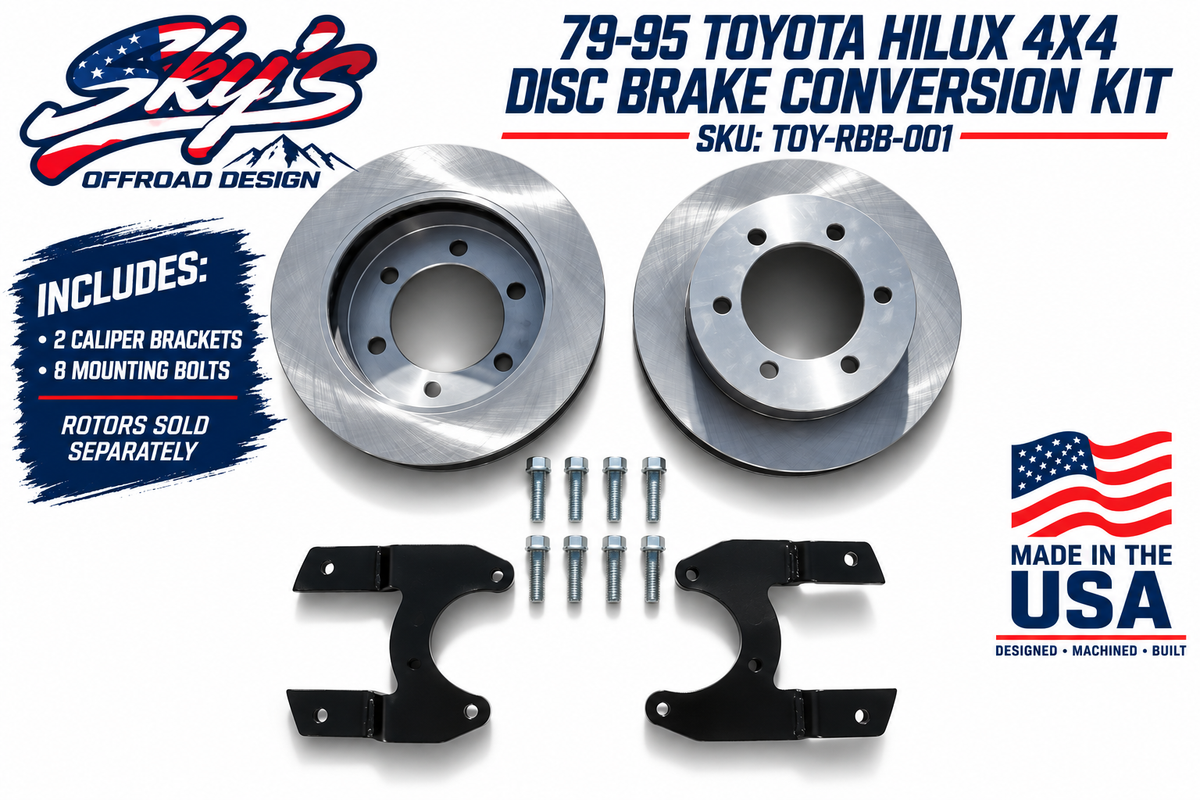

Kit includes: Disc Brake brackets for a Disc Brake Conversion

Designed for:
Calipers: 79-85 Monte Carlo or Cadillac Eldorado, front or rear depending on if you need the e-brake or not. These are considered the GM metric caliper, which is used in numerous disk brake conversions. The GM metric caliper is also available aftermarket from companies such as Wilwood Brakes.  Sky's does not supply parts nor calipers for e-brake systems, these are prone to failure and very difficult to keep adjusted correctly.

"Big Bore" Metric Calipers will not work with this kit.

Axles:  Brackets will fit standard pattern Mini Truck-4Runner-Tacoma Toyota axles, 1979-2004, some 2005-2006 axles, customer will need to double check their pattern with an older axle. Grinding of ABS ports may be needed if equipped. Standard pattern is a square 3.438 pattern or 88mm.

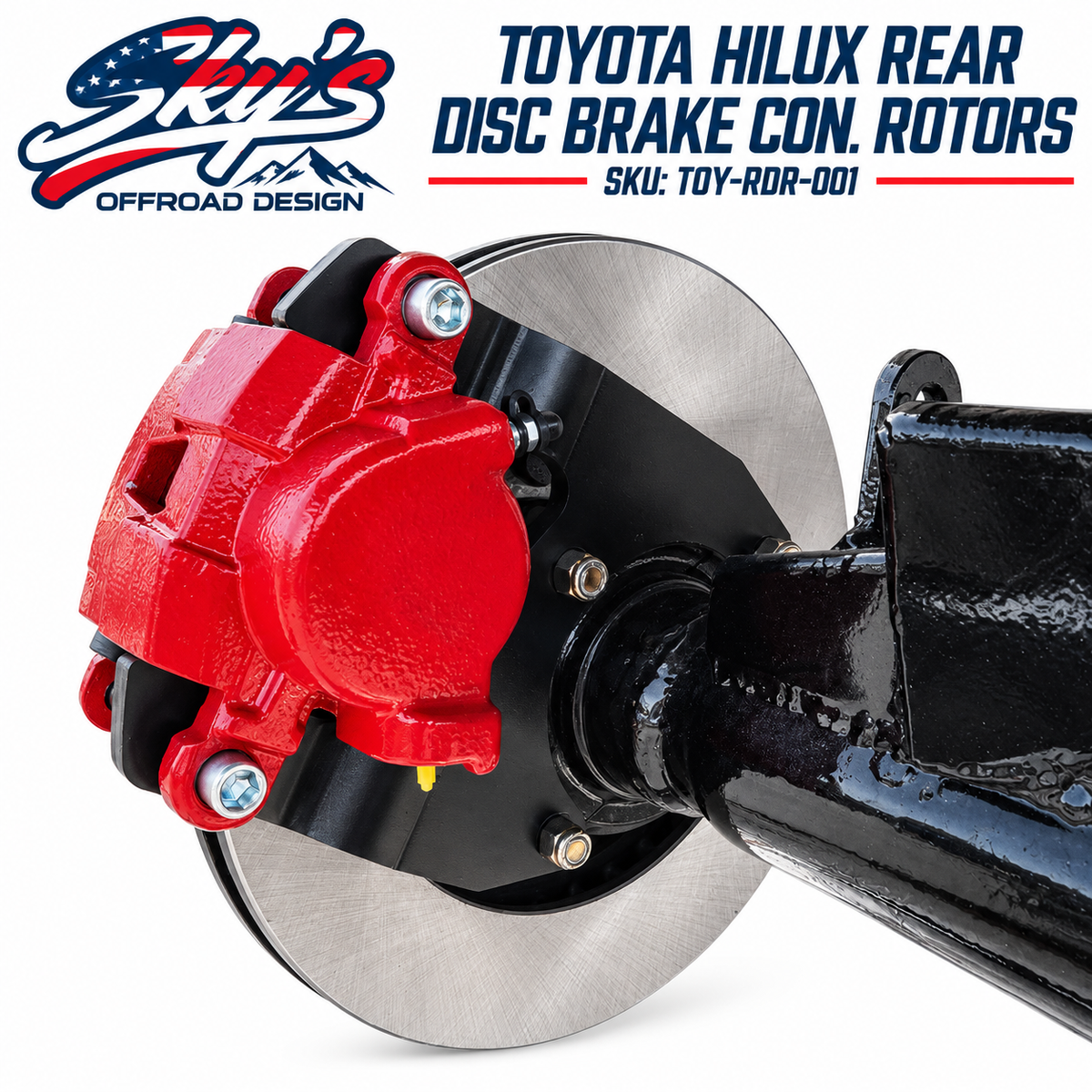

Rotors: GM origin, machined to fit either a 79-85 hub centric of 3.6" or 86-95 4.2" hub centric. Will also fit early Tacoma with 4.2" hub centric. Rotors are 1" wide.

Other Items You Will Need:
Modified rotors, Loaded Calipers, Brake Lines

Additional Information:

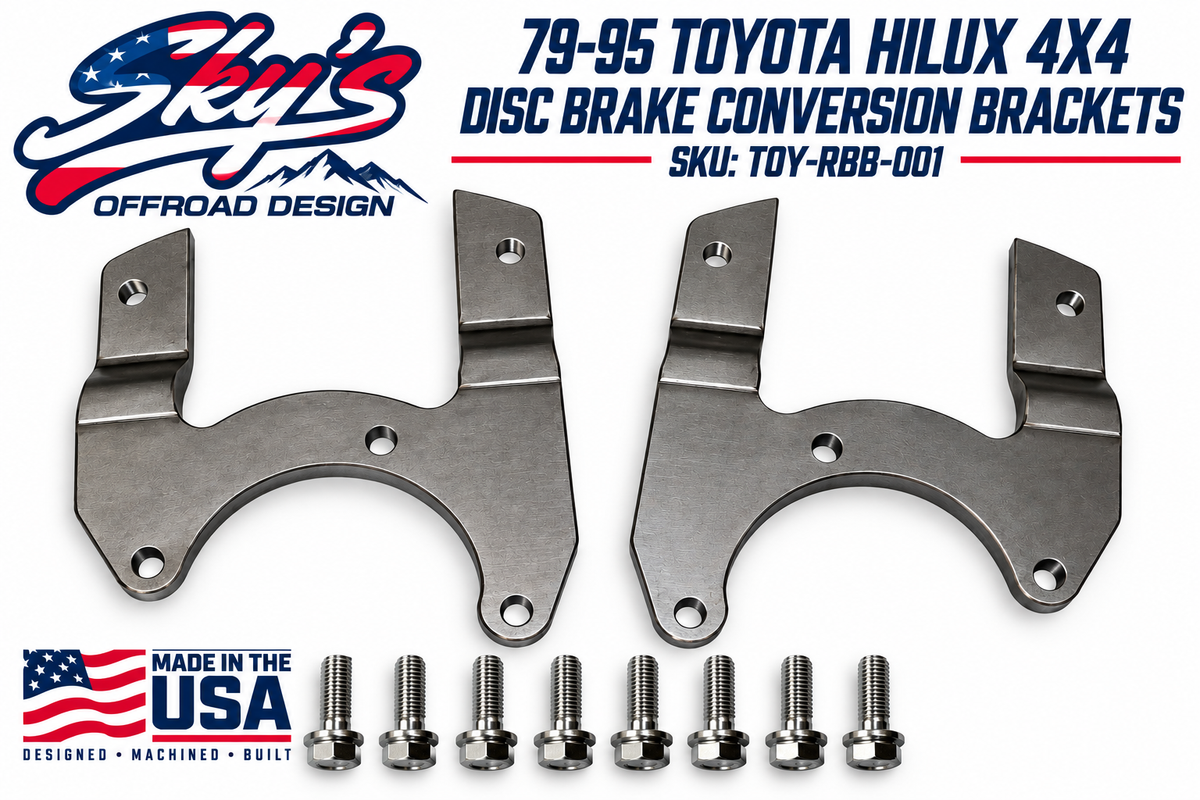

Brackets:  We took the good, the bad, and built brackets that work every time. There is only .003 tolerance on these brackets, which required us to start by laser cutting .375 ( 3/8ths) steel, then forming it, then final machine of the holes that bolt to the axle housing and the caliper.

Kit will fit 15 inch wheels with 3.5 or less backspace.

Brackets are shipped raw steel. Due to bolt and thread tolerances we do not recommend powder coating.
