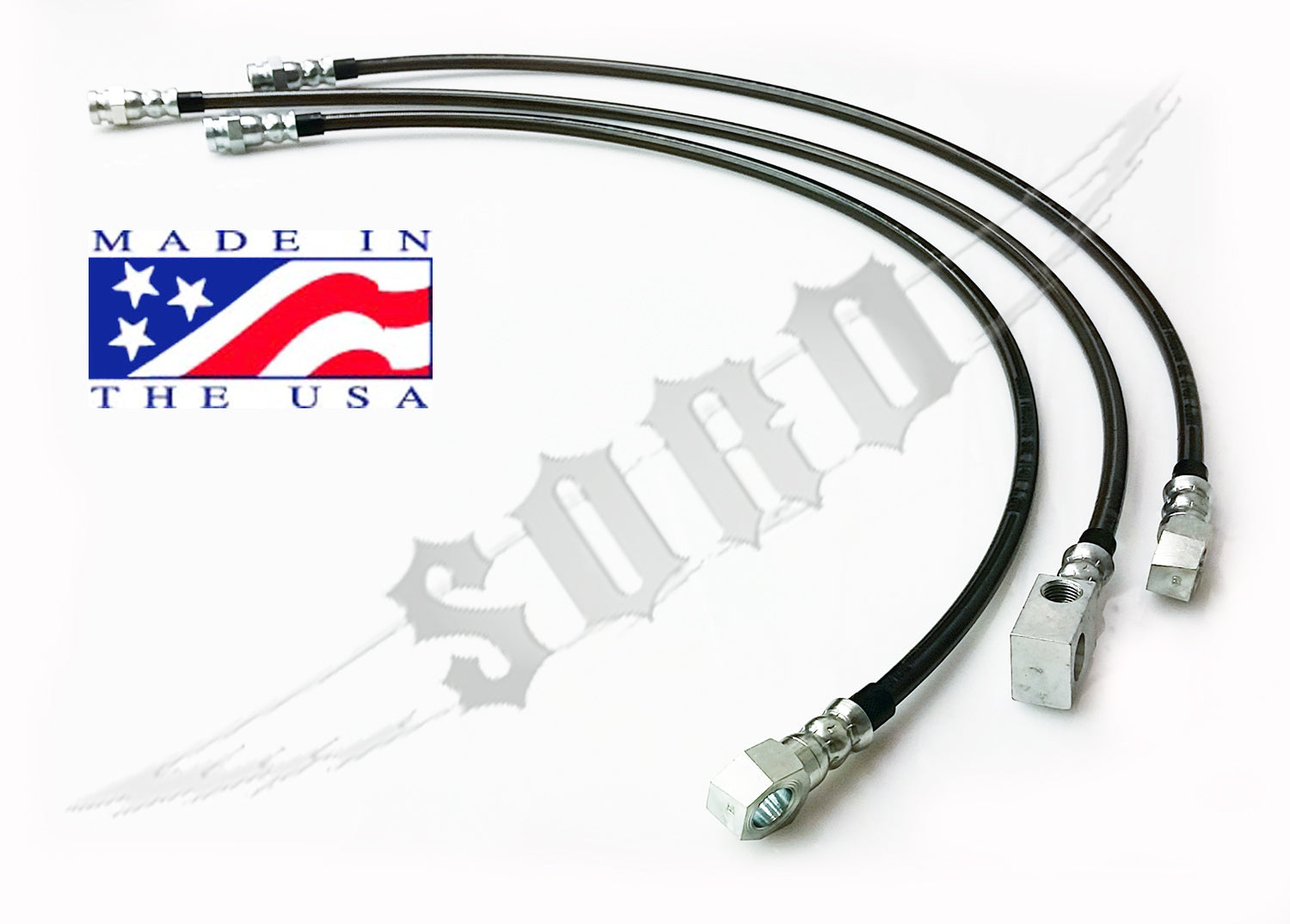

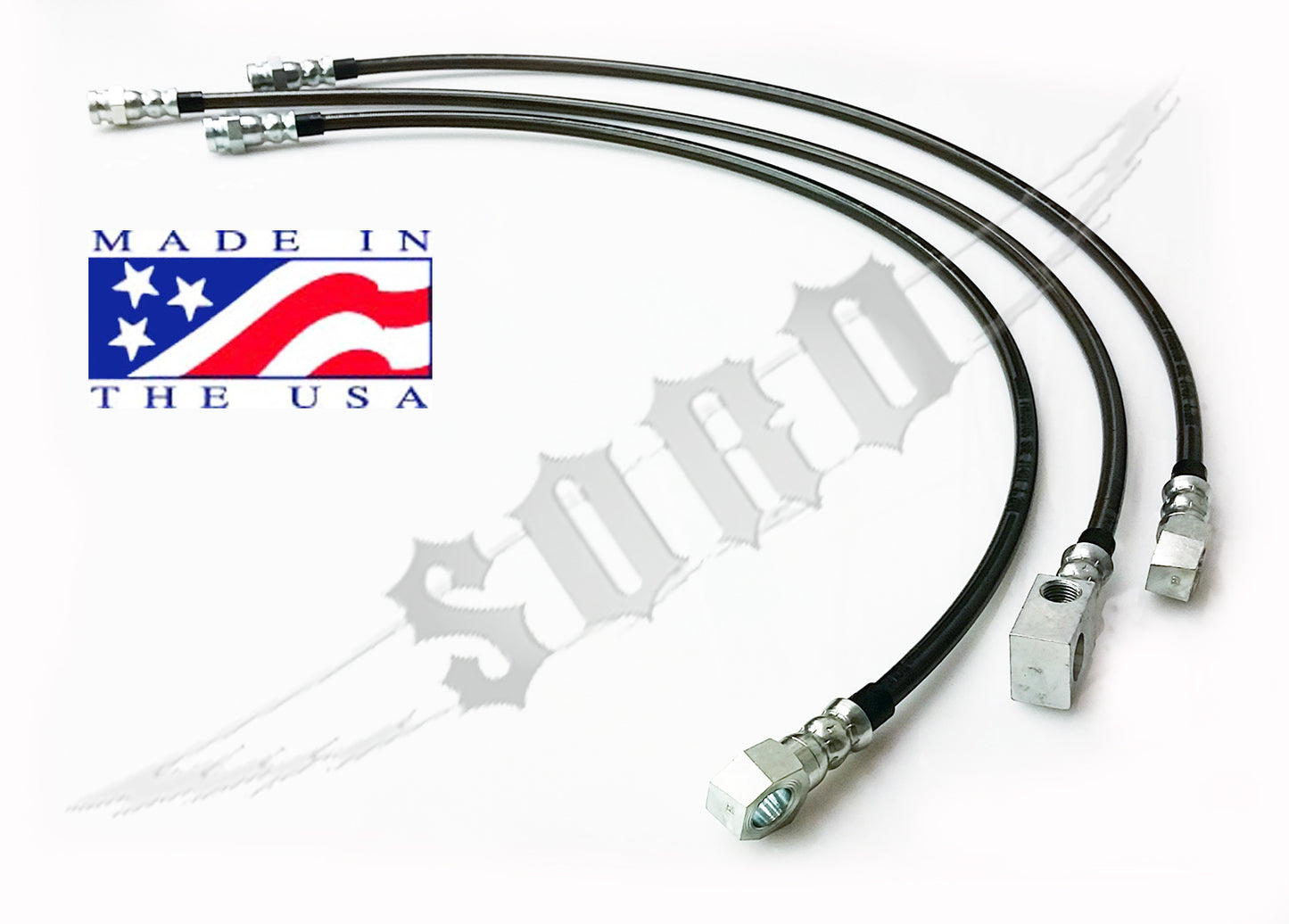

Toyota Full Width Axle Conversion Multi-Layer Brake Lines

If you want to do it right, a custom made brake line kit is needed.

This brake line set is designed for Toyota stock position upper line mounts, to 7/16ths banjo bolt style calipers, with fitting in the middle/bottom area of caliper. Common applications is GM Dana 60, 77-92. GM Dana 44, 76-89. GM Corp 10 bolt, 82-92. Ford Dana 60, Kingpin, 78-91. Jeep Wagoner Dana 44, 76-86.

Brake line layers are as follows:

Teflon-Rubber-Stainless Braided-Plastic Protective outer shell

Lines are made in the USA, DOT approved and each line is pressure tested for safety.

Lines have metric 10mm factory Toyota style upper fitting, with a 7/16ths banjo bolt on the bottom. Banjo fitting is strait.

Lines are 26 inch long.

Lines are built with high quality metal crimp fittings, not cheaper leak prone plastic style!

These lines fit mini trucks with Dana 44 and Dana 60 axles, Tacoma's with similar axle conversion, and our new Toyota T-100 solid axle swap!
