Knuckles are stocked but may come drop shipped from Reid Racing.
Dana 44 steering kits are designed to fit open knuckle flat top Dana 44 live spindle axles only. We do not build any kits for closed knuckle style axles or unit bearings.

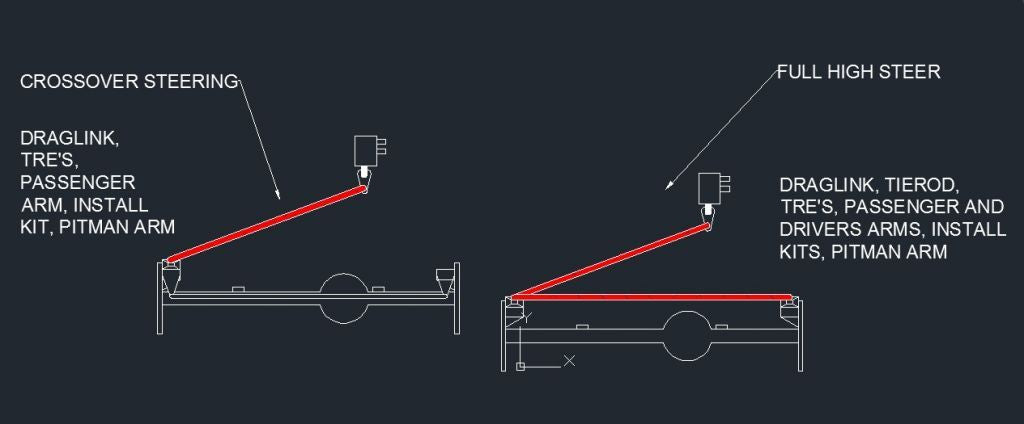

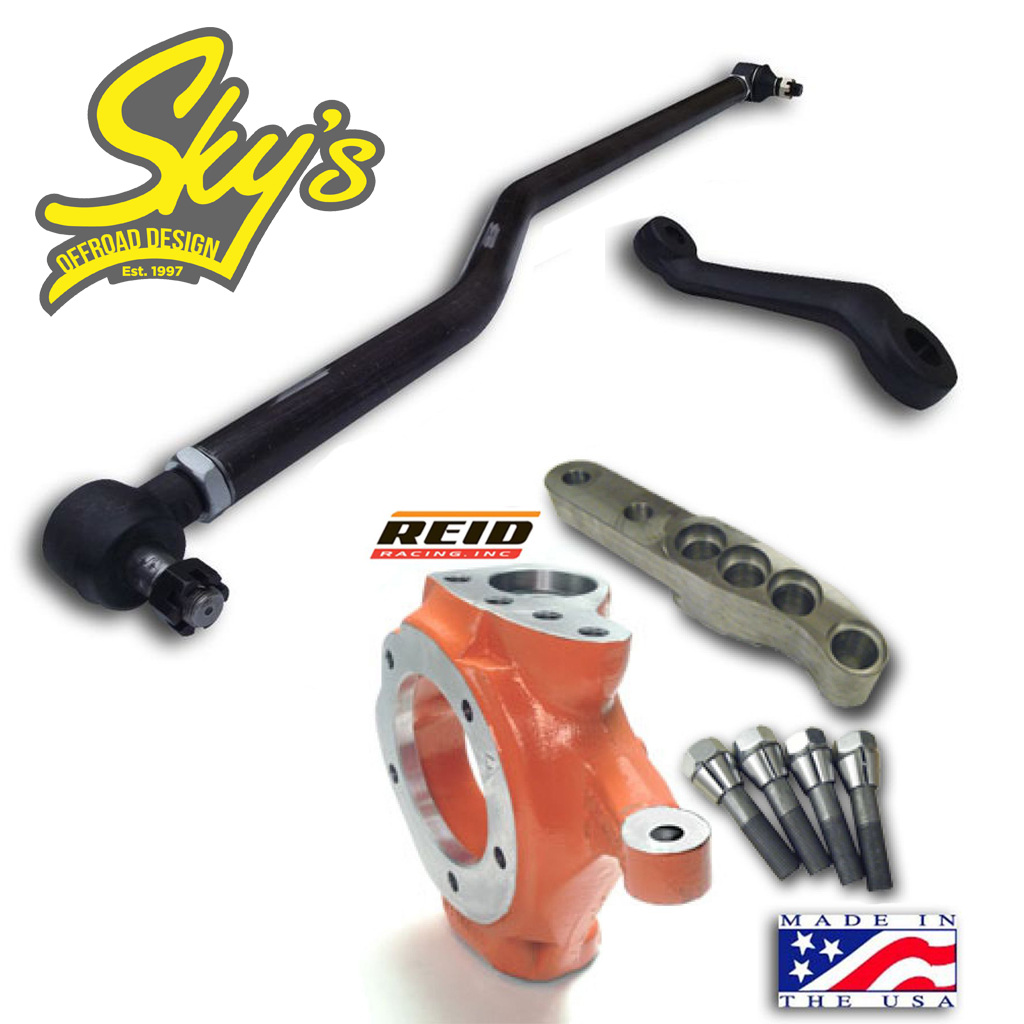

Sky's Dana 44 Crossover Steering Kit Includes:
- Draglink,
- GM 1 Ton Tie Rod Ends,
- Jamnuts,
- Pitman arm,
- Passenger Side Steering arm,
- Steering arm install kit.
67-87 Chevy/GMC vehicles will need to switch steering box's to a 2wd box in order to install crossover steering. You will need either a factory flat top knuckle machined or purchase an aftermarket knuckle, we carry Reid Racing heavy duty 4 stud knuckles,$259 and up!
Sky's now offers a steering box brace kit for Chevy/GMC trucks in addition to our crossover kits,brace fits factory solid axle truck suv frame, 73-87.
Note: Some IFS 88-2010 GMC/Chevy steering box's use a 3 relief pit man arm, these will need to be swapped to a 4 relief sector shaft or swap the entire box.
You will also loose the ability to run the factory style sway bar, we recommend the Currie Anti Rock.
Steering Links are trim-able, we generally give at least an inch on ea side extra to be safe.
On Chevy/Gmc trucks we form the drag links to clear the cross member under the engine, the formed end will be closest to the pit man arm.
Dodge kits require switching the steering box to the 2wd location, you will also need to either relocate the sway bar or run an aftermarket such as the Anti-Rock from Currie. Will work only with 6 bolt live spindle knuckles, not unit bearings! Some Dodge knuckles have integral caliper brackets and are different from the Chevy knuckle this kit uses. In such case you will need to do Chevy brakes.
78-79 F-250 and F-350 Ford trucks will require re indexing the pitman arm 90 degree's, from front to back stock over to side to side. Passenger side shock may interfere, need to be relocated. We recommend our Knuckle Gusset lower mount combined with our Ford Shock Towers
78-79 Ford F-150 simply requires installing new pitman arm in stock configuration.
76-77 Ford F-250 and F-350 may require relocating steering box for clearance to leaf springs. Many are flat and will need rotated 20*. We have 2 pitman arm options as well on this particular conversion. If you only have 4"" clearance from sector shaft to leaf springs, you will need a custom 2"" drop arm we have now. Any more than this and the normal 4"" drop arm will clear
We can build a Dana 44 crossover kit to fit just about any axle under and vehicle, e-mail with what you have and we'll let you know how much it will cost.
NOTE: Body lift does not affect lift in options. Please only specify suspension lift***
Installation:
Apply red Loctite to the short side of the studs and thread them in hand tight.
Install steering arm, cone washers and stover nuts
Torque to 90-110 Ft/Lb (factory Dana 44 spec)
Install pitman arm.
Check fitment of drag link. As they are made to fit a range of lifts it may need some trimming (up to 1"" off either end)
Reid Dana 44 Knuckle:
Cast from high strength ductile iron
Beefed up with extra material and ribbing
Flat tops machined and drilled for a perfect fit with our high steer arms
4th bolt hole for high steer arms increases clamping force and sheer strength (3 hole high steer arms still fit).
3/8"" thickness added to flat top of the knuckle for high steer tie rod to leaf spring clearance
Cast-in DUAL steering stops eliminate bent stop bolts that can cause u-joint and axle failures
Powder coated bright orange for long lasting looks
Interchangeable with all factory and aftermarket Dana 44 components
Fully machined and ready for installation
Machined to clear CTM u-joints without removing the grease fittings
Machined from top to bottom on Dana 44, Corp 10 bolt is bottom to top.
Some info on our Dana 44 studs!
Sky's Off Road Design Dana 44 9/16" high steer stud kit.
The fact is, stock Dana studs were not designed for extreme use.
So we grabbed some chromoly bar and started making our own studs.
We start by cutting and threading the material, then it goes to heat treat for through hardening and then a black oxide coating is applied. The studs have a tensile strength of approx. 190kpi.
Conical washers were another hard to find item. We made our own, also out of chromoly. These conical washers will not distort like factory softer versions.
Steering Arm Info:
Our steering arms are CNC machined out of ASTM A572 Grade 50 steel. We previously have used 1018 steel, but switched to a more rigid material (A572). Grade 50 is a very strong low allow steel that fulfills our exceptionally high strength requirements, and is particularly strong for applications in which it is riveted or bolted. ASTM A572 Grade 50 is considered a ""workhorse"" grade and is widely used in many applications. Steel mills produce channel and heavy beams with Grade 50. It is commonly used in structural applications, heavy construction equipment, building structures, heavy duty anchoring systems, boom sections, structural steel shapes, and applications that require high strength per weight ratio.
*Tensile strength: 65,000 psi
*Yield strength: 50,000 psi
Made in the USA!
